Yamaha 90 User Manual

10
Basic components
EMU25796

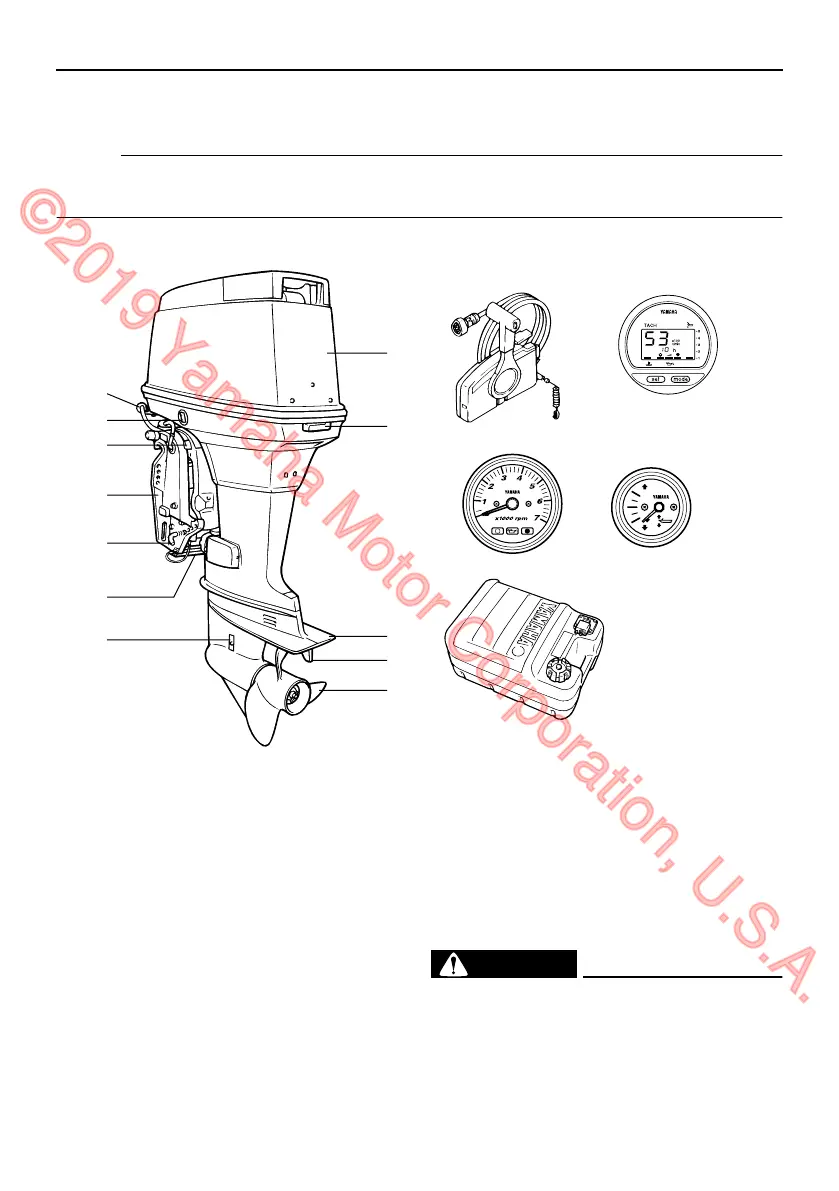

Main components
NOTE:
* May not be exactly as shown; also may not be included as standard equipment on all mod-
els.
90
EMU25802
Fuel tank
If your model was equipped with a portable
fuel tank, its function is as follows.
WARNING
EWM00020
The fuel tank supplied with this engine is
its dedicated fuel reservoir and must not
be used as a fuel storage container. Com-
mercial users should conform to relevant
1
10
2
13 14
15 16
17
3
4
5
6
7
8
9
12
11
ZMU05244
1. Top cowling
2. Top cowling lock lever
3. Anti-cavitation plate
4. Trim tab (anode)
5. Propeller*
6. Cooling water inlet
7. Anode
8. Tilt rod
9. Clamp bracket
10. Tilt support lever
11. Power trim and tilt switch
12. Flushing device*
13. Remote control box (side mount type)*
14. Digital tachometer*
15. Tachometer*
16. Trim meter*
17. Fuel tank*
©2019 Yamaha Motor Corporation, U.S.A.
