Maintenance
53
EMU29112
Checking wiring and connectors
●
Check that each grounding wire is properly
secured.
●
Check that each connector is engaged se-
curely.
EMU29120
Exhaust leakage
Start the engine and check that no exhaust
leaks from the joints between the exhaust
cover, cylinder head, and body cylinder.
EMU29130
Water leakage
Start the engine and check that no water
leaks from the joints between the exhaust
cover, cylinder head, and body cylinder.
EMU29153
Checking power trim and tilt system
WARNING
EWM00430
●
Never get under the lower unit while it
is tilted, even when the tilt support lever
is locked. Severe injury could occur if
the outboard motor accidentally falls.
●
Make sure no one is under the outboard
motor before performing this test.
1. Check the power trim and tilt unit for any
sign of oil leaks.
2. Operate each of the power trim and tilt
switches on the remote control and en-
gine bottom cowling (if equipped) to
check that all switches work.
3. Tilt the outboard motor up and check
that the tilt rod and trim rods are extend-
ed completely.
4. Use the tilt support lever to lock the mo-
tor in the up position. Operate the tilt
down switch briefly so the motor is sup-
ported by the tilt support lever.
5. Check that the tilt rod and trim rods are
free of corrosion or other flaws.
6. Activate the tilt-down switch until the trim
rods have retracted completely into the
cylinders.

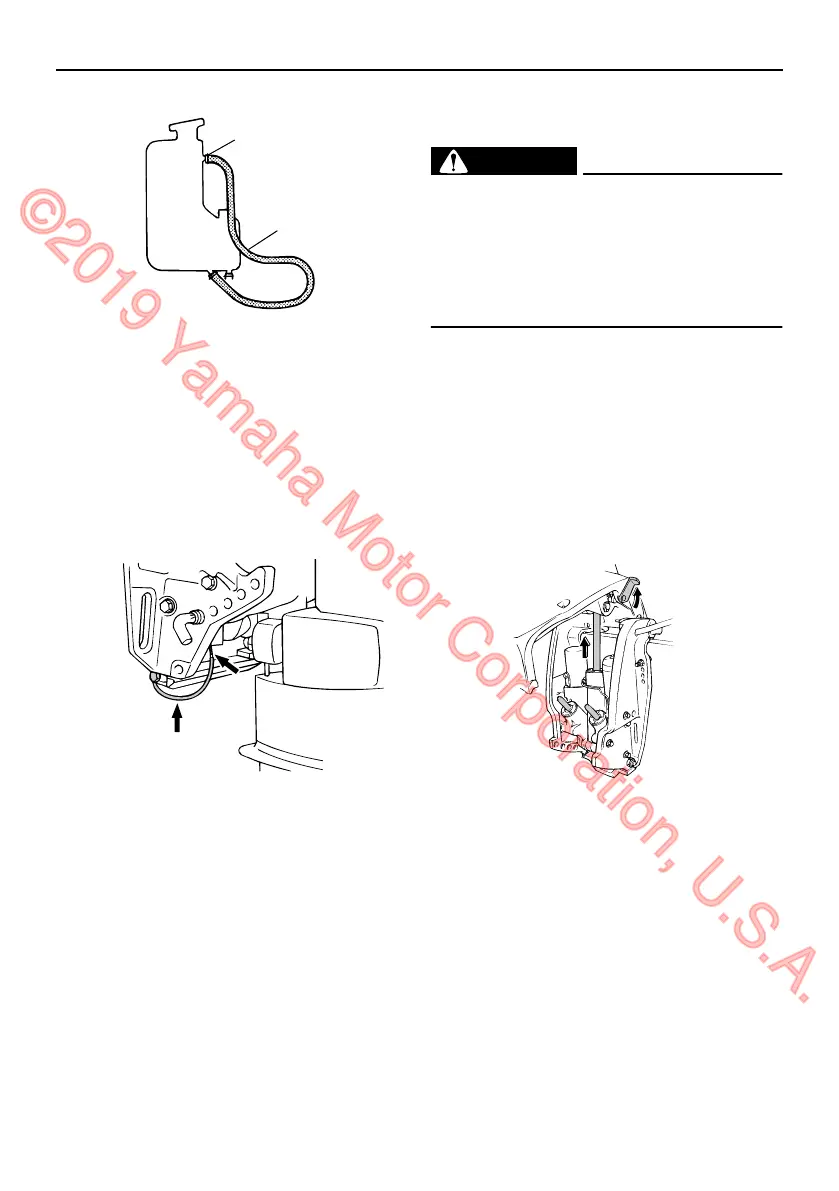

1. Drain hose
2. Filler neck side
ZMU03881
2
1
ZMU03882
ZMU03883
