Basic components
19
warning indicators only operate when the en-
gine is equipped with the appropriate func-
tions.
EMU26540
Oil level indicators (three indicators)
The indicators on the gauge show the status
of the oil level. For details on how to read the
indicators, see page 28.
CAUTION:
ECM00030
Do not operate the engine without oil. Se-
rious engine damage will occur.
EMU26550
Oil level indicator (digital type)
This indicator shows the engine oil level. If
the oil level falls below the lower limit, the
warning indicator will start to blink. For fur-
ther information, see page 21.
CAUTION:
ECM00030
Do not operate the engine without oil. Se-
rious engine damage will occur.
EMU26581
Overheat warning indicator (digital
type)
If the engine temperature rises too high, the
warning indicator will start to blink. For fur-
ther information on reading the indicator, see
page 20.
CAUTION:
ECM00050
Do not continue to run the engine if the
overheat warning indicator is on. Serious
engine damage will occur.
EMU26610
Trim meter
This gauge shows the trim angle of your out-
board motor.

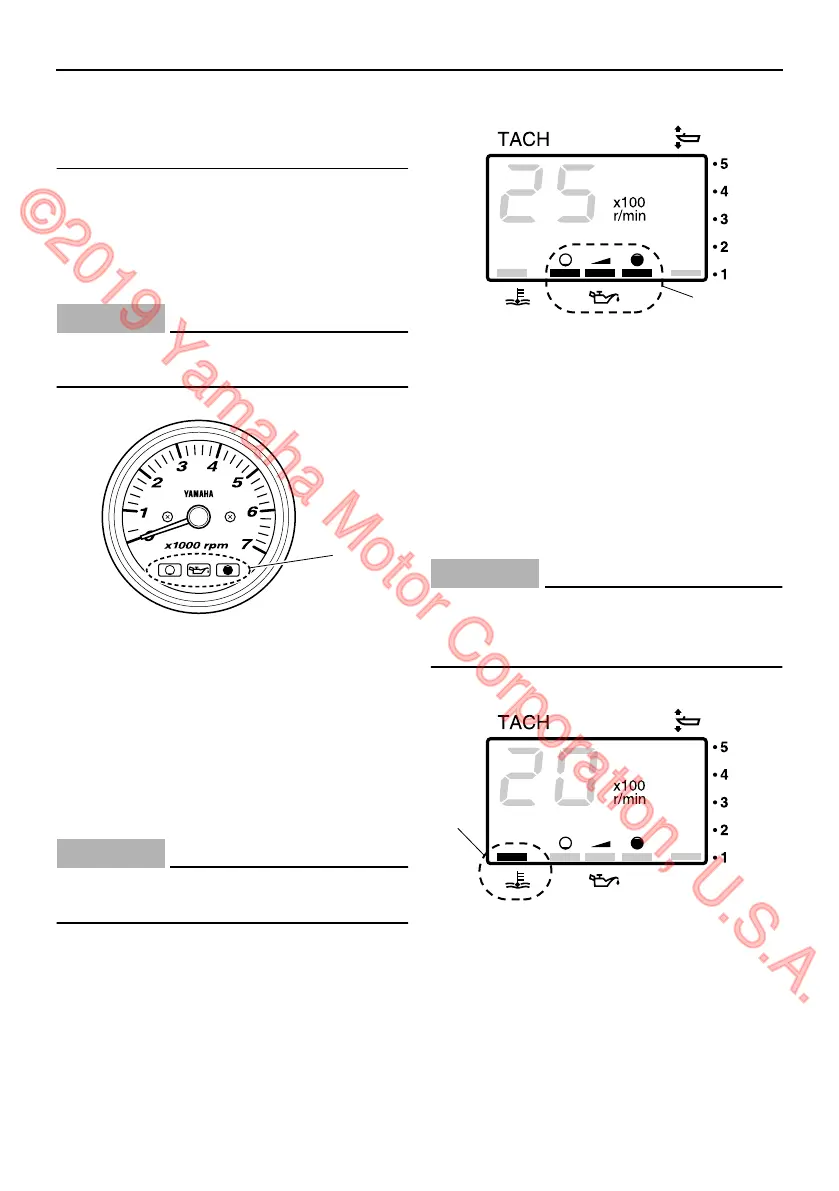

1. Oil level indicators
ZMU04580
1
1. Oil level indicator
1. Overheat warning indicator
1
ZMU01867
1
ZMU01868
