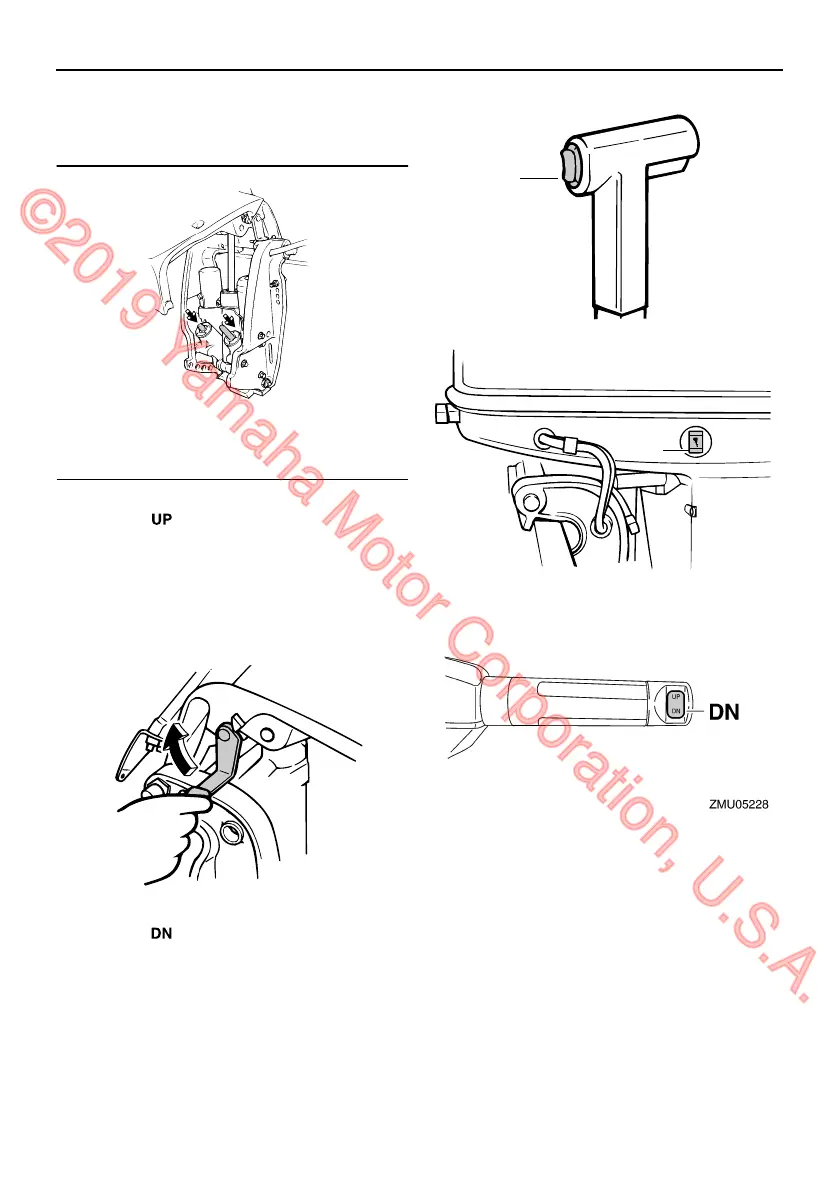

Procedure for tilting down
Power trim and tilt models / power tilt models
1. Push the power tilt / power trim and tilt
switch “” (up) until the outboard motor
is supported by the tilt rod and the tilt
support lever / tilt support knob becomes
free.
2. Release the tilt support lever or pull out
the tilt support knob.
3. Push the power tilt / power trim and tilt
switch “” (down) to lower the outboard
motor to the desired position.
EMU28060
Cruising in shallow water
The outboard motor can be tilted up partially
to allow operation in shallow water.
EMU28090
Power trim and tilt models / power tilt
models
The outboard motor can be tilted up partially
ZMU03874
ZMU03875
DN
ZMU01936
UP
DN
DN
ZMU03876
