MPX100II
CONTROL UNIT
12
VT322800
VM772600
VT914000
VT188300
VR356300
VN635300
VM775900
VQ343200
VC362700
CB502030
EP630210
VF378100
VQ895400
VK528000
VT707600
VT706900
VQ717600

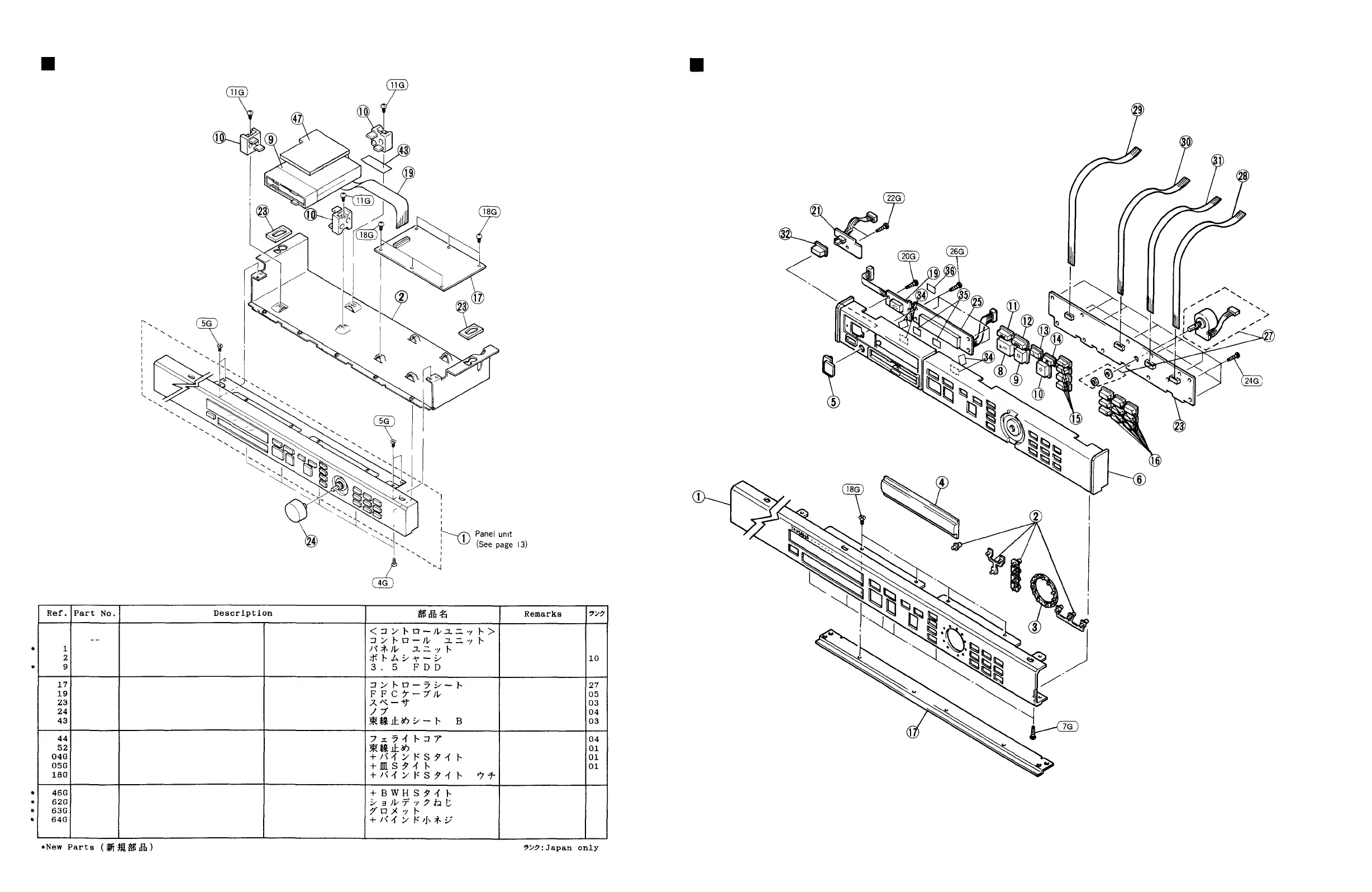

<CONTROL PANEL UNIT>
Control Panel Unit
Panel Unit
Bottom Chassis
Floppy Disk
Circuit Board
Cable
Spacer
Knob
Cable Holder
Ferrite Core
Cord Holder
Bind Head Tapping Screw-S
Flat Head Tapping Screw-S
Bind Head Tapping Screw-S
BWH Tapping Screw-S
Screw
Anti-Vibration Bush
Bind Head Screw
BI
MF355HD
CONTROLLER
26P 300mm
3 BI
FR25/15/12-1400L
S-75B
3.0X6 MFZN2BL
3.0X6 MFZN2Y
A3.0X6 MFZN2Y
0X10-8 MFZN2Y
3X7X3
G-462-1
2. 0X3 MFZN2Y
(VT18820)
MPX100II
PANEL UNIT
