MPX100II

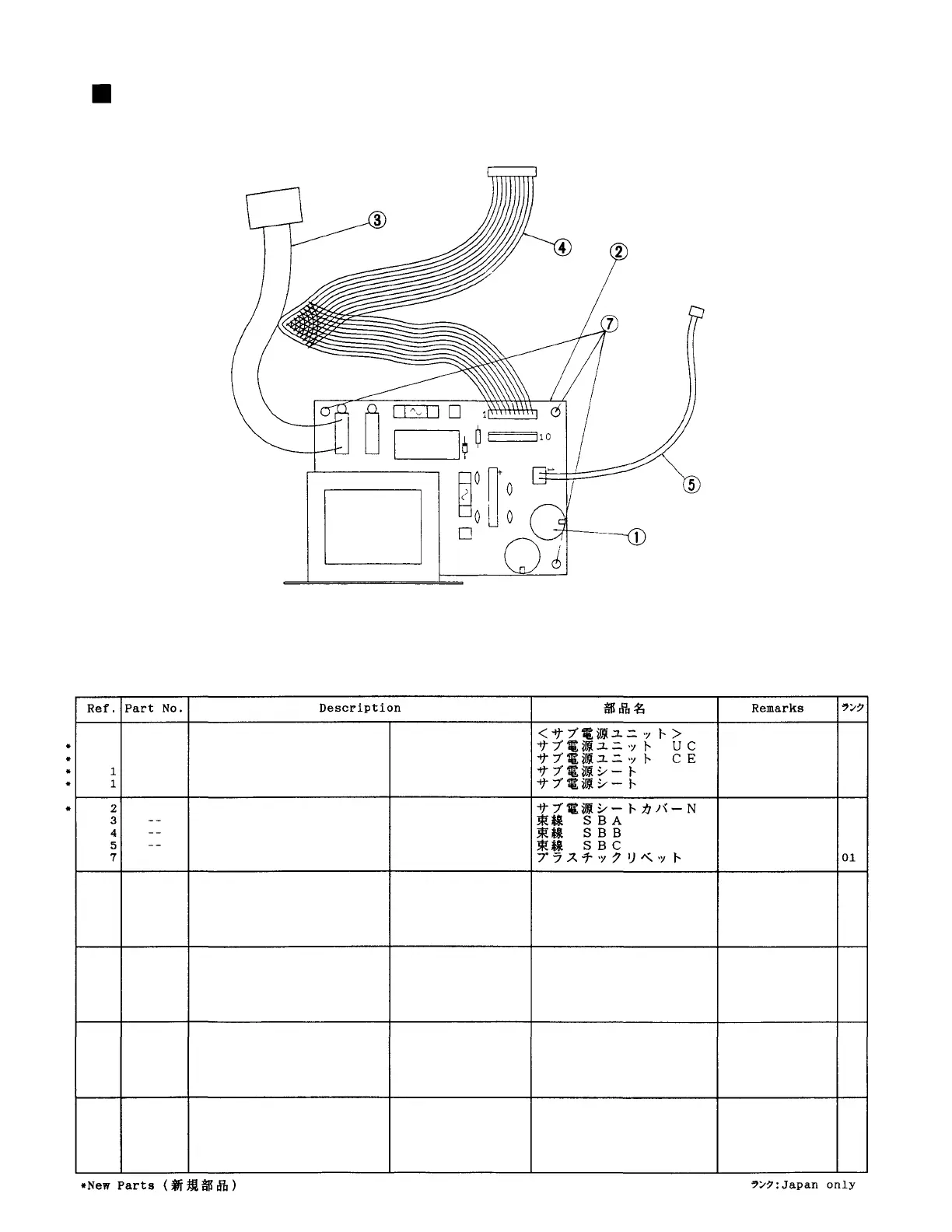

SUB-POWER SUPPLY UNIT
22
VT177900
VT178000
VT178800
VT178900
VT948100
CB815740
<SUB-POWER SUPPLY UNIT>
Sub-Power Supply Unit
Sub-Power Supply Unit
Circuit Board
Circuit Board
Cover
Connector Assembly
Connector Assembly
Connector Assembly
Plastic Rivet
120V
UC
230V CE
SUB-POWER SUPPLY
SUB-POWER SUPPLY
SBA
SBB
SBC
NRP-345
U,C
E,A,B
U,C
E,A,B
(VT10950)
(VT10960)
(VT10970)
