Master Section 11
Studio Manager for DM1000—Owner’s Manual

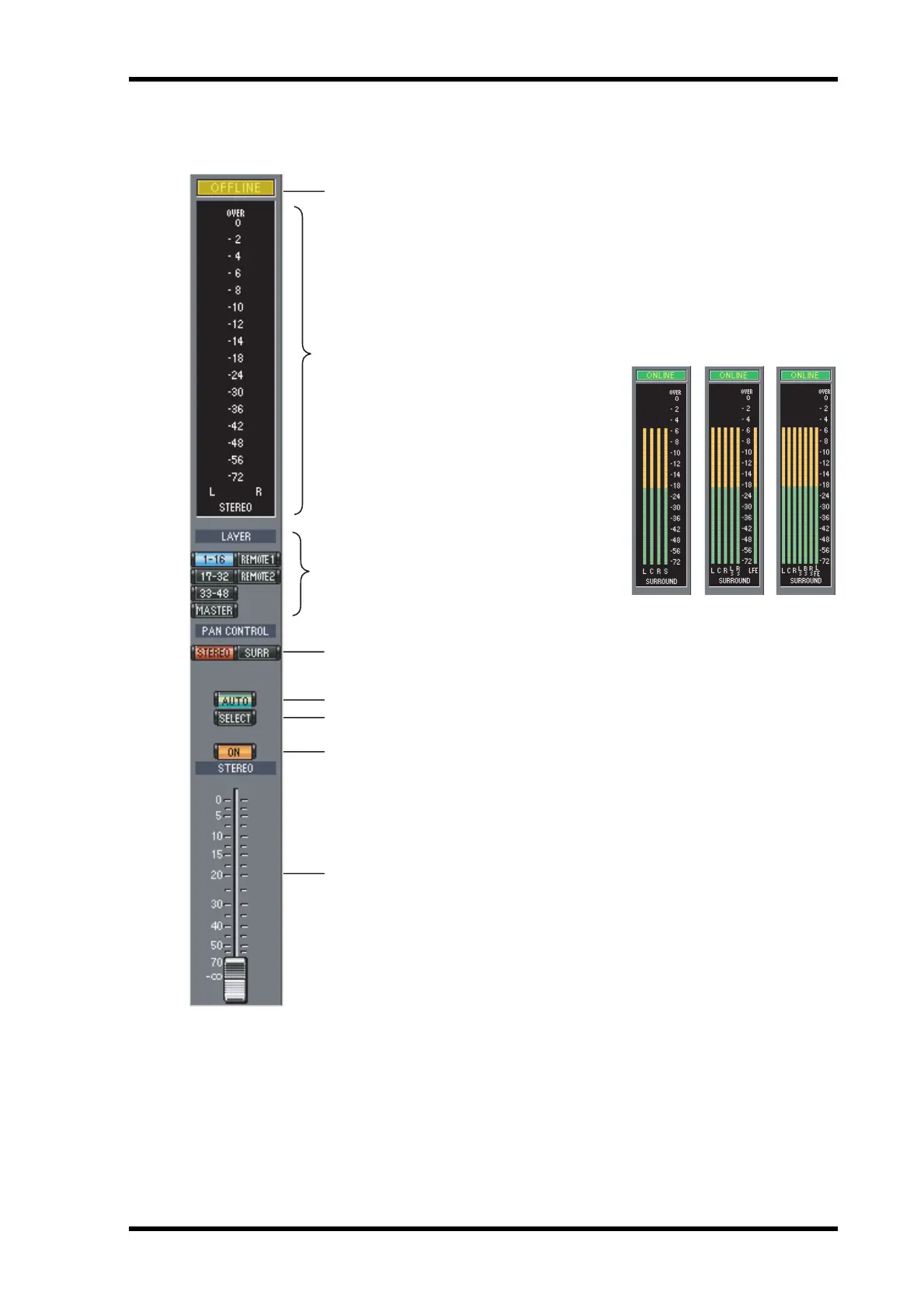

Master Section
A ONLINE/OFFLINE status indicator
This indicator shows whether Studio Manager is online or
offline.
B Meters
These meters display the output level of the Stereo Out when
PAN CONTROL is set to “STEREO,” or the Bus Outs used for
surround processing when PAN CONTROL is set to “SURR.”
The Meters in 3-1, 5.1 and 6.1 Surround modes are shown
below.
C LAYER buttons
These buttons are used to select the Layers.
D PAN CONTROL
These buttons are used to select either “STEREO” (Stereo mode)
or “SURR” (Surround mode). The Pan control on the Input
Channels is a rotary control when “STEREO” is selected, and a
dot on a pan graph when “SURR” is selected.
E AUTO button
This button displays the Automix status of the Stereo Out.
F SELECT button
This button is used to select the Stereo Out. If it’s clicked while
the Remote Layer is selected, it will light up, but the Stereo Out
will not appear in the Selected Channel window.
G ON button
This button turns the Stereo Out on and off. It appears orange
while the Stereo Out is on.
H Channel fader
This is the Stereo Out fader.
1
2
3
5
6
7
8
4
3-1 5.1 6.1
To Next Page
