INSERT PATCH Page 25
Studio Manager for DM1000—Owner’s Manual

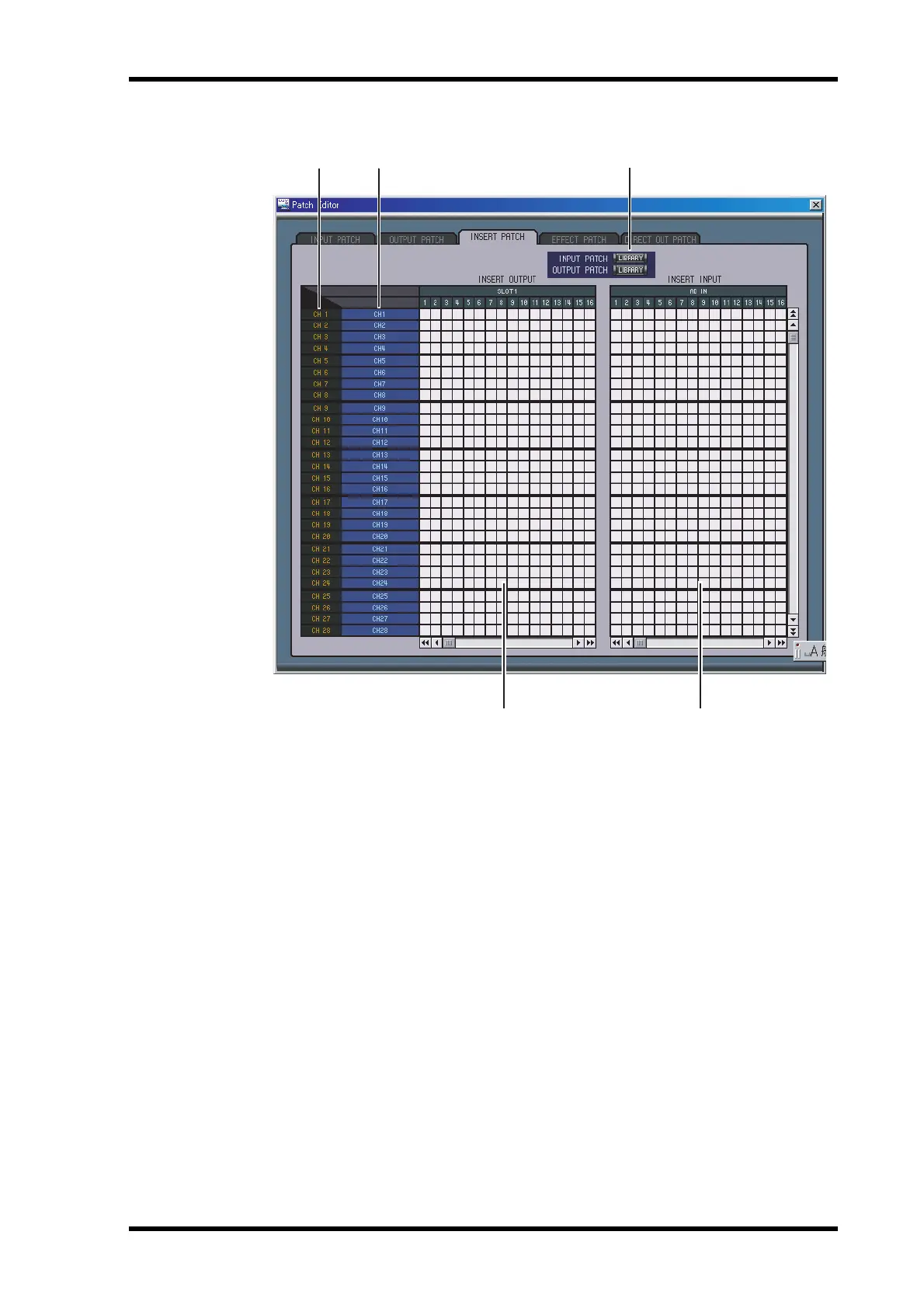

INSERT PATCH Page
A Channel IDs
These are the Channel IDs.
B Long channel names
These are the Channel long names. To edit a name, click it and type.
C LIBRARY buttons
These buttons open the Input and Output Patch Library windows.
D Insert Out Patchbay
This patchbay is used to patch output ports to the Insert Outs of Input Channels, Bus Outs,
Aux Sends, and the Stereo Out. Active patches are indicated by a red dot. To make a patch,
click a square. To unpatch, click a red dot.
E Insert In Patchbay
This patchbay is used to patch input ports to the Insert Ins of Input Channels, Bus Outs,
Aux Sends, and the Stereo Out. Active patches are indicated by a blue dot. To make a patch,
click a square. To unpatch, click a blue dot.
4
5
12
3
To Next Page
