5-5
E
EMU00419
POWER TRIM/TILT WILL NOT
OPERATE
If the engine cannot be tilted up or down
with the power trim and tilt because of a dis-
charged battery or a failure with the power
trim and tilt unit, the engine can be tilted
manually.

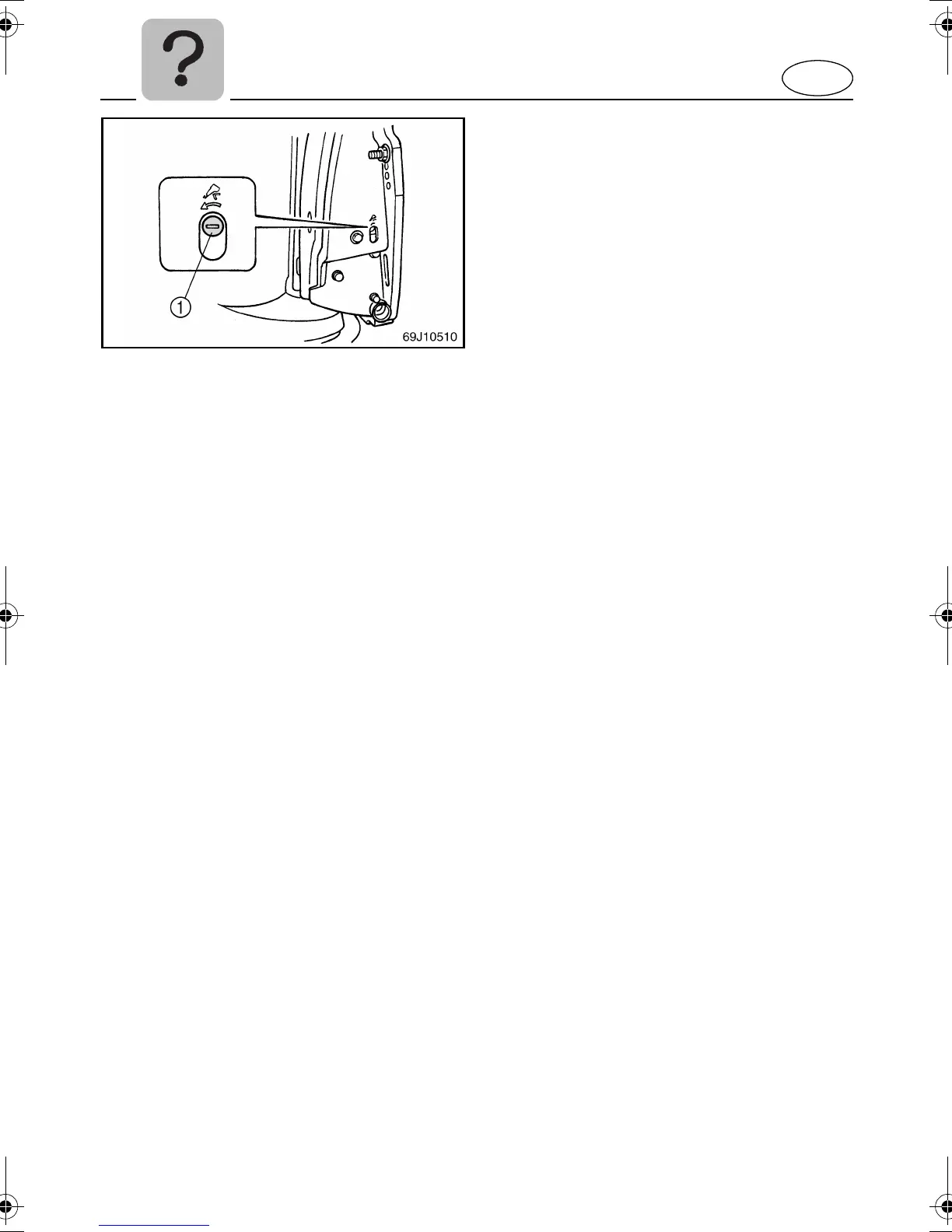

1
Manual valve screw
EMU00421¯
1) Loosen the manual valve screw counter-
clockwise until it stops.
2) Put the engine in the desired position,
then tighten the manual valve screw
clockwise.
