OPERATIONS OF CONTROLS
AND
OTHER FUNCTIONS
EMU01273
REMOTE CONTROL
Both the shifter and the throttle are actuated
by the remote control lever. In addition, the
electrical switches are mounted on the
remote control box.

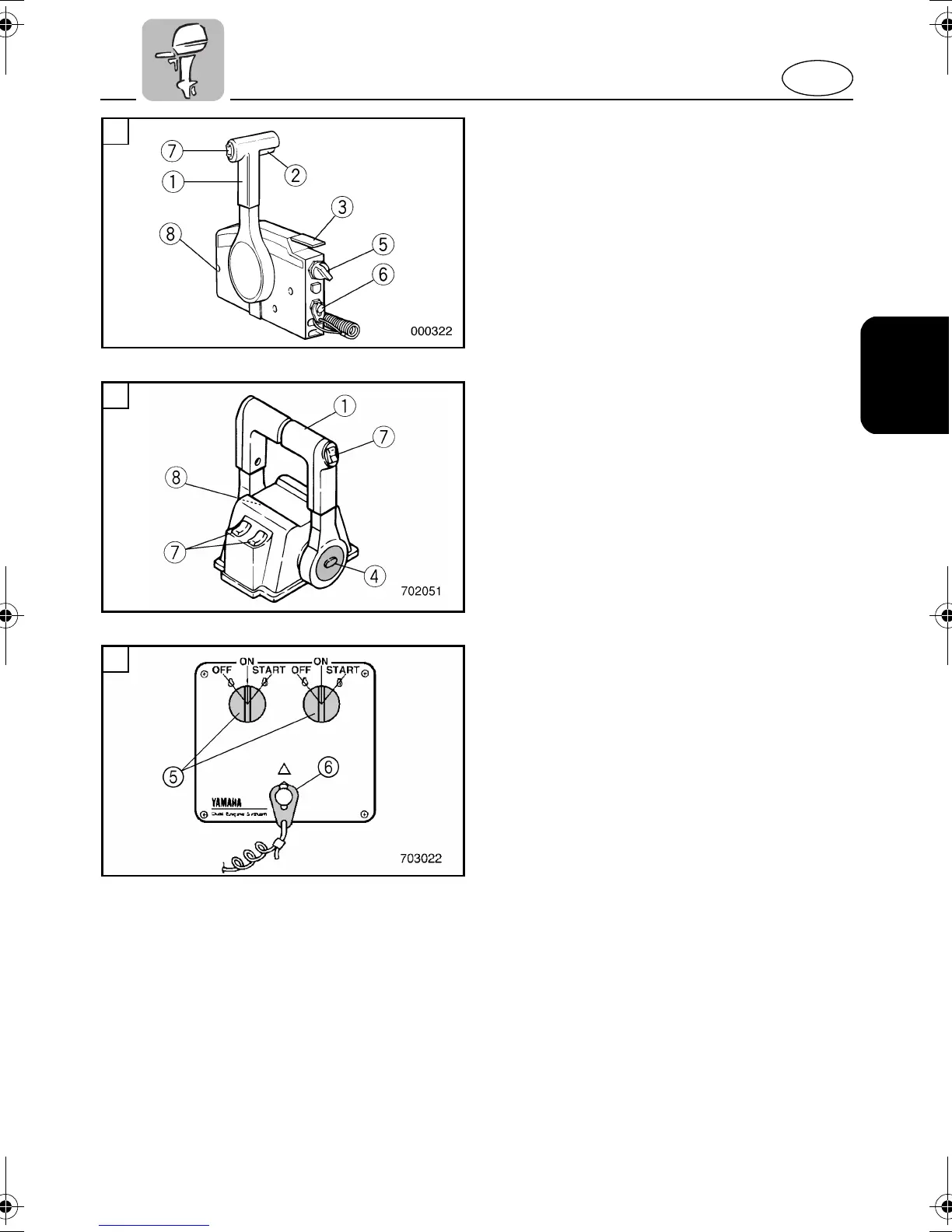

È
Side mount remote control box
É
Binnacle mount remote control box
Ê
Switch panel (for use with
É
)
1
Remote control lever
2
Neutral interlock trigger
3
Neutral throttle lever
4
Free accelerator
5
Main switch
6
Engine stop lanyard switch
7
Power trim/tilt switch
8
Throttle friction adjusting screw
