Yamaha F200C User Manual

3-14
E
EMU01670

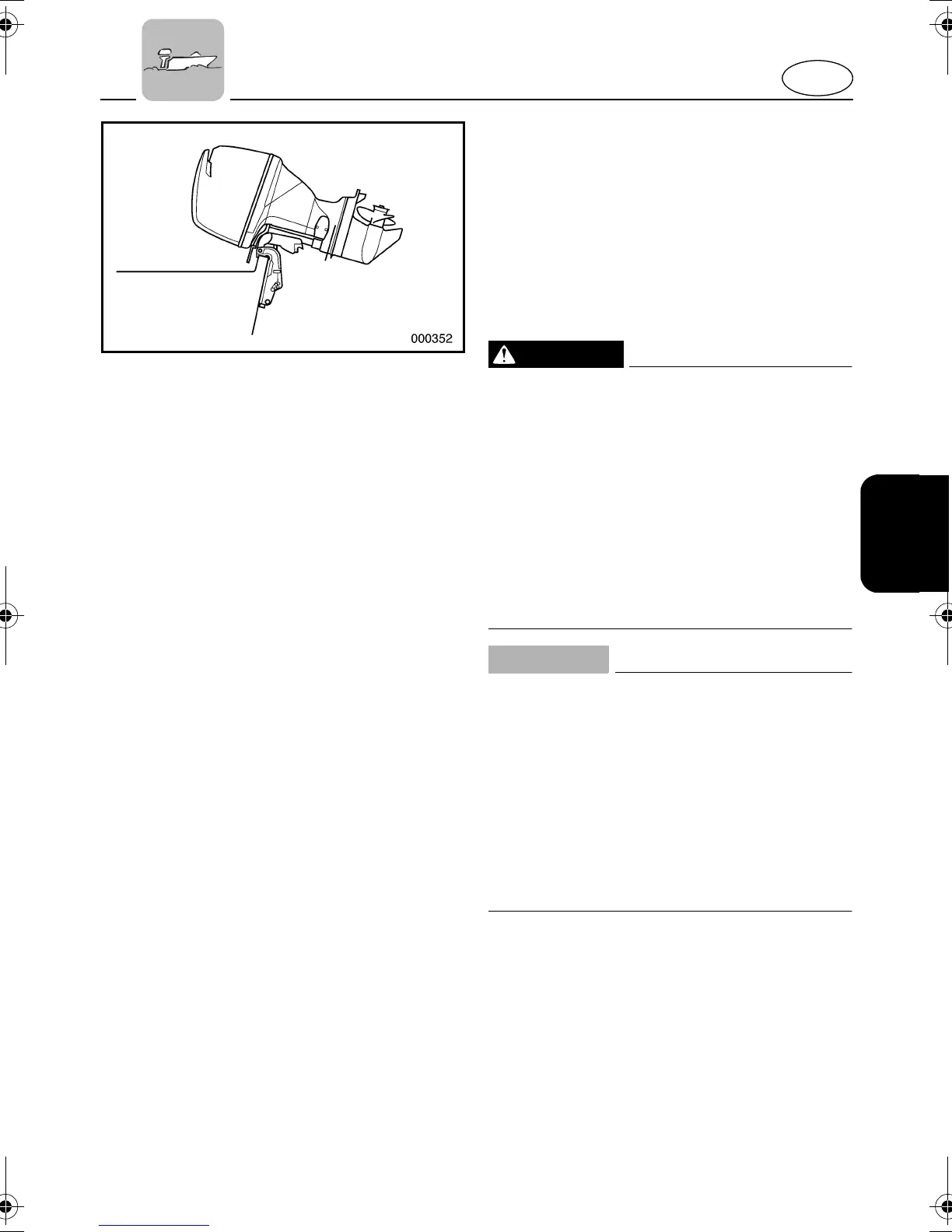

TILTING UP/DOWN
If the engine will be stopped for some time,
or if the boat is moored in shallows, the
engine should be tilted up to protect the pro-
peller and casing from damage by collision
with obstructions, and also to reduce salt
corrosion.
WARNING
@
●
Be sure all people are clear of the out-
board motor when adjusting the tilt
angle, also be careful not to pinch any
body parts between the drive unit and
engine bracket.
●
Leaking fuel is a fire hazard. Discon-
nect the fuel line or close the fuel cock
if the engine will be tilted for more than
a few minutes. Otherwise, fuel may
leak. (If the fuel connector is provided
on the motor.)
@
CAUTION:
@
●
Before tilting the motor, follow the pro-
cedures under “STOPPING ENGINE”.
Never tilt the motor while the engine is
running. Severe damage from over-
heating can result.
●
To prevent the cooling water passages
from becoming frozen when the ambi-
ent temperature is 5°C or below, tilt up
the motor after it has been stopped 30
seconds or more.
@
U69J13.book Page 14 Thursday, March 20, 2003 10:48 AM

Yamaha F200C Specifications

General

Max Power Output	200 hp
Prop Shaft Horsepower	200 hp
Full Throttle RPM Range	5000-6000 rpm
Alternator Output at W.O.T.	50A
Compression Ratio	10.3:1
Exhaust	Through Propeller
Lubrication	Wet Sump
Ignition	TCI (Transistor Controlled Ignition)
Starting System	Electric
Gear Ratio	1.86:1
Gear Shift	F-N-R
C.A.R.B. Rating	3-Star
Steering	Remote
Displacement	2785 cc
Fuel Induction System	Electronic Fuel Injection (EFI)
Recommended Engine Oil	Yamalube 4M
Recommended Fuel Filter	Yamaha Fuel/Water Separating Filter (10 Micron)
Engine Type	4-Stroke, DOHC, 16-Valve In-Line 4
Bore x Stroke	96.0 x 96.2 mm
Fuel	Unleaded gasoline (87 octane minimum)
Cooling	Water-cooled, Thermostatic Control
