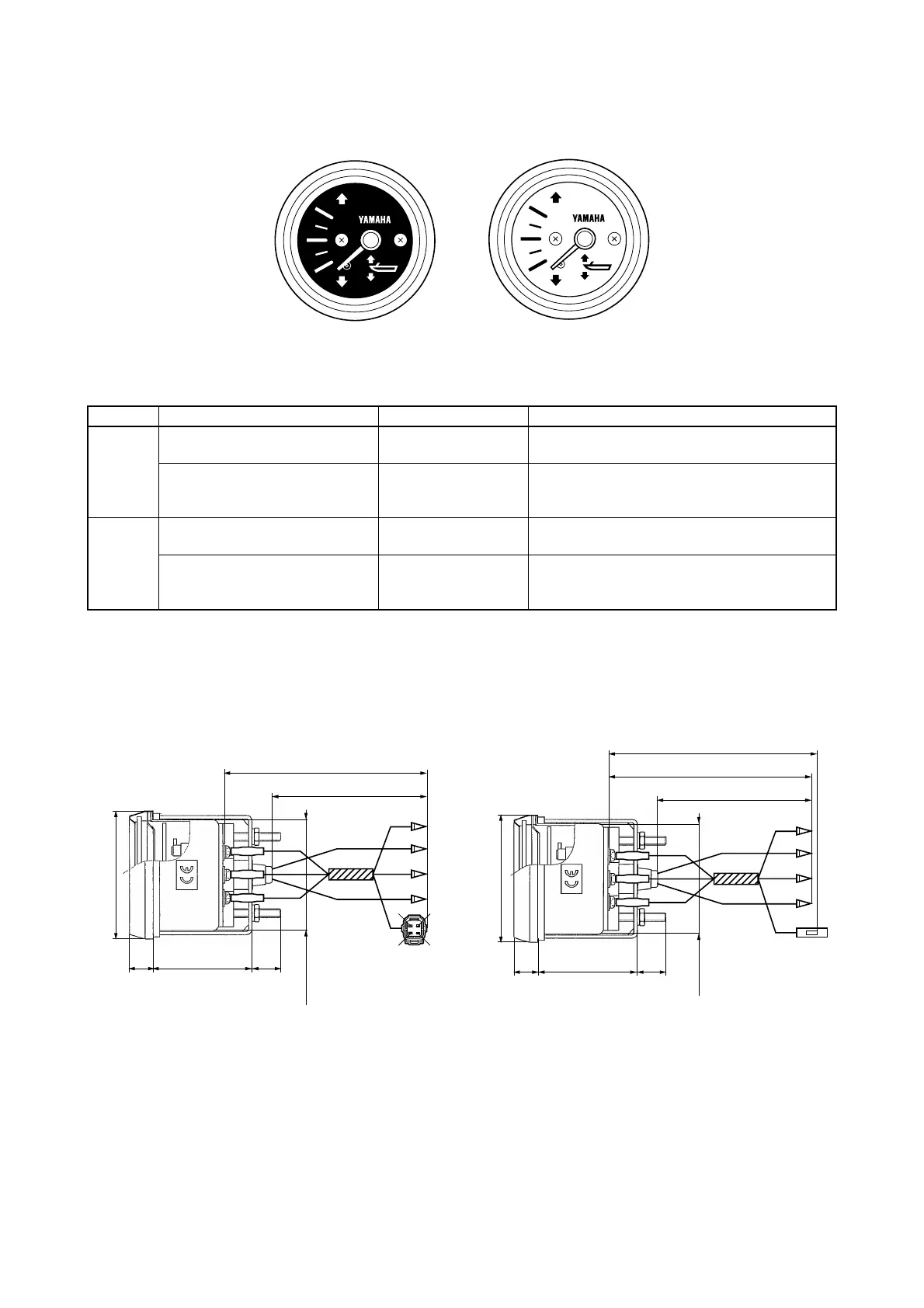

ANALOG TRIM METER
The trim meter shows the trim angle of the outboard motor.
ANALOG TRIM METER APPLICATIONS
ANALOG TRIM METER DIMENSIONS
TRIM SENDER ADJUSTMENT
For a down position adjustment, loosen the trim sender screw and make an adjustment so that the
needle aligns with the marking line indicating “DOWN”.
Ref. No. Description Part No. Applicable model
1
4-pin coupler
BLK panel
6Y7-83670-00 Premixed 40 (3-cyl)-225 w/ PTT, 250G, L250G
Bullet connector
BLK panel
6Y7-83670-40
40 (3-cyl)-300 w/ oil injection, PTT (except
250G & L250G), F30-F250 [6P2] w/ PTT
Using as a set with tachometer, 6Y7-83540-80
2
4-pin coupler
WHT panel
6Y7-83670-20 Premixed 40 (3-cyl)-225 w/ PTT, 250G, L250G
Bullet connector
WHT panel
6Y7-83670-50
40 (3-cyl)-300 w/ oil injection, PTT (except
250G & L250G), F30-F250 [6P2] w/ PTT
Using as a set with tachometer, 6Y7-83540-90
21
60 (2.36)
11 (0.43) 13.7
(0.54)
46.6 (1.83)
52 (2.05)
200 (7.87)
200 (7.87)
B
B
L
Y
x
x
B
P
60 (2.36)
11 (0.43) 13.7
(0.54)
46.6 (1.83)
52 (2.05)
200 (7.87)
300 (11.8)
200 (7.87)
B
P
B
L
Y
With 4-pin coupler With bullet connector
mm (in.)mm (in.)
