5-28

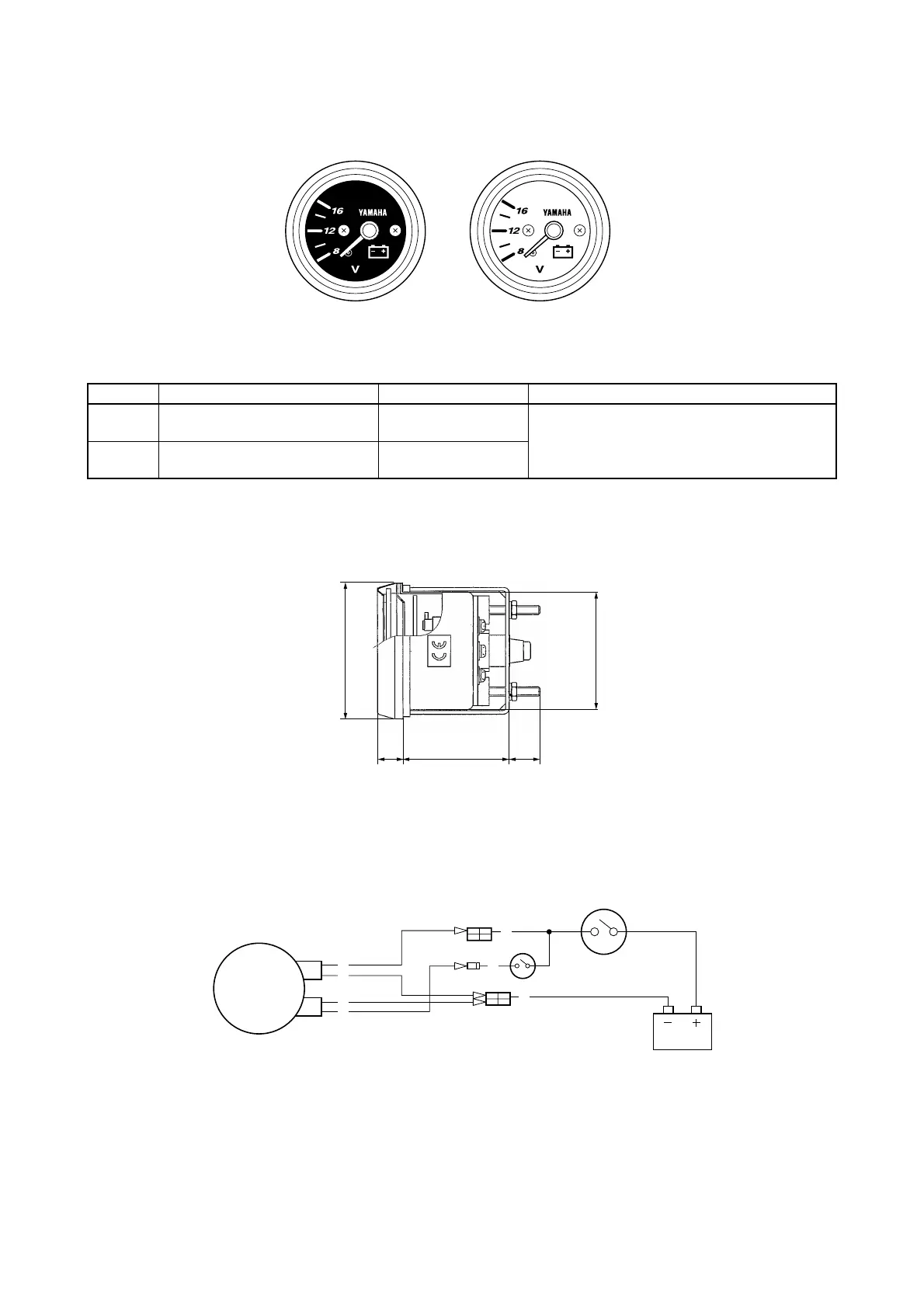

VOLTAGE METER

The voltage meter provides information about the charging condition of the battery.

VOLTAGE METER APPLICATIONS

VOLTAGE METER DIMENSIONS

WIRING THE VOLTAGE METER

Ref. No. Description Part No. Applicable model

1

DC 12 volts power supply

Black panel

6Y7-83503-00

All electrical start models

2

DC 12 volts power supply

White panel

6Y7-83503-10

12

60 (2.36)

11 (0.43)

46.6 (1.83)

13.7 (0.54)

52 (2.05)

mm (in.)

Y

B

B

L

Battery

IG switch

Voltage meter

Batt.+12V

Y

B

Lamp switch

L
