INSTRUMENT AND CONTROL FUNCTIONS
3-11
3
EAU26821
Brake lever
The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.
The brake lever is equipped with a po-
sition adjusting dial. To adjust the dis-
tance between the brake lever and the
handlebar grip, turn the adjusting dial
while holding the lever pushed away
from the handlebar grip. Make sure that
the appropriate setting on the adjusting
dial is aligned with the “” mark on the
brake lever.
EAU12941
Brake pedal
The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.
EAU13070
Fuel tank cap
To open the fuel tank cap
Open the fuel tank cap lock cover, in-
sert the key into the lock, and then turn
it 1/4 turn clockwise. The lock will be re-
leased and the fuel tank cap can be
opened.
To close the fuel tank cap
1. Push the fuel tank cap into position
with the key inserted in the lock.
2. Turn the key counterclockwise to
the original position, remove it, and
then close the lock cover.

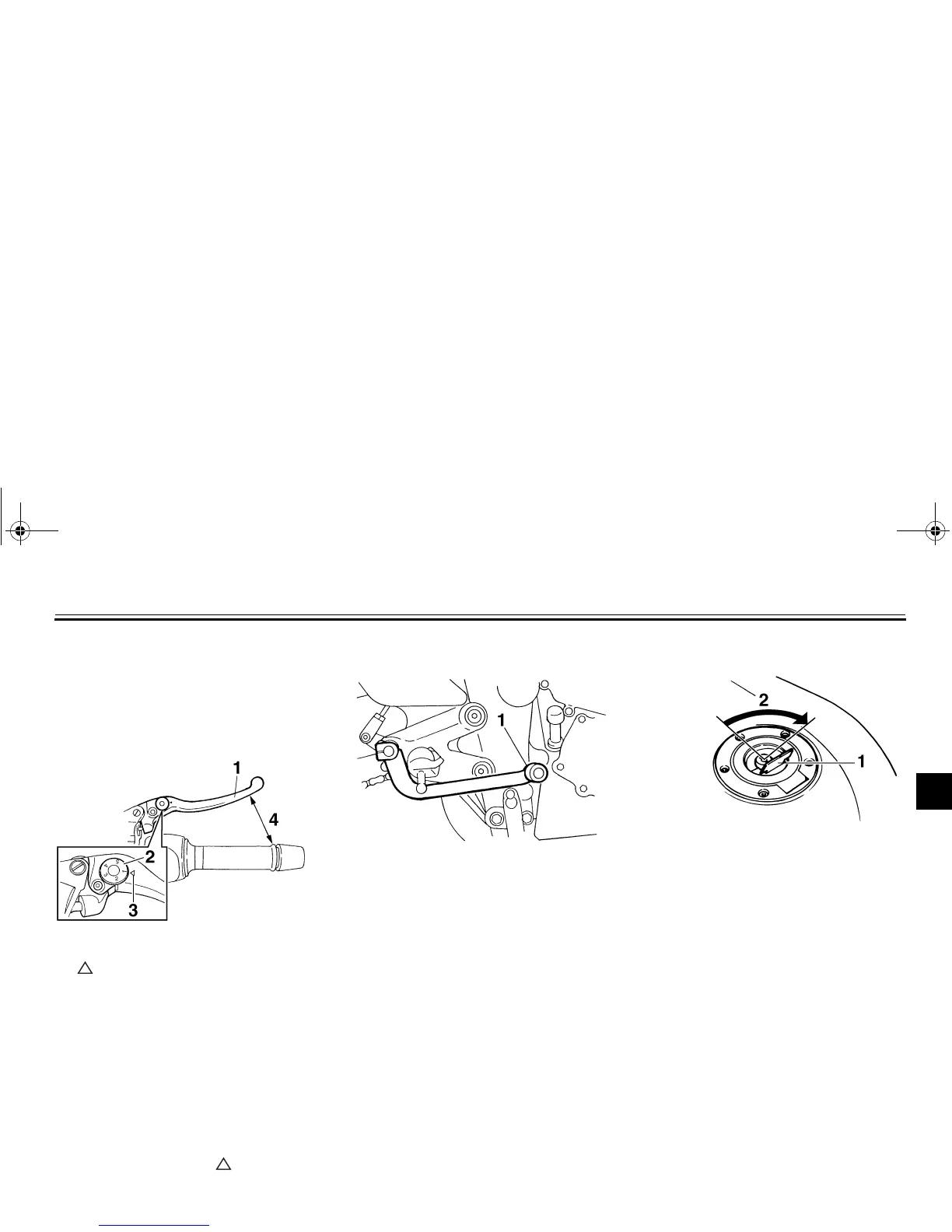

1. Brake lever
2. Brake lever position adjusting dial
3. “” mark
4. Distance between brake lever and handlebar
grip
1. Brake pedal 1. Fuel tank cap lock cover
2. Unlock.
5VXE1.book Page 11 Monday, February 9, 2004 5:39 PM

Yamaha Fazer FZ6-S Specifications

General

Bore x Stroke	65.5 mm x 44.5 mm
Compression Ratio	12.2:1
Fuel System	Fuel Injection
Ignition	Digital TCI
Transmission	6-speed
Front Suspension	Telescopic fork
Rear Brakes	Single disc
Front Tire	120/70-ZR17
Rear Tire	180/55-ZR17
Seat Height	795 mm
Cooling	Liquid-cooled
Final Drive	Chain
Front Brakes Type	Hydraulic dual disc
Rear Brakes Type	Hydraulic single disc
Length	2, 095 mm
Width	750 mm
Wheelbase	1, 440 mm
Front Brakes	Dual disc
Fuel Capacity	19.4 L
Power	98 hp @ 12, 000 rpm
Torque	63.1 Nm @ 10, 000 rpm
Height	1, 215 mm
Engine Type	600cc, liquid-cooled, 4-stroke, DOHC, 16-valve, inline-4
