Yamaha Fazer FZ6-S User Manual

PERIODIC MAINTENANCE AND MINOR REPAIR
6-19
6
EAU22270

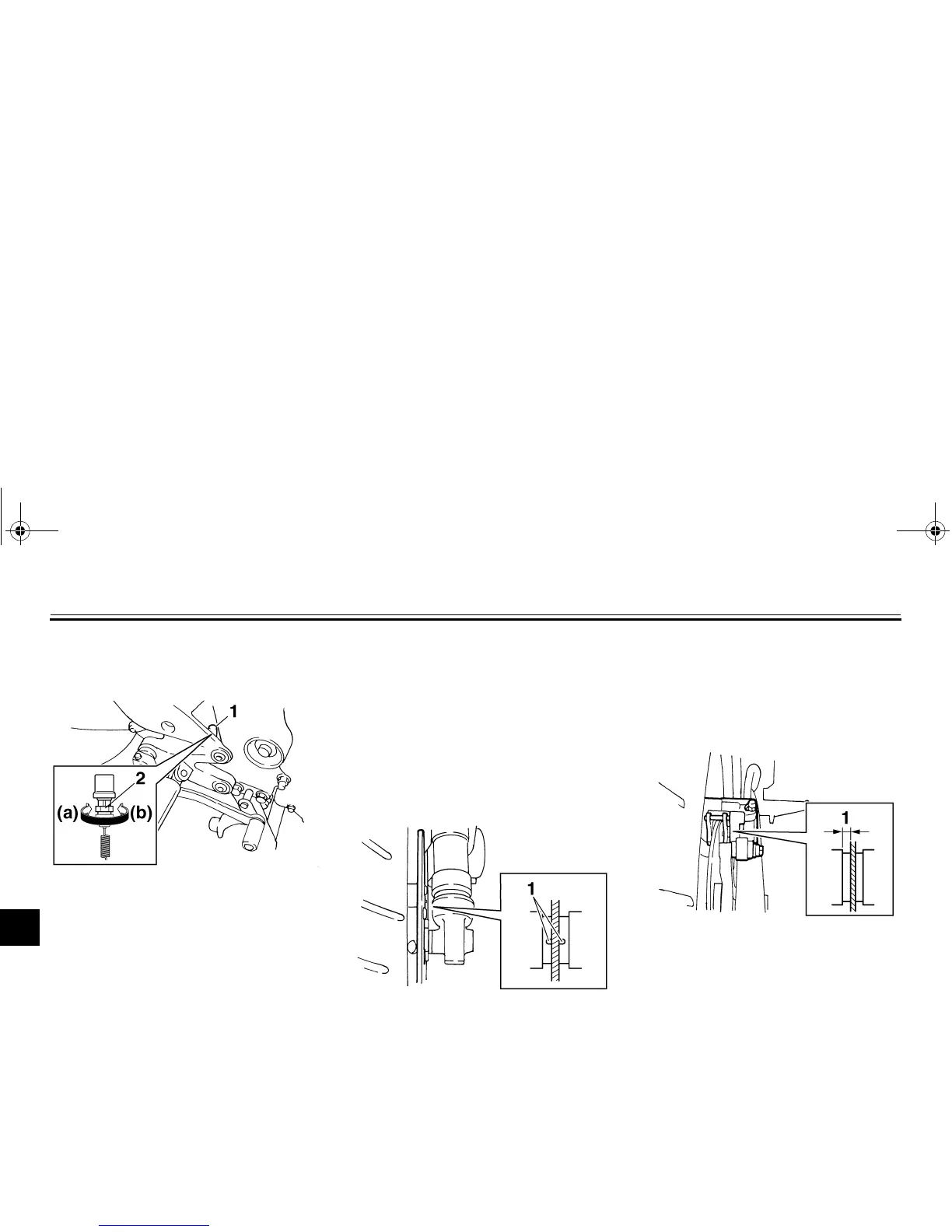

Adjusting the rear brake light
switch
The rear brake light switch, which is ac-
tivated by the brake pedal, is properly
adjusted when the brake light comes
on just before braking takes effect. If
necessary, adjust the brake light switch
as follows.
Turn the adjusting nut while holding the
rear brake light switch in place. To
make the brake light come on earlier,
turn the adjusting nut in direction (a). To
make the brake light come on later, turn
the adjusting nut in direction (b).
EAU22390
Checking the front and rear
brake pads
The front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
EAU22420
Front brake pads
Each front brake pad is provided with a
wear indicator groove, which allows
you to check the brake pad wear with-
out having to disassemble the brake.
To check the brake pad wear, check
the wear indicator groove. If a brake
pad has worn to the point that the wear
indicator groove has almost disap-
peared, have a Yamaha dealer replace
the brake pads as a set.
EAU22500
Rear brake pads
Check each rear brake pad for damage
and measure the lining thickness. If a
brake pad is damaged or if the lining
thickness is less than 1.0 mm (0.04 in),
have a Yamaha dealer replace the
brake pads as a set.
1. Rear brake light switch
2. Rear brake light switch adjusting nut
1. Brake pad wear indicator groove
1. Lining thickness
5VXE1.book Page 19 Monday, February 9, 2004 5:39 PM

Yamaha Fazer FZ6-S Specifications

General

Bore x Stroke	65.5 mm x 44.5 mm
Compression Ratio	12.2:1
Fuel System	Fuel Injection
Ignition	Digital TCI
Transmission	6-speed
Front Suspension	Telescopic fork
Rear Brakes	Single disc
Front Tire	120/70-ZR17
Rear Tire	180/55-ZR17
Seat Height	795 mm
Cooling	Liquid-cooled
Final Drive	Chain
Front Brakes Type	Hydraulic dual disc
Rear Brakes Type	Hydraulic single disc
Length	2, 095 mm
Width	750 mm
Wheelbase	1, 440 mm
Front Brakes	Dual disc
Fuel Capacity	19.4 L
Power	98 hp @ 12, 000 rpm
Torque	63.1 Nm @ 10, 000 rpm
Height	1, 215 mm
Engine Type	600cc, liquid-cooled, 4-stroke, DOHC, 16-valve, inline-4
