PERIODIC MAINTENANCE AND MINOR REPAIR
6-32
6
3. Remove the defective bulb by pull-
ing it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with the
bulb) by pushing it in.
6. Install the license plate light unit by
installing the screws.
EAU32830
Replacing an auxiliary light
bulb
This model is equipped with two auxil-
iary lights. If an auxiliary light bulb burns
out, replace it as follows.
1. Remove panel B (if replacing the
left auxiliary light bulb) or panel A
(if replacing the right auxiliary light
bulb). (See page 6-5.)
2. Remove the auxiliary light socket
(together with the coupler) by pull-
ing it out.
3. Remove the defective bulb by pull-
ing it out.
4. Insert a new bulb into the socket.
5. Install the auxiliary light socket (to-
gether with the coupler) by push-
ing it in.

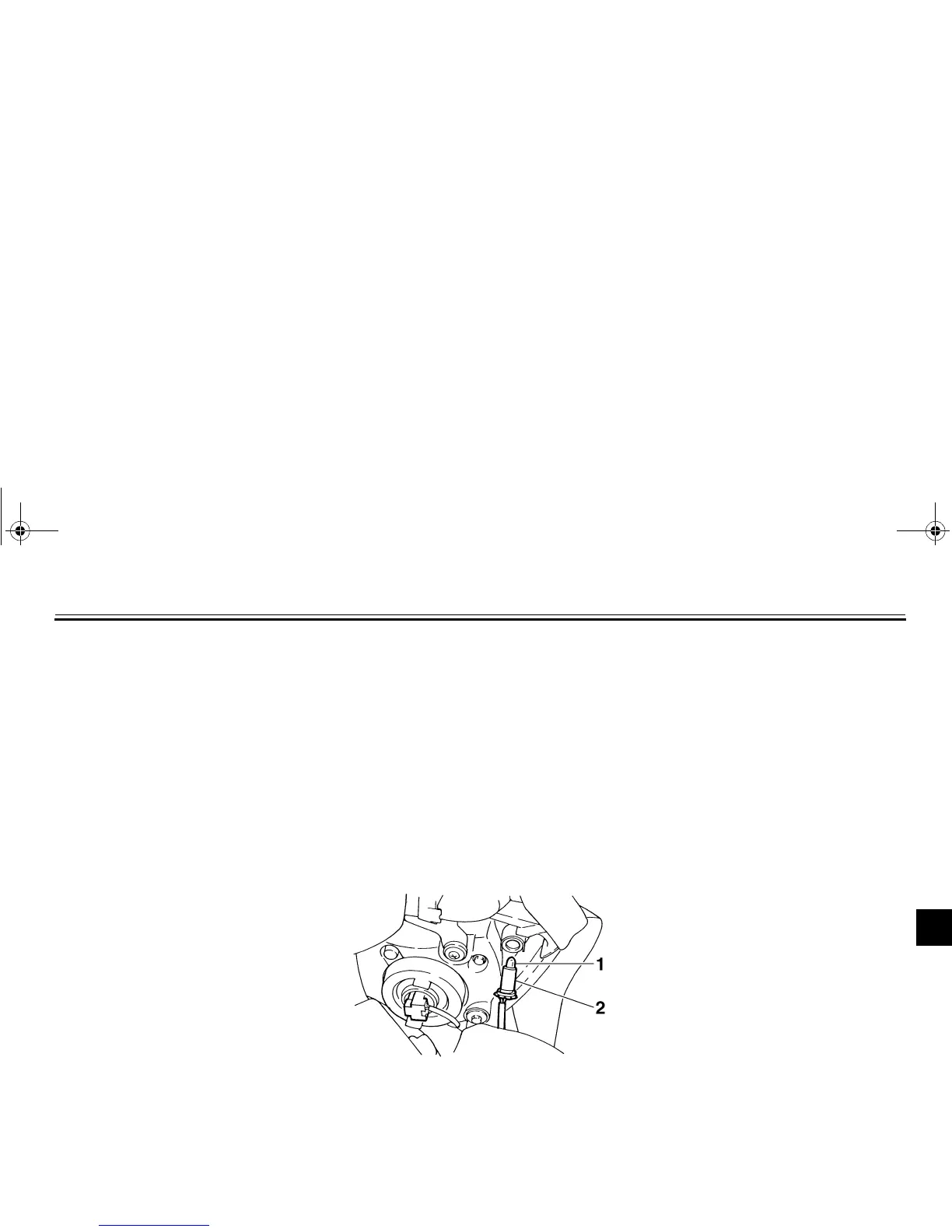

1. Auxiliary light bulb
2. Auxiliary light bulb socket
5VXE1.book Page 32 Monday, February 9, 2004 5:39 PM

Yamaha Fazer FZ6-S Specifications

General

Bore x Stroke	65.5 mm x 44.5 mm
Compression Ratio	12.2:1
Fuel System	Fuel Injection
Ignition	Digital TCI
Transmission	6-speed
Front Suspension	Telescopic fork
Rear Brakes	Single disc
Front Tire	120/70-ZR17
Rear Tire	180/55-ZR17
Seat Height	795 mm
Cooling	Liquid-cooled
Final Drive	Chain
Front Brakes Type	Hydraulic dual disc
Rear Brakes Type	Hydraulic single disc
Length	2, 095 mm
Width	750 mm
Wheelbase	1, 440 mm
Front Brakes	Dual disc
Fuel Capacity	19.4 L
Power	98 hp @ 12, 000 rpm
Torque	63.1 Nm @ 10, 000 rpm
Height	1, 215 mm
Engine Type	600cc, liquid-cooled, 4-stroke, DOHC, 16-valve, inline-4
