PERIODIC MAINTENANCE AND MINOR REPAIR
6-5
6
EAU18771
Removing and installing
panels

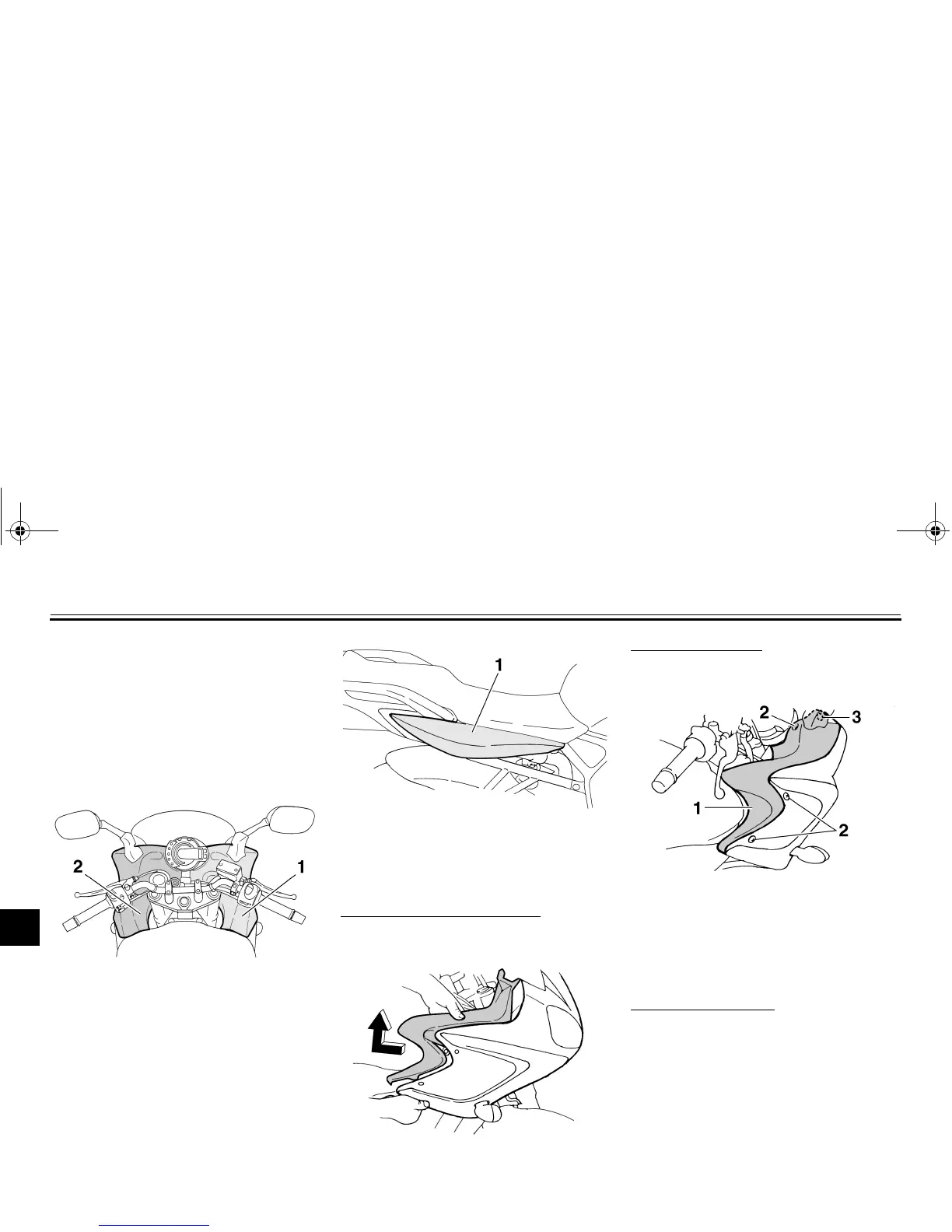

The panels shown need to be removed
to perform some of the maintenance
jobs described in this chapter. Refer to
this section each time a panel needs to
be removed and installed.
EAU32861
Panels A and B
To remove one of the panels
Remove the bolts, and the quick fasten-
er, and then pull the panel off as shown.
To install the panel
Place the panel in the original position,
install the quick fastener and the bolts.
EAU33020
Panel C
To remove the panel
1. Remove the seat. (See page
3-14.)
2. Remove the bolt, and then pull the
panel off as shown.
1. Panel A
2. Panel B
1. Panel C
1. Panel A
2. Bolt
3. Quick fastener
5VXE1.book Page 5 Monday, February 9, 2004 5:39 PM

Yamaha Fazer FZ6-S Specifications

General

Bore x Stroke	65.5 mm x 44.5 mm
Compression Ratio	12.2:1
Fuel System	Fuel Injection
Ignition	Digital TCI
Transmission	6-speed
Front Suspension	Telescopic fork
Rear Brakes	Single disc
Front Tire	120/70-ZR17
Rear Tire	180/55-ZR17
Seat Height	795 mm
Cooling	Liquid-cooled
Final Drive	Chain
Front Brakes Type	Hydraulic dual disc
Rear Brakes Type	Hydraulic single disc
Length	2, 095 mm
Width	750 mm
Wheelbase	1, 440 mm
Front Brakes	Dual disc
Fuel Capacity	19.4 L
Power	98 hp @ 12, 000 rpm
Torque	63.1 Nm @ 10, 000 rpm
Height	1, 215 mm
Engine Type	600cc, liquid-cooled, 4-stroke, DOHC, 16-valve, inline-4
