INSTRUMENT AND CONTROL FUNCTIONS
3-21
3
EAU59981
Helmet holding cable
A helmet holding cable is located on
the bottom of the passenger seat. Use
this cable in conjunction with the
screwdriver to secure a helmet to the
vehicle.
To secure a helmet with the helmet
holding cable
1. Remove the passenger seat. (See
page 3-19.)
2. Remove the screwdriver from its
holders on the passenger seat,
and then remove the helmet hold-
ing cable from the screwdriver.
TIP
When removing the screwdriver, slide
the screwdriver toward the “ ” mark
on the passenger seat.
3. Pass the helmet holding cable
through the buckle on the helmet
strap.
4. Hook the cable loops over the
screwdriver, install the screw-
driver by first inserting the screw-
driver into the holder with the “ ”
mark, and then slide the screw-
driver toward the holder with
the “ ” mark.
TIP
Make sure that the screwdriver is se-
curely positioned between its holders,
and then position the cable loops to-
ward the middle of the screwdriver be-
fore installing the passenger seat.
5. Install the passenger seat.
WARNING! Never ride with a
helmet attached to the helmet
holder, since the helmet may hit
objects, causing loss of control
and possibly an accident.
[EWA10162]

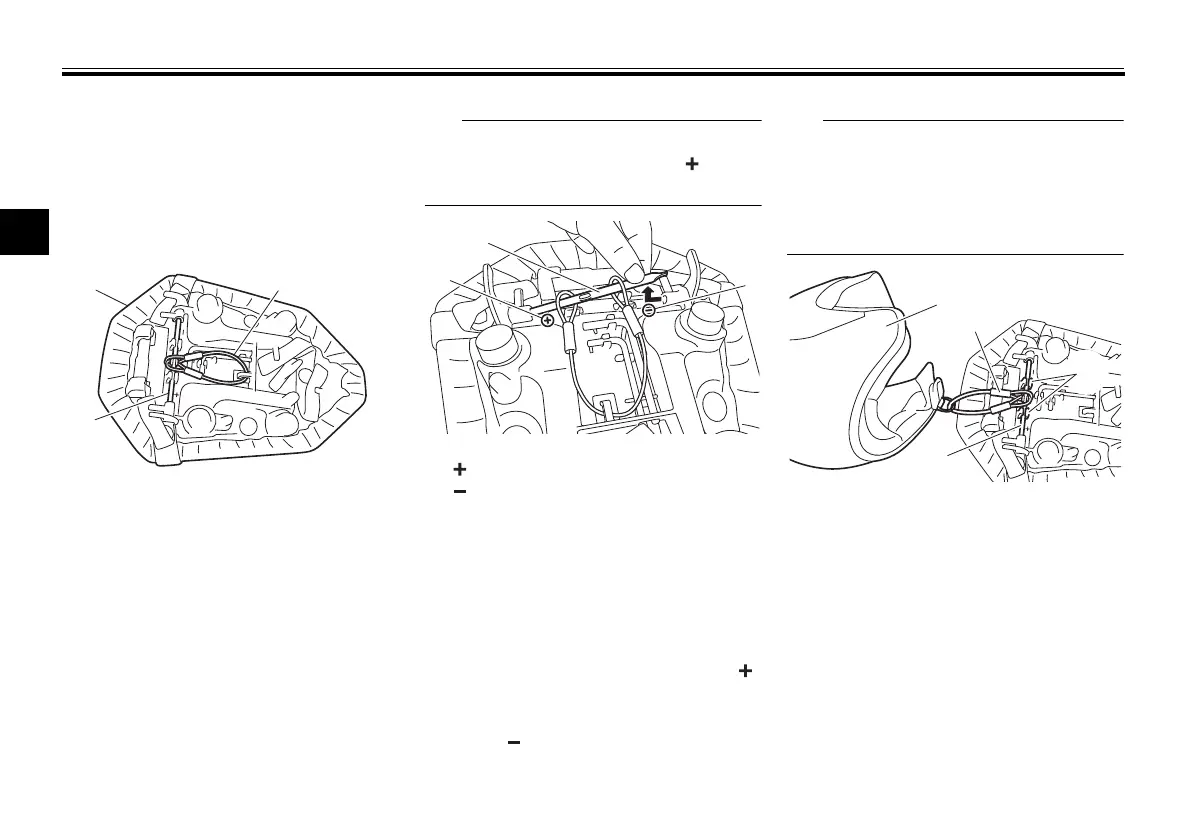

1. Passenger seat
2. Helmet holding cable
3. Screwdriver
1
2
3
1. Screwdriver
2. “ ” mark
3. “ ” mark
1
2
3
1. Helmet
2. Helmet holding cable
3. Screwdriver
4. Holder
1
2
3
4
U1WSE0E0.book Page 21 Wednesday, November 13, 2013 10:28 AM

Yamaha FZ-07 Specifications

General

Bore x Stroke	80.0mm x 68.6mm
Compression Ratio	11.5:1
Fuel Delivery	Fuel injection
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed; multiplate wet clutch
Final Drive	Chain
Front Suspension	41mm fork; 5.1-in travel
Rear Suspension	Single shock, adjustable preload; 5.1-in travel
Front Tire	120/70ZR17
Rear Tire	180/55ZR17
Length	82.1 in
Height	42.9 in
Seat Height	31.7 in
Wheelbase	55.1 in
Trail	3.5 in
Fuel Capacity	3.7 gal
Wet Weight	397 lb
Engine Type	689cc liquid-cooled DOHC 4-stroke; 4 valves per cylinder
Front Brakes	Dual 282mm hydraulic disc
Rear Brakes	245mm hydraulic disc
