Yamaha FZ-07 User Manual

INSTRUMENT AND CONTROL FUNCTIONS
3-27
3
EAU59950
Auxiliary DC connector
WARNING
EWA12532
To prevent electrical shock or short-
circuiting, make sure that the cap is
installed when the auxiliary DC con-
nector is not being used.
NOTICE
ECA20090
The accessory connected to the
auxiliary DC connector should not
be used with the engine turned off,
and the load must never exceed 24
W (2 A), otherwise the fuse may blow
or the battery may discharge.
This vehicle is equipped with an auxil-
iary DC connector. A 12–V accessory
connected to the auxiliary DC connec-
tor can be used when the key is in the
“ON” position.

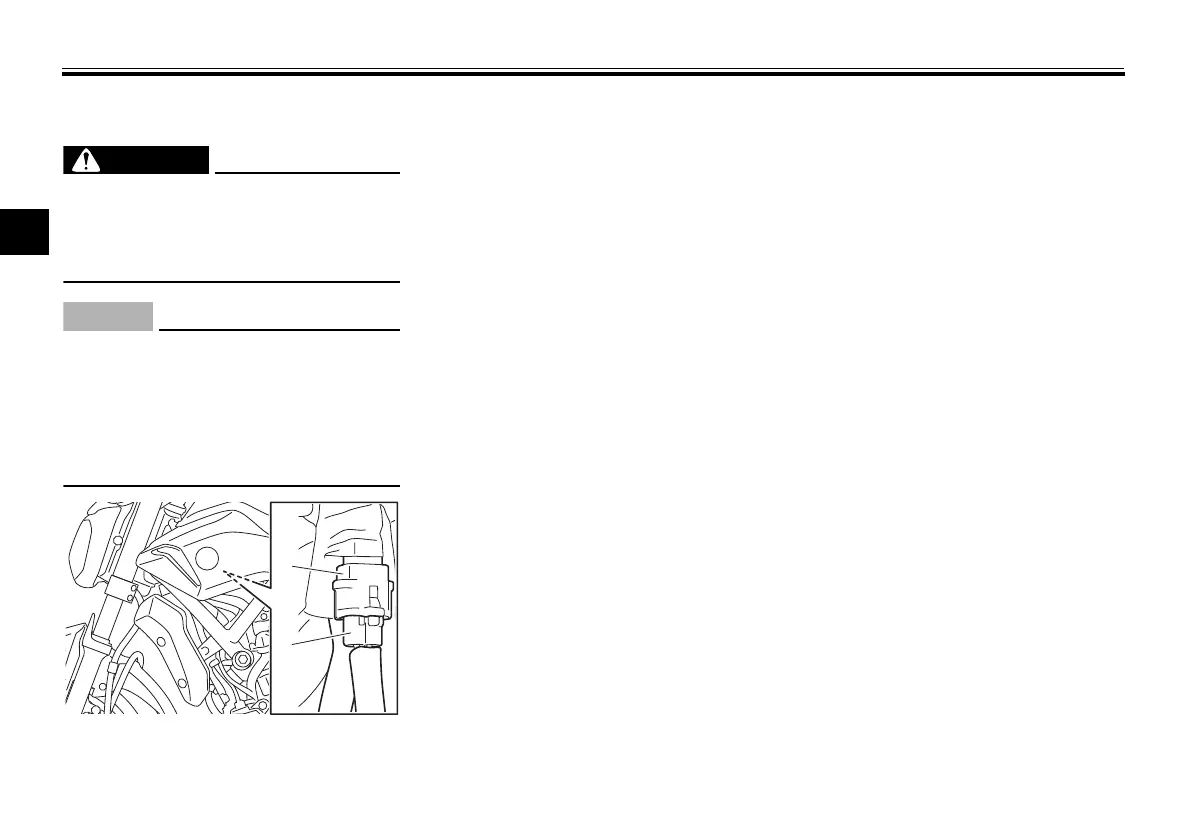

1. Auxiliary DC connector
2. Auxiliary DC connector cap
2
1
U1WSE0E0.book Page 27 Wednesday, November 13, 2013 10:28 AM

Yamaha FZ-07 Specifications

General

Bore x Stroke	80.0mm x 68.6mm
Compression Ratio	11.5:1
Fuel Delivery	Fuel injection
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed; multiplate wet clutch
Final Drive	Chain
Front Suspension	41mm fork; 5.1-in travel
Rear Suspension	Single shock, adjustable preload; 5.1-in travel
Front Tire	120/70ZR17
Rear Tire	180/55ZR17
Length	82.1 in
Height	42.9 in
Seat Height	31.7 in
Wheelbase	55.1 in
Trail	3.5 in
Fuel Capacity	3.7 gal
Wet Weight	397 lb
Engine Type	689cc liquid-cooled DOHC 4-stroke; 4 valves per cylinder
Front Brakes	Dual 282mm hydraulic disc
Rear Brakes	245mm hydraulic disc
