PERIODIC MAINTENANCE AND ADJUSTMENT
6-35
6
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw. NOTICE: Do not over-
tighten the screw, otherwise the
lens may break.
[ECA11192]
EAU59890
Replacing the license plate
light bulb
1. Remove the license plate light unit
by removing the nuts, washers
and collars, and then remove the
license plate light bulb socket (to-
gether with the bulb) by pulling it
out.
2. Remove the burnt-out bulb by
pulling it out.
3. Insert a new bulb into the socket.
4. Install the socket (together with
the bulb) by pushing it in, and then
install the license plate light unit by
installing the collars, washers and
nuts.

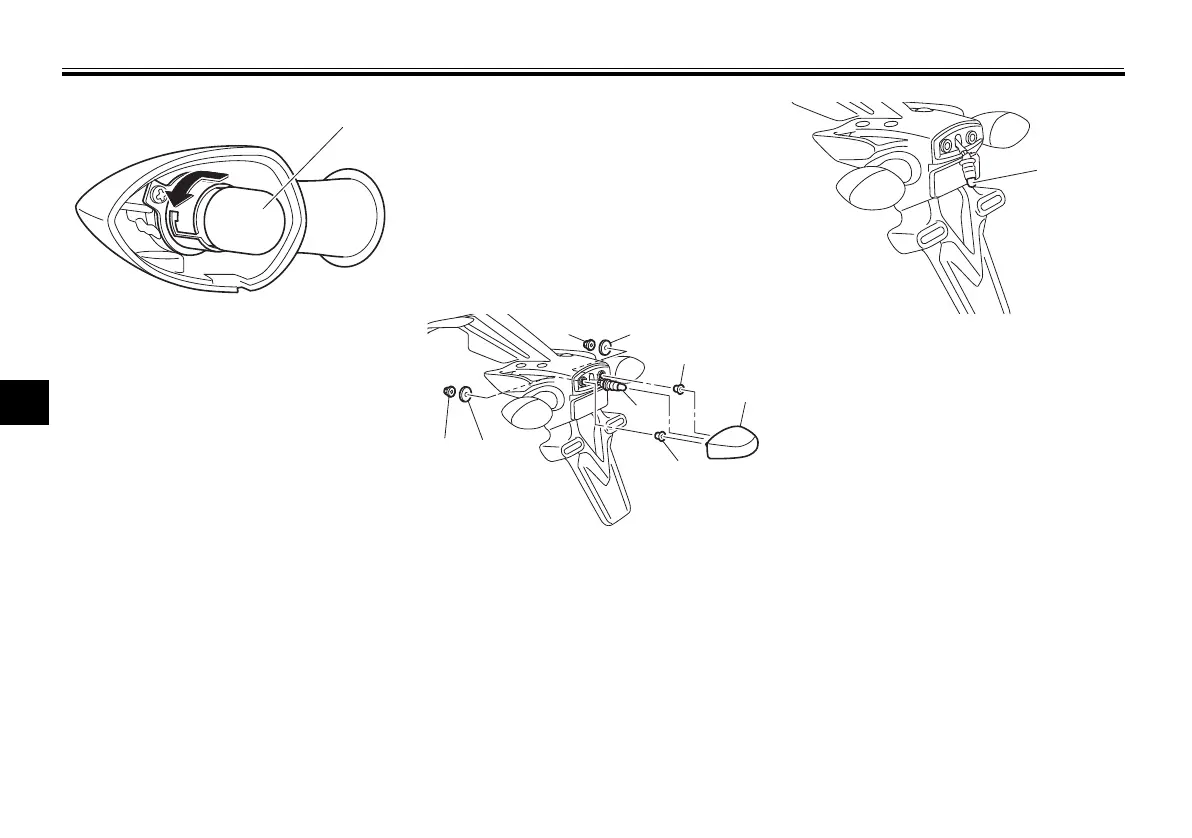

1. Turn signal light bulb
1
1. License plate light unit
2. Collar
3. Washer
4. Nut
5. License plate light bulb socket
1
2
2
5
3
4
34
1. License plate light bulb
1
U1WSE0E0.book Page 35 Wednesday, November 13, 2013 10:28 AM

Yamaha FZ-07 Specifications

General

Bore x Stroke	80.0mm x 68.6mm
Compression Ratio	11.5:1
Fuel Delivery	Fuel injection
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed; multiplate wet clutch
Final Drive	Chain
Front Suspension	41mm fork; 5.1-in travel
Rear Suspension	Single shock, adjustable preload; 5.1-in travel
Front Tire	120/70ZR17
Rear Tire	180/55ZR17
Length	82.1 in
Height	42.9 in
Seat Height	31.7 in
Wheelbase	55.1 in
Trail	3.5 in
Fuel Capacity	3.7 gal
Wet Weight	397 lb
Engine Type	689cc liquid-cooled DOHC 4-stroke; 4 valves per cylinder
Front Brakes	Dual 282mm hydraulic disc
Rear Brakes	245mm hydraulic disc
