PERIODIC MAINTENANCE AND ADJUSTMENT
6-20
6
justing nut in direction (a). To make the
brake light come on later, turn the ad-
justing nut in direction (b).
For ABS models
The brake light, which is activated by
the brake pedal and brake lever,
should come on just before braking
takes effect. If necessary, have a
Yamaha dealer adjust the brake light
switches.
EAU22393
Checking the front and rear
brake pads
The front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
EAU36891
Front brake pads
Each front brake pad is provided with
wear indicators, which allows you to
check the brake pad wear without hav-
ing to disassemble the brake. To check
the brake pad wear, check the position
of the wear indicators while applying
the brake. If a brake pad has worn to
the point that a wear indicator almost
touches the brake disc, have a
Yamaha dealer replace the brake pads
as a set.
EAU46292
Rear brake pads
Each rear brake pad is provided with
wear indicator grooves, which allow
you to check the brake pad wear with-
out having to disassemble the brake.
To check the brake pad wear, check
the wear indicator grooves. If a brake
pad has worn to the point that a wear
indicator groove almost appears, have
a Yamaha dealer replace the brake
pads as a set.

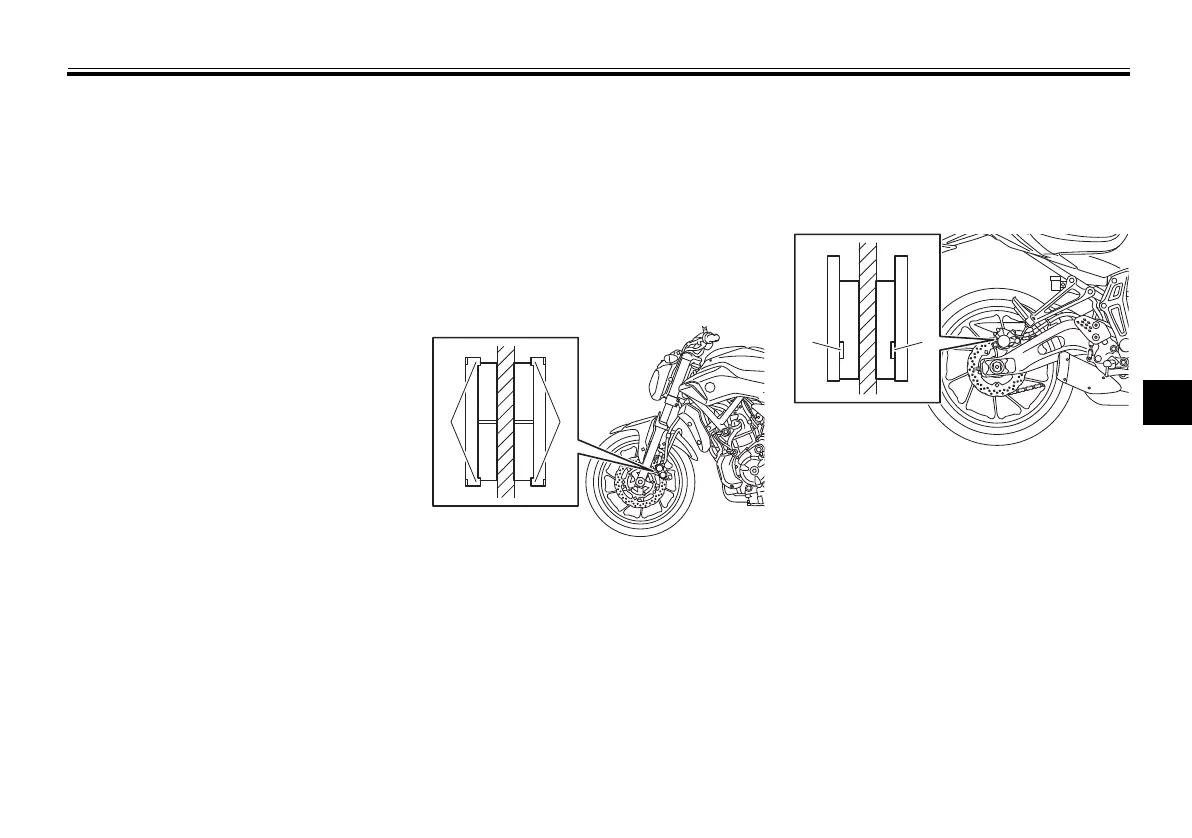

1. Brake pad wear indicator
11
1. Brake pad wear indicator groove
11
U1WSE0E0.book Page 20 Wednesday, November 13, 2013 10:28 AM

Yamaha FZ-07 Specifications

General

Bore x Stroke	80.0mm x 68.6mm
Compression Ratio	11.5:1
Fuel Delivery	Fuel injection
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed; multiplate wet clutch
Final Drive	Chain
Front Suspension	41mm fork; 5.1-in travel
Rear Suspension	Single shock, adjustable preload; 5.1-in travel
Front Tire	120/70ZR17
Rear Tire	180/55ZR17
Length	82.1 in
Height	42.9 in
Seat Height	31.7 in
Wheelbase	55.1 in
Trail	3.5 in
Fuel Capacity	3.7 gal
Wet Weight	397 lb
Engine Type	689cc liquid-cooled DOHC 4-stroke; 4 valves per cylinder
Front Brakes	Dual 282mm hydraulic disc
Rear Brakes	245mm hydraulic disc
