145
LS9-16/LS9-32

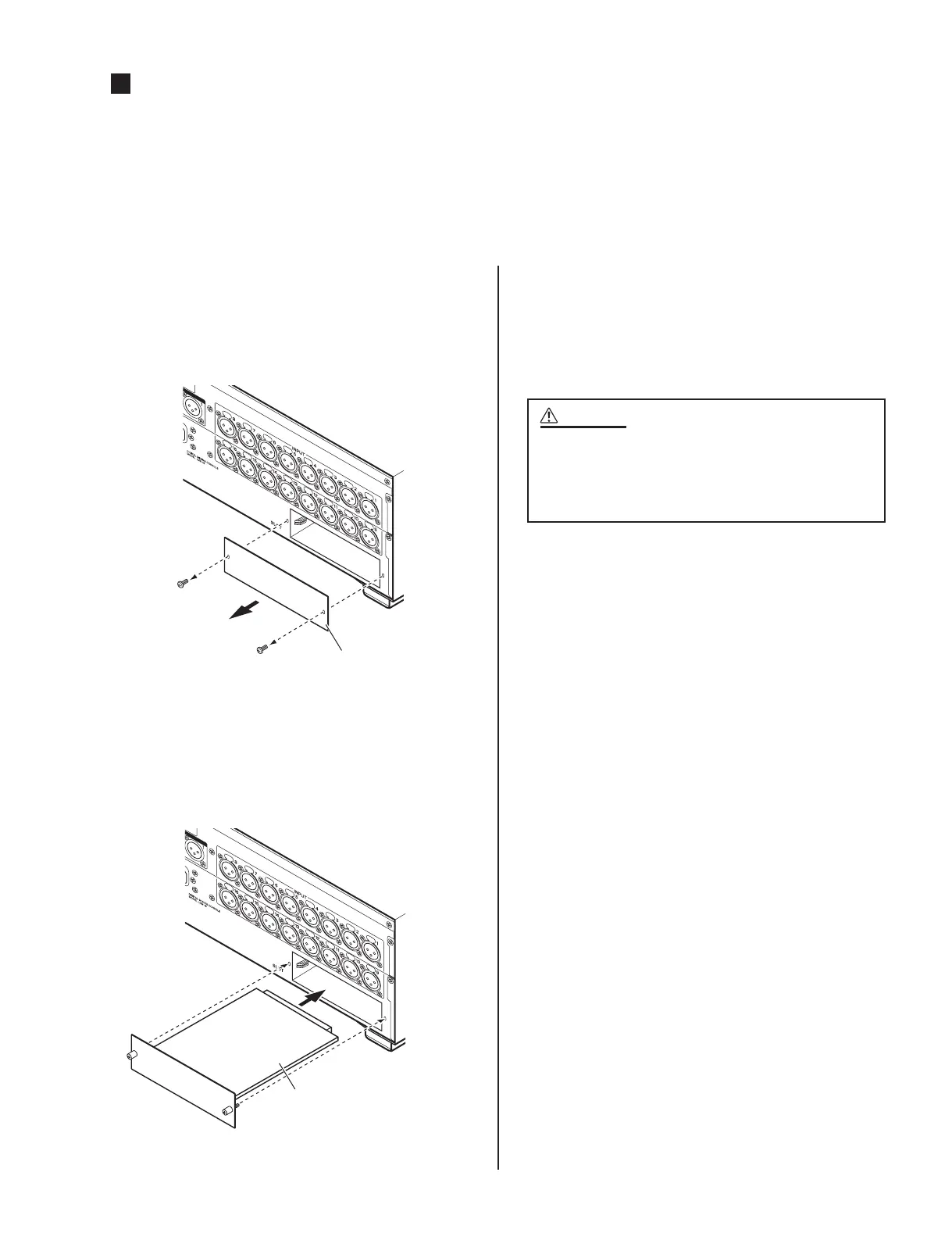

INSTALLING an OPTION CARD
Before you install an I/O card in a slot, you must check the Yamaha website to verify whether the LS9 supports that card and
to verify the number of other Yamaha cards or third-party cards that can be used in conjunction with it.
http://www.yamahaproaudio.com/
To install an option I/O card, proceed as follows.
Make sure that the power switch is turned off.
Loosen the screws that fasten the slot, and re-
move the slot cover.
Keep the removed slot cover in a safe place.
1
2
LS9-16
Slot cover
Align both edges of the card with the guide rails
inside the slot, and insert the card into the slot.
Push the card all the way into the slot to ensure that
the contacts of the card are correctly inserted into
the connector inside the slot.
3
LS9-16
Card
Fasten the card using the screws attached to the
card.
Be aware that damage or malfunctions may occur if
the card is not fastened.
4
CAUTION
• Before installing separately sold I/O cards into
the console, you must make sure that the con-
sole’s power switch is turned off. Otherwise, mal-
functions or electrical shock may occur.
To Next Page
