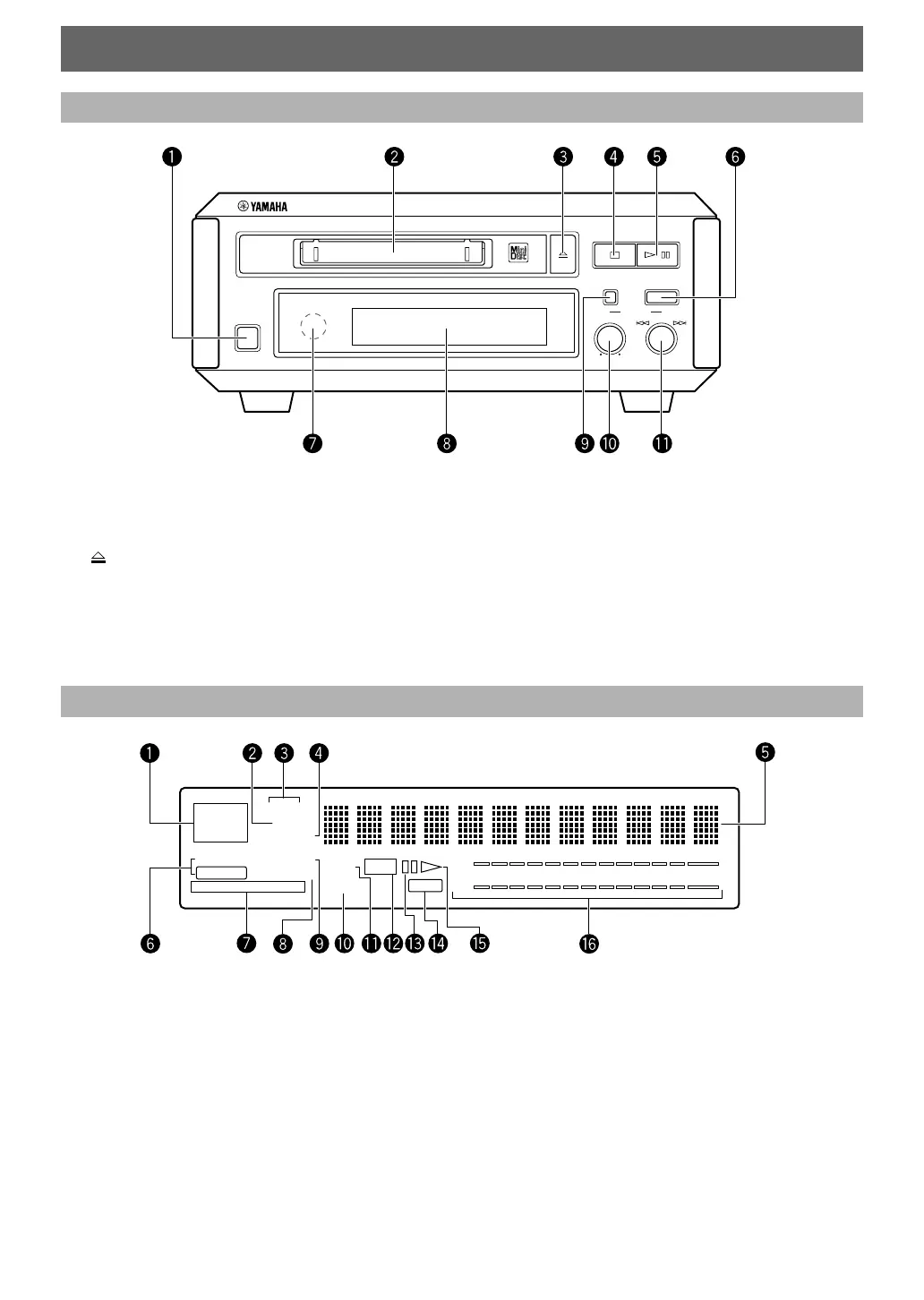

FRONT PANEL
~ STANDBY/ON (P.7)
Ÿ Disc insertion slot (P.7)
! (P.7)
⁄ & (P.7)
@ #/* (P.7)
¤ REC/PAUSE (P.11)
PART DESCRIPTIONS
/
STANDBY/ON
NATURAL SOUND MINIDISC RECORDER MDX-E100
INPUT
ANALOG DIGITAL
REC LEVEL
MIN MAX
REC/PAUSE
–
+
# Remote control sensor (P.5)
‹ Display
$ INPUT (P.11)
› ANALOG REC LEVEL (P.12)
% Jog dial ($ ›)/ DIGITAL REC LEVEL (P.7/
P.12)
DISPLAY
ANALOG
DIGITAL
OPT.123
COAX.
32 44.1 48
kHz
REPEAT
MONO
REC
MANUAL TOC
DISC TRACK
TOTAL
REMAIN
RANDOM
PROGRAM
A-B S F
L
R
dB
–
60 30 10 6 4 2 1 0 OVER00
––– – ––
~Input indicator (P.11)
Ÿ TOTAL indicator (P.8)
! DISC/TRACK indicator (P.8)
⁄ REMAIN indicator (P.8)
@ Multi information display
¤ Sampling frequency indicator (P.11)
# REPEAT A-B/S/F indicator (P.9)
‹ PROGRAM indicator (P.10)
$ RANDOM indicator (P.9)
› MANUAL indicator (P.12)
% MONO indicator (P.13)
fi REC indicator (P.11)
^ Pause indicator
fl TOC indicator (P.15)
& Play indicator
‡ Recording level meter (P.12)
