Yamaha MG16/6FX Service Manual

MG16/6FX
22

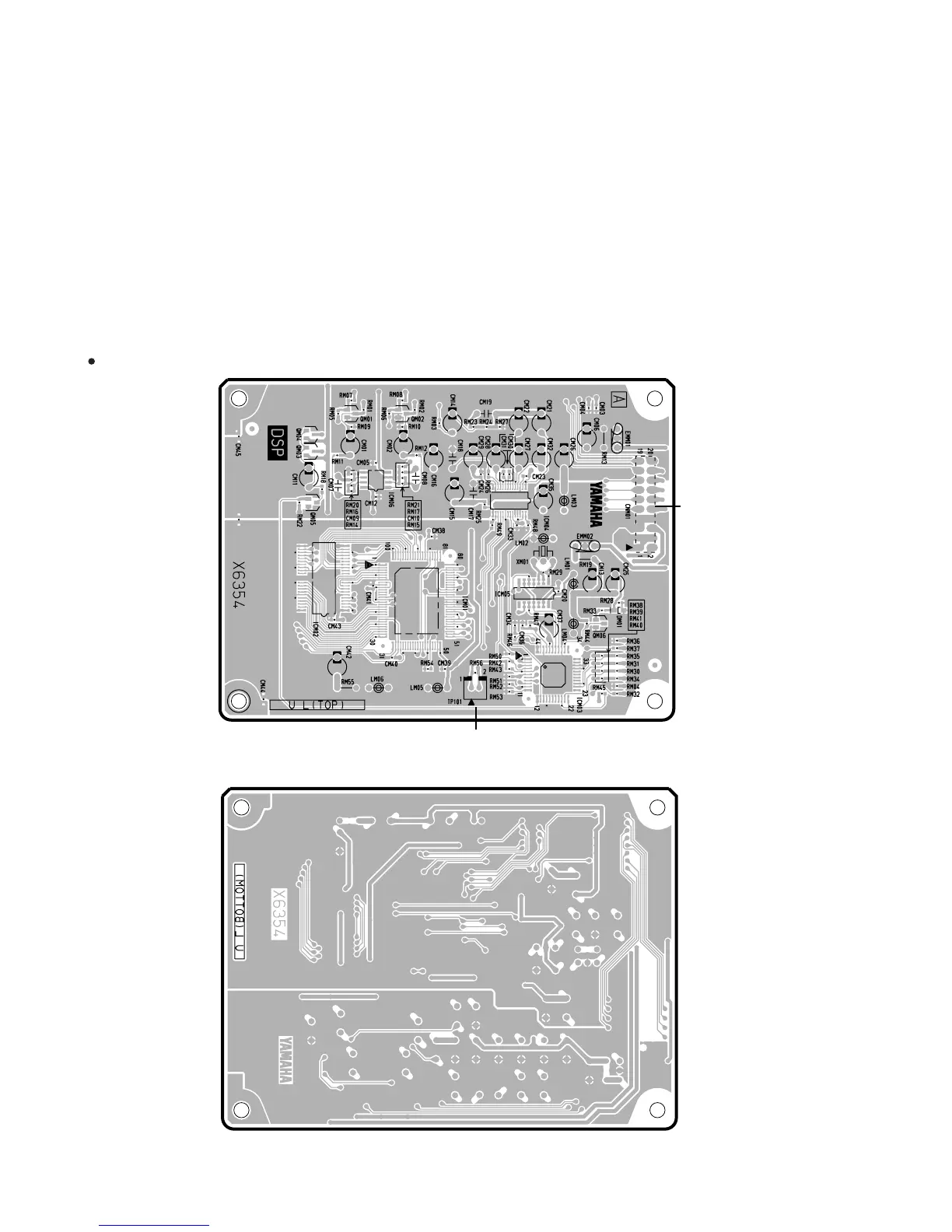

DSP Circuit Board
to MAIN-CNE01
N.C
Component side（部品側）
Pattern side（パターン側）
Note: See parts list for details of circuit board component parts.
DSP Circuit Board (X6354A0) ........................................................ 22
MAIN Circuit Board (X6344C0) ................................................. 23/25
JACK 1/2 Circuit Board (X6255B0) .......................................... 27/28
JACK 2/2 Circuit Board (X6255B0) ............................................... 28
PS Circuit Board (X6343B0) .......................................................... 29
注：シートの部品詳細はパーツリストをご参照ください。
■ CIRCUIT BOARDS （シート基板図）
2NA-WE67580

Yamaha MG16/6FX Specifications

General

Type	Analog Mixer
Number of Channels	16
Phantom Power	Yes
Phantom Power Detail	+48V
Faders	60 mm
Line Inputs	16
Other Inputs	2 (Stereo)
EQ Bands	3-band EQ
Aux Sends	2
Effects	Yes
Effects Processor	SPX Digital Effects (24-bit)
