Yamaha MG16/6FX Service Manual

MG16/6FX

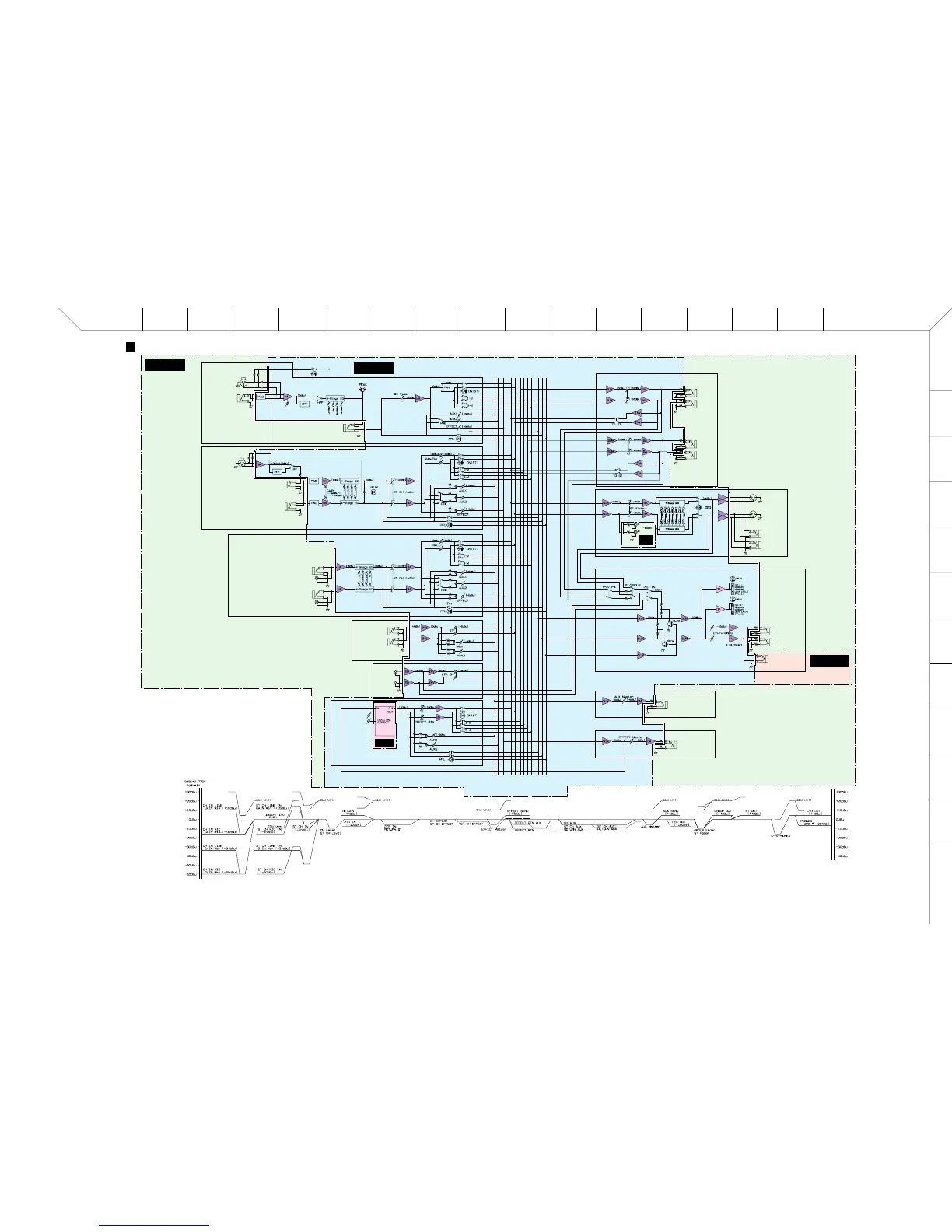

BLOCK DIAGRAM & LEVEL DIAGRAM
3
28CA1-8834986
AUX1 AUX2 EFFECT ST L ST R GROUP1 GROUP2 GROUP3 GROUP4 PFL L PFL R PFL CTRL
AUX1 AUX2
EFFECT
ST L
ST R
GROUP1 GROUP2 GROUP3 GROUP4
PFL L
PFL R
PFL CTRL
+48V
PHANTOM
MIC
CH IN
[-60dBu to -16dBu]
[-34dBu to +10dBu]
ST CH MIC IN
[-60dBu to +16dBu]
CH9/10, CH11/12
ST CH LINE IN
[-34dBu to +10dBu]
CH9(L)/10(R), CH11(L)/12(R)
ST CH IN
[-10dBu]
CH13(L)/14(R), CH15(L)/16(R)
RETURN
[+4dBu]
2TR IN
[-10dBV]
MIC [-60dBu to -16dBu]
JK101, 201, 301,
401, 501, 601,
701, 801
JK102, 202, 302, 402,
502, 602, 702, 802
JK901, A01
JK902, A02
JK903, A03
JK103, 203, 303, 403,
503, 603, 703, 803
CN102, 302, 502, 702
(13P)
CN902, A02
(13P)
CN901, A01
(13P)
IC901, A01 (8P)
IC101, 201, 301, 401,
501, 601, 701, 801
(8P)
IC102, 202, 302, 402,
502, 602, 702, 802
(8P)
IC103, 303,
503, 703
(8P)
IC906b, A06b (8P)
IC906a, A06a (8P)
IC902a,
A02a (8P)
IC902b,
A02b (8P)
CN101,
301,
501,
701
(13P)
JKJ03
JKJ01, J02
JKL01
CNL02 (3P)
CNK01
(13P)
CNK02
(13P)
CNL01 (3P)
CNF02 (13P)CNF01 (13P)
ICJ02a
(8P)
ICJ01
(8P)
ICJ02b
(8P)
ICJ03
(8P)
ICE01a (8P)
ICD01b (8P)ICD03b (8P)
ICD01a (8P)
ICD03a
(8P)
ICD02b (8P)
ICD02a (8P)
JKD01
JKD02
JKB02, C02
CND02 (13P)
CNE01 (20P)
CNM01 (20P)
CND01 (13P)
ICB01b,
C01b (8P)
ICB02a, B03a, B04a,
C02a, C03a, C04a
(8P)
IC903a, 904a,
905a, A03a,
A04a, A05a
(8P)
IC903b, 904b,
905b, A03b,
A04b, A05b
(8P)
ICB05b, C05b
(8P)
ICB05a, C05a
(8P)
ICB02b, B03b,
B04b, C02b,
C03b, C04b
(8P)
ICB01a,
C01a (8P)
JKB03
JKB03
JKB01, C01
JKD03
ICE01b
(8P)
ICL05 (8P)
ICL01b (8P)
ICL01a (8P)
ICL02a (8P)
ICL03 (24P)
ICK08
(8P)
ICK07 (8P)
ICK01a (8P)
ICG03a (8P)
ICG01a (8P) ICG02b (8P)
ICG01b (8P) ICG02a (8P)
GROUP 3-4 Fader
ICG03b (8P)
ICG03a (8P)
ICF01a (8P) ICF02b (8P)
ICF01b (8P)
ICF02a (8P)
GROUP 1-2 Fader
ICG03b (8P)
ICK02a (8P)
ICK02b (8P)
ICK01b (8P)
ICK03, K04 (14P)
ICK05, K06 (14P)
JKD01
CNK01
(13P)
CNK02
(13P)
ICL04 (24P)
ICL06a (8P)
ICL06b (8P)
JKL03
JKL02
JKK04
JKG02
JKG01
JKF02
CNF02 (13P)
CNF01
(13P)
JKF01
JKK02
JKK03
JKK01
LED DRIVER
ICL02b (8P)
LINE [-34dBu to +10dBu]
CH1-8
LINE
GAIN
INSERT I/O
[0dBu]
L(MONO)
R
L
R
L(MONO)
R
R
PROGRAM
PARAMETER
L
1
GROUP OUT
2
3
4
[+4dBu]
ST OUT
[+4dBu/-40dB]
ST OUT
REC OUT
[+4dBu]
L
R
L
R
C-R OUT
PHONES
[+4dBu]
[3mW @ 40ohms ]
L
R
SEND AUX 1, 2
[+4dBu]
SEND EFFECT
[+4dBu]
JACK1/2
MAIN
DSP
JACK2/2
JACK
1/2
2
3
4
5
6
1
7
8
9
10
BCDEFGHIJKLMNOPQ A
11
12

Yamaha MG16/6FX Specifications

General

Type	Analog Mixer
Number of Channels	16
Phantom Power	Yes
Phantom Power Detail	+48V
Faders	60 mm
Line Inputs	16
Other Inputs	2 (Stereo)
EQ Bands	3-band EQ
Aux Sends	2
Effects	Yes
Effects Processor	SPX Digital Effects (24-bit)
