Instrument and control functions
5-7
1
2
3
4
5
6
7
8
9
10
11
12
13

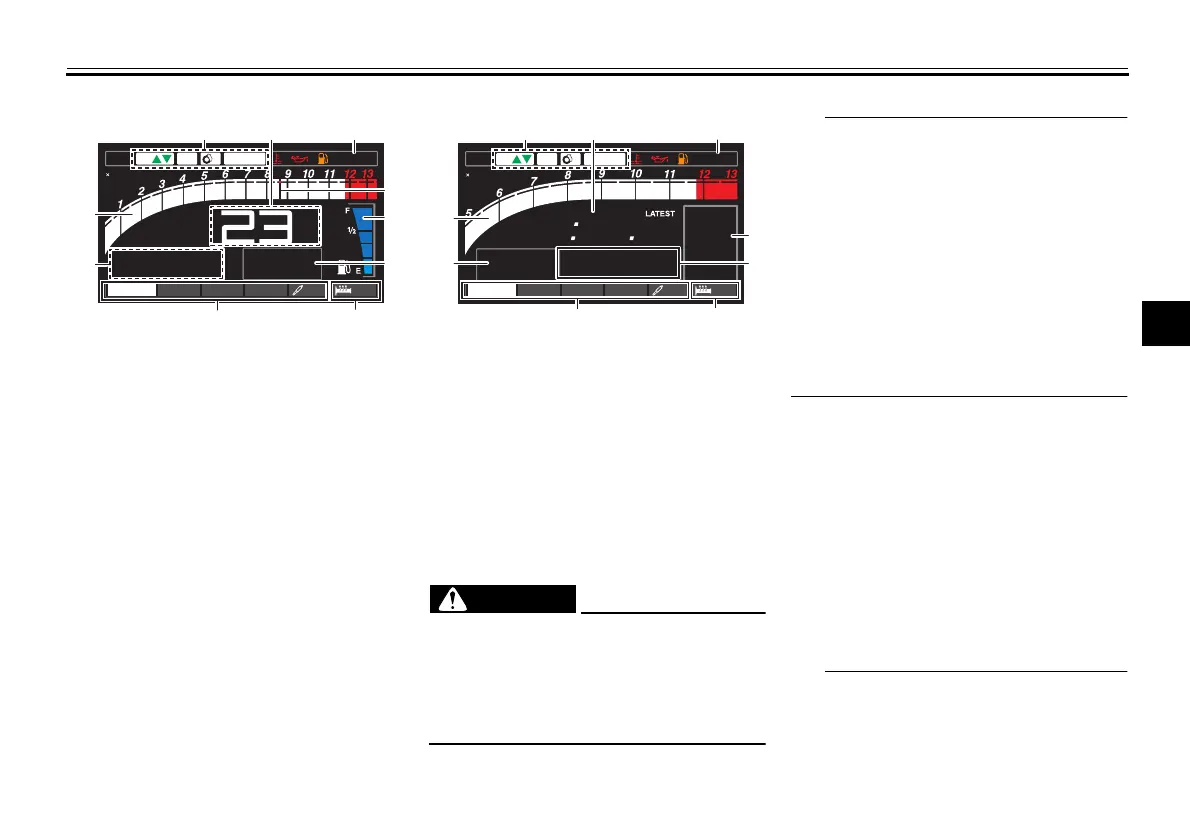

STREET MODE TRACK MODE
EWA18210
Stop the vehicle before making any
setting changes. Changing settings
while riding can distract the opera-
tor and increase the risk of an acci-
dent.
This model uses a thin-film-tran-
sistor liquid-crystal display (TFT
LCD) for good contrast and read-
ability in various lighting condi-
tions. However, due to the nature
of this technology, it is normal for a
small number of pixels to be inac-
tive.
The display units can be switched
between kilometers/miles and cel-
cius/farenheit. (See page 5-22.)
Speedometer
The speedometer shows the vehicle’s
traveling speed.
Tachometer
The tachometer shows the engine
speed, as measured by the rotational
velocity of the crankshaft, in revolutions
per minute (r/min).
In TRACK MODE, the tachometer
starts at 5000 r/min.
In STREET MODE, the tachome-
ter can be color-adjusted and has
1. YRC items QS/LIF/BC/EBM
2. Speedometer
3. Clock
4. Revolution peak hold indicator
5. Fuel meter
6. Transmission gear display
7. Grip warmer indicator (if equipped)
8. YRC items MODE/PWR/TCS/SCS/ERS
9. Information display
10.Tachometer
1
2
N
QS
LIF 1
12
:
00
EB
M
1
MODE-
A
PWR 1
TCS 3
SCS 1
1000 r/min
A-1
TRIP-1
OFF
9990.0
9990.0
TRIP-2
MPH
mile
mile
8
6
5
4
1
7
23
10
9
1. YRC items QS/LIF/BC/EBM
2. Lap timer
3. Clock
4. Transmission gear display
5. Information display
6. Grip warmer indicator (if equipped)
7. YRC items MODE/PWR/TCS/SCS/ERS
8. Speedometer
9. Tachometer
12
3412
LAP
09
56
N
GEAR
QS
LIF 1
12
:
00
MODE-
A
PWR
1
TCS
3
SCS
1
1000 r/min
EB
M
1
OFF
1234.5
TRIP-1
A-1
MPH mile
7
1
6
9
8
2
4
5
3
