shifter is programmed to ignore unclear
input signals. Therefore, be sure to shift
using quick and sufficiently forceful in-
puts.
EAU93080
Brake lever
The brake lever is located on the right
side of the handlebar. To apply the front
brake, pull the lever toward the throttle
grip.
The brake lever is equipped with a
brake lever position adjusting knob. To
adjust the distance between the brake
lever and the throttle grip, turn the ad-
justing knob while holding the lever
pushed away from the throttle grip.
Turn the adjusting knob in direction (a)
to increase the distance. Turn the ad-
justing knob in direction (b) to decrease
the distance.
EAU12944
Brake pedal
The brake pedal is located on the right
side of the motorcycle. To apply the
rear brake, press down on the brake
pedal.

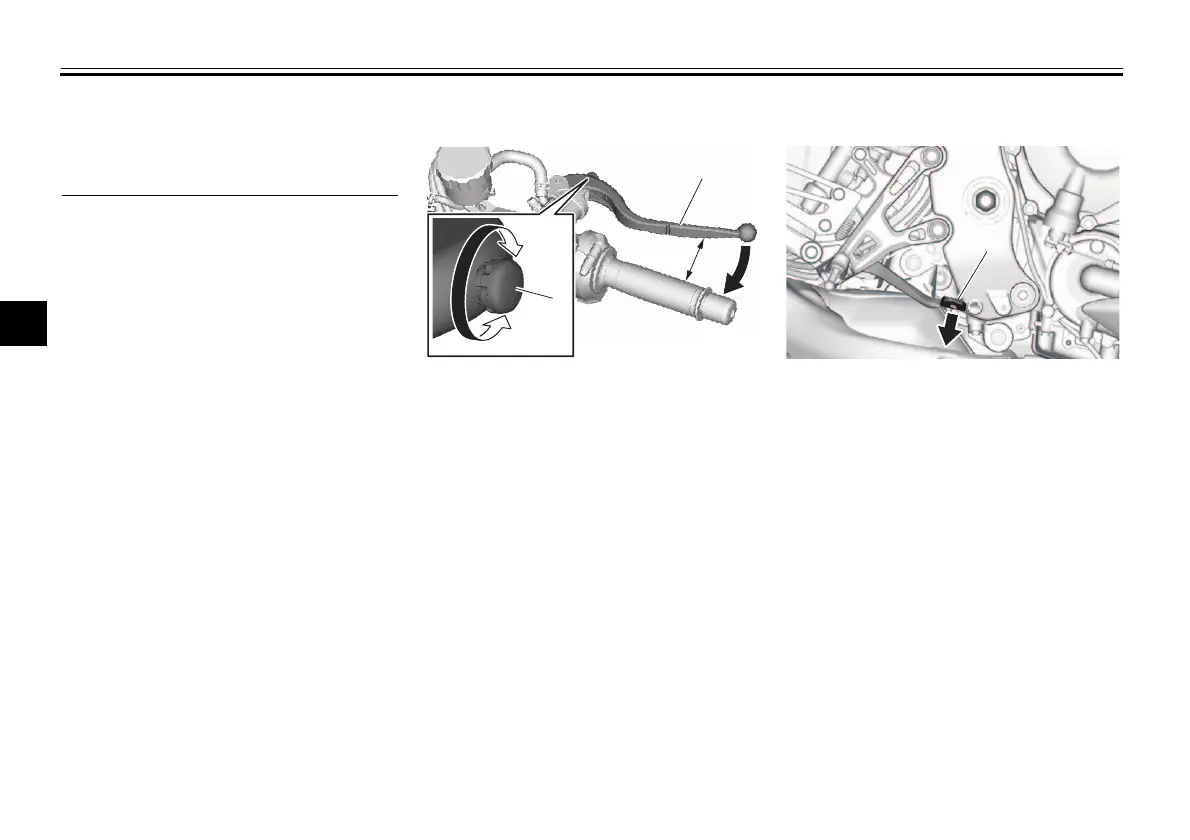

1. Brake lever
2. Distance
3. Brake lever position adjusting knob
111
2
2
33
(a)(a)(a)
(b)(b)
(b)
1. Brake pedal
