Instrument and control functions
3-6
3
EAU26879
Immobilizer system indicator
light “ ”
When the key is turned to “OFF” and
30 seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”. The indicator light should
come on for a few seconds, and then
go off.
If the indicator light does not come on
initially when the key is turned to “ON”,
or if the indicator light remains on, have
a Yamaha dealer check the electrical
circuit.
The self-diagnosis device also detects
problems in the immobilizer system
circuits. (See page 3-12 for an expla-
nation of the self-diagnosis device.)
EAU59978
Multi-function meter unit
The multi-function meter unit is
equipped with the following:
 speedometer
 tachometer
 clock
 fuel meter
 eco indicator
 transmission gear display
 multi-function display

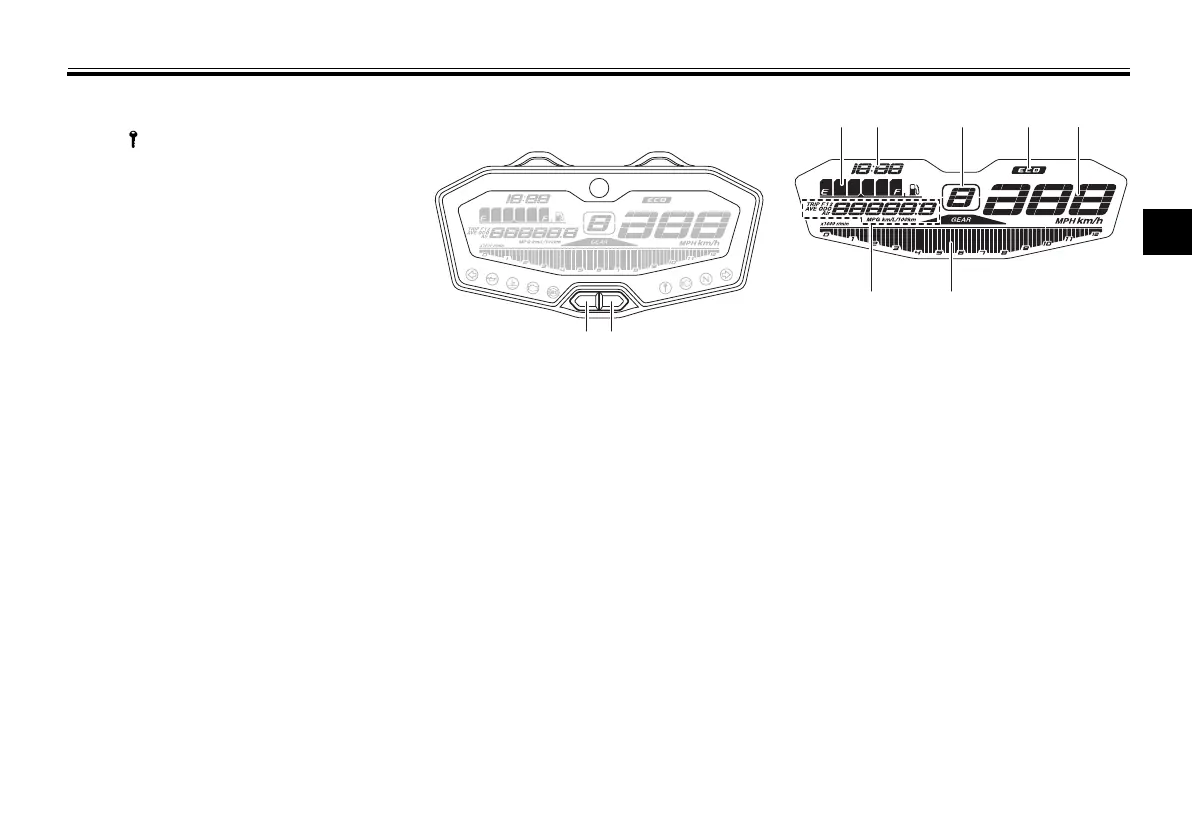

1. Left set button
2. Right set button
1 2
1. Fuel meter
2. Clock
3. Transmission gear display
4. Eco indicator “ECO”
5. Speedometer
6. Tachometer
7. Multi-function display
67
21 3 4 5
U1WSE3E0.book Page 6 Monday, June 8, 2015 10:12 AM

Yamaha MT07 Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valves
Displacement	689cc
Bore x Stroke	80.0 mm x 68.6 mm
Compression Ratio	11.5:1
Maximum Torque	67.0 Nm (6.8 kg-m) @ 6, 500 rpm
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	Constant Mesh, 6-speed
Frame Type	Diamond
Front Suspension	Telescopic forks
Front Brake	Hydraulic dual disc, Ø 298 mm
Rear Brake	Hydraulic single disc, Ø 245 mm
Front Tyre	120/70 ZR 17M/C (58W)
Rear Tyre	180/55 ZR 17M/C (73W)
Overall Length	2, 085 mm
Overall Width	780 mm
Overall Height	1, 105 mm
Seat Height	805 mm
Wheelbase	1, 400 mm
Minimum Ground Clearance	140 mm
Wet Weight	184 kg
Fuel Tank Capacity	14 L
Rear Suspension	Swingarm (Link suspension)
