Yamaha MT07 User Manual

Instrument and control functions
3-23
3
WARNING
EWA10222
This shock absorber assembly con-
tains highly pressurized nitrogen
gas. Read and understand the fol-
lowing information before handling
the shock absorber assembly.
 Do not tamper with or attempt
to open the cylinder assembly.
 Do not subject the shock ab-
sorber assembly to an open
flame or other high heat source.
This may cause the unit to ex-
plode due to excessive gas
pressure.
 Do not deform or damage the
cylinder in any way. Cylinder
damage will result in poor
damping performance.
 Do not dispose of a damaged or
worn-out shock absorber as-
sembl
y
yourself. Take the shock
absorber assembly to a Yamaha
dealer for any service.
EAU38963
Luggage strap holders
There are six luggage strap holders,
four on the bottom of the passenger
seat and one on each passenger foot-
rest. To use the luggage strap holders

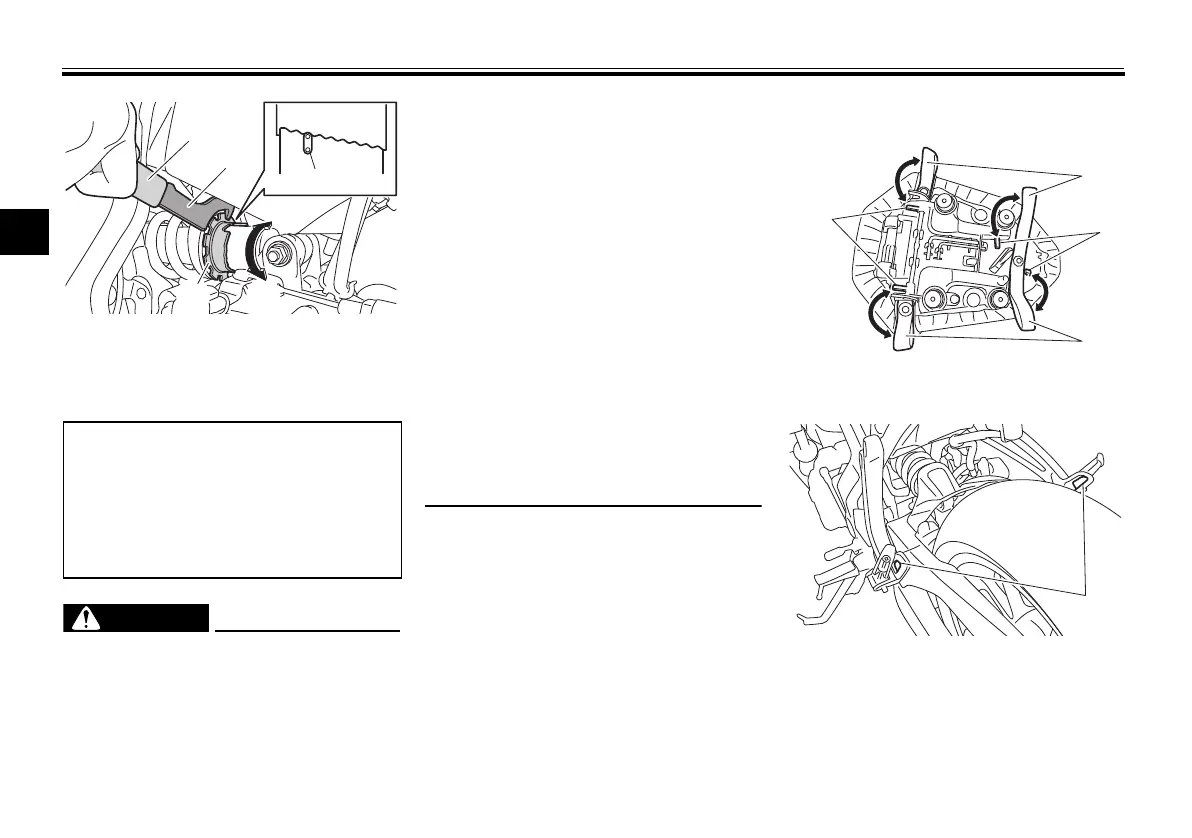

1. Extension bar
2. Special wrench
3. Spring preload adjusting ring
4. Position indicator
Spring preload setting:
Minimum (soft):
1
Standard:
3
Maximum (hard):
9
7
6
9
8
5
4
3
2
1
3
(a)
(b)
2
1
4
1. Luggage strap holder
2. Hook
1. Luggage strap holder
1
2
2
1
1
U1WSE3E0.book Page 23 Monday, June 8, 2015 10:12 AM

Yamaha MT07 Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valves
Displacement	689cc
Bore x Stroke	80.0 mm x 68.6 mm
Compression Ratio	11.5:1
Maximum Torque	67.0 Nm (6.8 kg-m) @ 6, 500 rpm
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	Constant Mesh, 6-speed
Frame Type	Diamond
Front Suspension	Telescopic forks
Front Brake	Hydraulic dual disc, Ø 298 mm
Rear Brake	Hydraulic single disc, Ø 245 mm
Front Tyre	120/70 ZR 17M/C (58W)
Rear Tyre	180/55 ZR 17M/C (73W)
Overall Length	2, 085 mm
Overall Width	780 mm
Overall Height	1, 105 mm
Seat Height	805 mm
Wheelbase	1, 400 mm
Minimum Ground Clearance	140 mm
Wet Weight	184 kg
Fuel Tank Capacity	14 L
Rear Suspension	Swingarm (Link suspension)
