Yamaha MT07 User Manual

Instrument and control functions
3-22
3
EAU14465

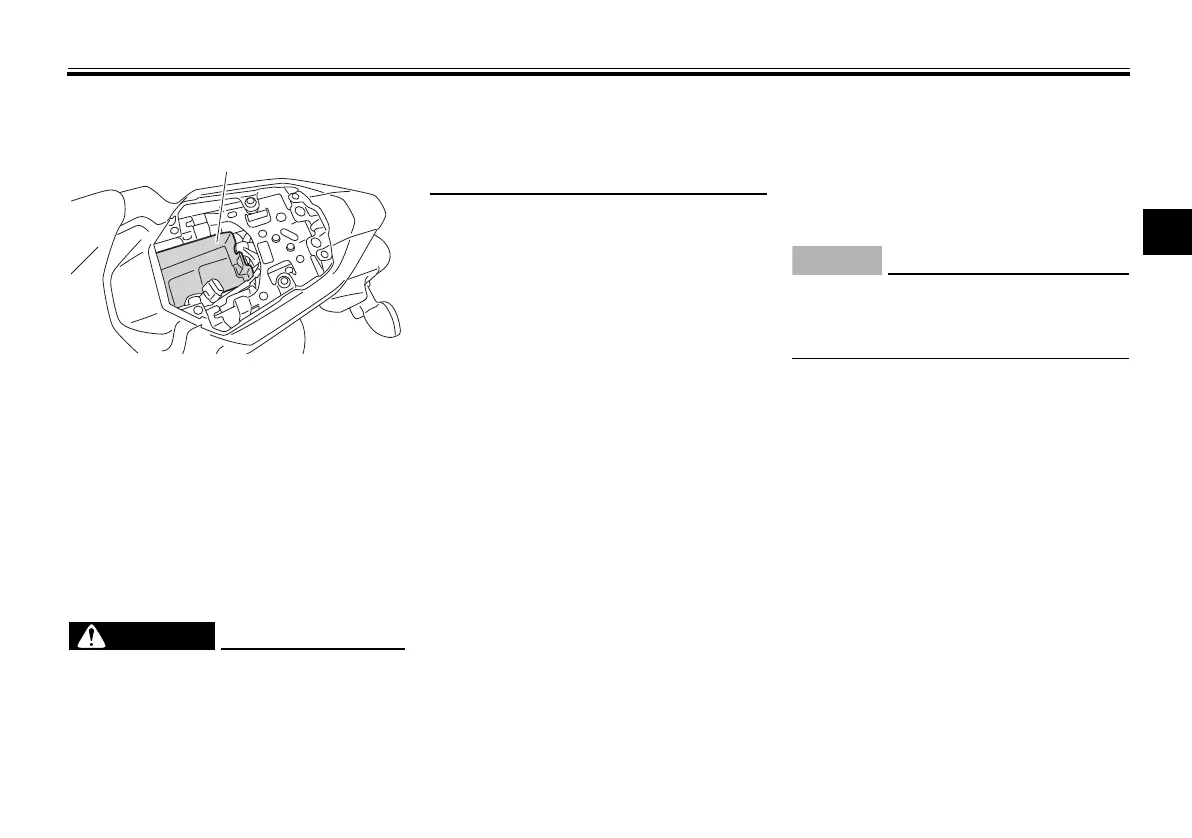

Storage compartment
The storage compartment is located
under the passenger seat. (See page
3-19.)
When storing documents or other
items in the storage compartment, be
sure to wrap them in a plastic bag so
that they will not get wet. When wash-
ing the vehicle, be careful not to let any
water enter the storage compartment.
WARNING
EWA10962
 Do not exceed the load limit of
1.5 kg (3 lb) for the storage com-
partment.
 Do not exceed the maximum
load of 173 kg (381 lb) (MT07A)
176 kg (388 lb) (MT07) for the ve-
hicle.
EAU47001
Adjusting the shock absorber
assembly
This shock absorber assembly is
equipped with a spring preload adjust-
ing ring.
NOTICE
ECA10102
To avoid damaging the mechanism,
do not attempt to turn beyond the
maximum or minimum settings.
Adjust the spring preload as follows.
To increase the spring preload and
thereby harden the suspension, turn
the adjusting ring in direction (a). To
decrease the spring preload and there-
by soften the suspension, turn the ad-
justing ring in direction (b).
 Align the appropriate notch in the
adjusting ring with the position in-
dicator on the shock absorber.
 Use the special wrench and ex-
tension bar included in the own-
er’s tool kit to make the
adjustment.
1. Storage compartment
1
U1WSE3E0.book Page 22 Monday, June 8, 2015 10:12 AM

Yamaha MT07 Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valves
Displacement	689cc
Bore x Stroke	80.0 mm x 68.6 mm
Compression Ratio	11.5:1
Maximum Torque	67.0 Nm (6.8 kg-m) @ 6, 500 rpm
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	Constant Mesh, 6-speed
Frame Type	Diamond
Front Suspension	Telescopic forks
Front Brake	Hydraulic dual disc, Ø 298 mm
Rear Brake	Hydraulic single disc, Ø 245 mm
Front Tyre	120/70 ZR 17M/C (58W)
Rear Tyre	180/55 ZR 17M/C (73W)
Overall Length	2, 085 mm
Overall Width	780 mm
Overall Height	1, 105 mm
Seat Height	805 mm
Wheelbase	1, 400 mm
Minimum Ground Clearance	140 mm
Wet Weight	184 kg
Fuel Tank Capacity	14 L
Rear Suspension	Swingarm (Link suspension)
