Yamaha MT07 User Manual

Periodic maintenance and adjustment
6-31
6
EAU59871

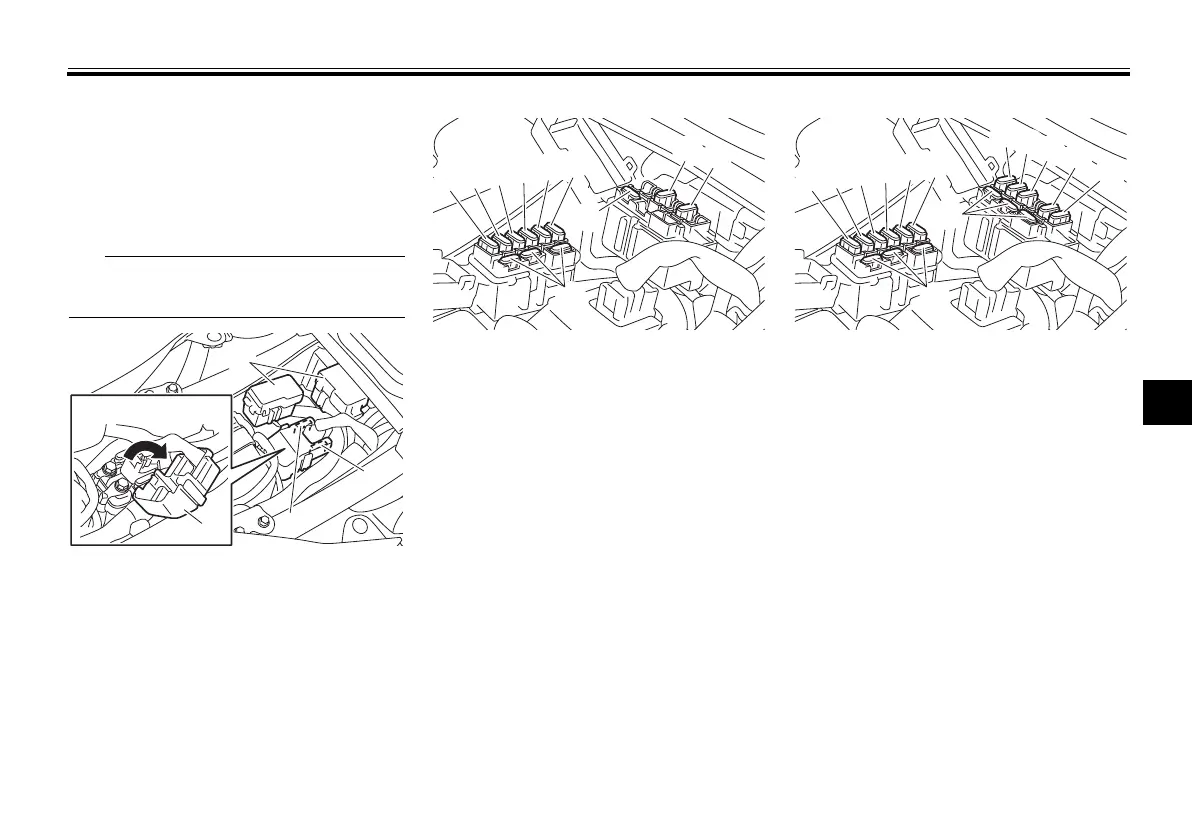

Replacing the fuses
The main fuse and the fuse boxes,
which contain the fuses for the individ-
ual circuits, are located under the rider
seat. (See page 3-19.)
TIP
To access the main fuse, remove the
starter relay cover as shown.
MT07 MT07A
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
1. Starter relay cover
2. Fuse box
3. Spare main fuse
4. Main fuse
2
3
4
1
1. Ignition fuse
2. Signaling system fuse
3. Headlight fuse
4. Fuel injection system fuse
5. Backup fuse (for clock and immobilizer sys-
tem)
6. Radiator fan motor fuse
7. Parking lighting fuse
8. Auxiliary fuse
9. Spare fuse
7
8
1
2
3
4
5
6
9
9
1. Ignition fuse
2. Signaling system fuse
3. Headlight fuse
4. Fuel injection system fuse
5. Backup fuse (for clock and immobilizer sys-
tem)
6. Radiator fan motor fuse
7. ABS solenoid fuse
8. ABS motor fuse
9. Parking lighting fuse
10.Auxiliary fuse
11.ABS control unit fuse
12.Spare fuse
7
8
9
10
11
1
2
3
4
5
6
12
12
U1WSE3E0.book Page 31 Monday, June 8, 2015 10:12 AM

Yamaha MT07 Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valves
Displacement	689cc
Bore x Stroke	80.0 mm x 68.6 mm
Compression Ratio	11.5:1
Maximum Torque	67.0 Nm (6.8 kg-m) @ 6, 500 rpm
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	Constant Mesh, 6-speed
Frame Type	Diamond
Front Suspension	Telescopic forks
Front Brake	Hydraulic dual disc, Ø 298 mm
Rear Brake	Hydraulic single disc, Ø 245 mm
Front Tyre	120/70 ZR 17M/C (58W)
Rear Tyre	180/55 ZR 17M/C (73W)
Overall Length	2, 085 mm
Overall Width	780 mm
Overall Height	1, 105 mm
Seat Height	805 mm
Wheelbase	1, 400 mm
Minimum Ground Clearance	140 mm
Wet Weight	184 kg
Fuel Tank Capacity	14 L
Rear Suspension	Swingarm (Link suspension)
