Yamaha QL5 Service Manual

LK J I H G F E D C B A
1
2
3
4
5
6
7
8
39
QL5/QL1

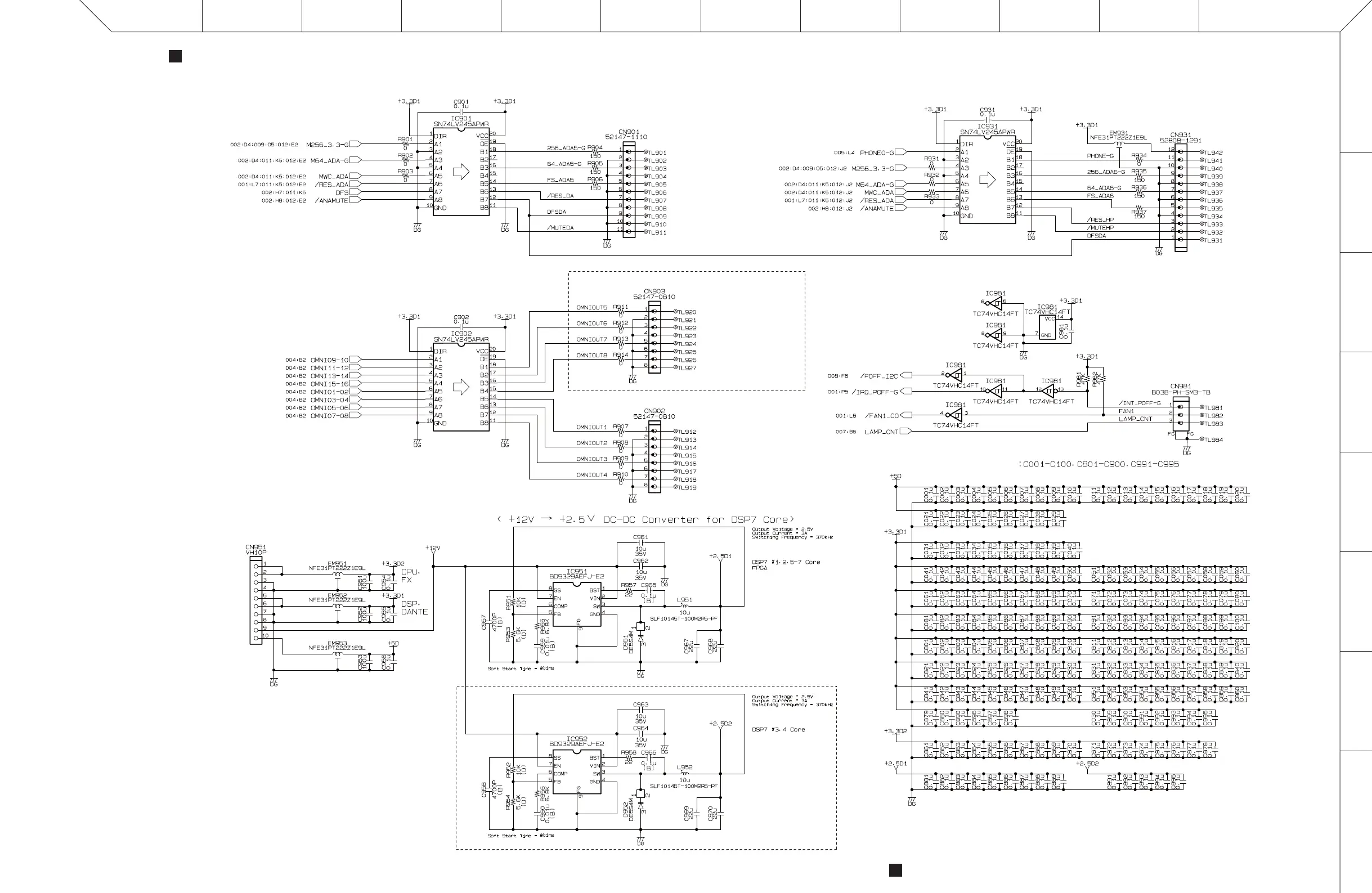

DSP32 (QL5), DSP16 (QL1) 012 CIRCUIT DIAGRAM
DSP32 (QL5), DSP16 (QL1) 012 CIRCUIT DIAGRAM
28CC1-2001128890-12
1
DA I/F, PH I/F, DC-DC CONVERTER, DCM I/F
)RU'(0,7$6FRUUHVSRQGHQFH
（DEMITAS対応）
4/RQO\
4/RQO\
Reference : 901–930 (DA I/F)
Reference : 951–980 (DC-DC CONVERTER)
Reference : 931–950 (PH I/F)
Reference : 981–999 (DCM I/F)
TRANSCEIVER
TRANSCEIVER
TRANSCEIVER
DC-DC CONVERTER
DC-DC CONVERTER
INVERTER
to DCM-CN201
(Page 24: B-5)
to HP-CN001
(Page 55: O-2)
to DCM-CN232
(Page 24: L-8)
to DA1/2(OMNI OUT 9-16)
-CN901 (QL5)
to DA(OMNI OUT 1-8)
-CN901 (QL1)
(Page 23: G-5)
to DA1/2(OMNI OUT 9-16)
-CN903
(Page 23: F-5)
to DA2/2(OMNI OUT 1-8)
-CN903 (QL5)
to DA(OMNI OUT 1-8)
-CN903 (QL1)
(Page 23: F-5)

Yamaha QL5 Specifications

General

DJ mixer	-
Product color	Black
Video capability	No
Channels quantity	72 channels
Supported sample rates	44.1, 48 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	200 W
Total Harmonic Distortion (THD)	0.05 %

Weight and Dimensions

Depth	563 mm
Width	828 mm
Height	272 mm
Weight	21800 g
