EAU36504
Brake light switches
The brake light, which is activated by
the brake pedal and brake lever, should
come on just before braking takes ef-
fect. If necessary, have a Yamaha deal-
er adjust the brake light switches.
EAU22393
Checking the front and rear
brake pads
The front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
EAU36891
Front brake pads
Each front brake pad is provided with
wear indicators, which allows you to
check the brake pad wear without hav-
ing to disassemble the brake. To check
the brake pad wear, check the position
of the wear indicators while applying
the brake. If a brake pad has worn to
the point that a wear indicator almost
touches the brake disc, have a Yamaha
dealer replace the brake pads as a set.
EAU48071
Rear brake pads
Each rear brake pad is provided with a
wear indicator groove, which allows
you to check the brake pad wear with-
out having to disassemble the brake.
To check the brake pad wear, check
the wear indicator groove. If a brake
pad has worn to the point that the wear
indicator groove almost appears, have
a Yamaha dealer replace the brake
pads as a set.

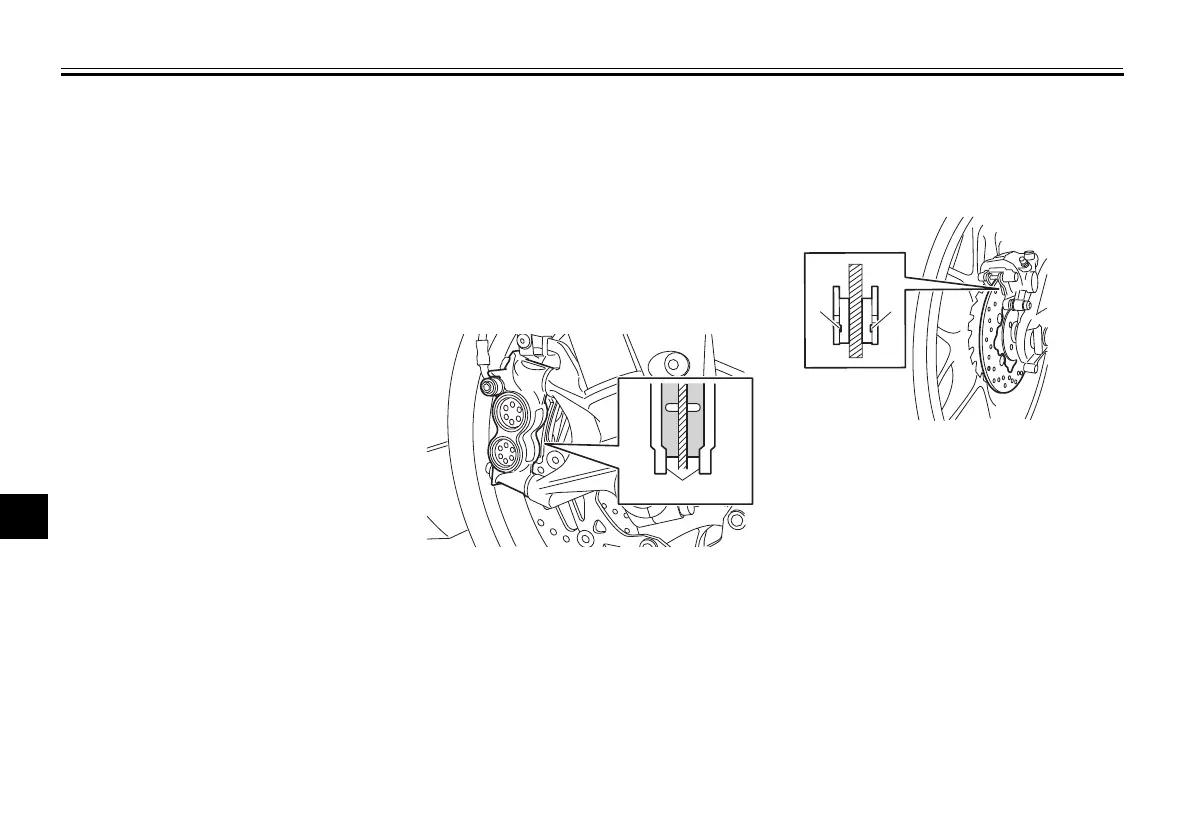

1. Brake pad wear indicator
1
1. Brake pad wear indicator groove
11
2CR-9-21.book 23 ページ ２０１５年９月２日 水曜日 午後２時２５分

Yamaha R1 Specifications

General

Bore x Stroke	79.0 mm x 50.9 mm
Compression Ratio	13.0:1
Front Tire	120/70ZR17
Wheelbase	55.3 in
Seat Height	33.7 in
Fuel Capacity	4.5 gal
Curb Weight	448 lb
Width	27.2 in
Height	45.3 in
Fuel Delivery	Fuel Injection
Transmission	6-speed
Front Suspension	43mm KYB inverted fork, fully adjustable
Rear Suspension	KYB single shock; fully adjustable
Front Brakes	Dual 320mm hydraulic disc; ABS
Rear Brakes	220mm disc; single-piston caliper; ABS
Torque	83 lb-ft
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve, inline 4-cylinder
