Yamaha R1 User Manual

Periodic maintenance and adjustment
8-33
1
2
3
4
5
6
7
8
9
10
11
12
EAU66592

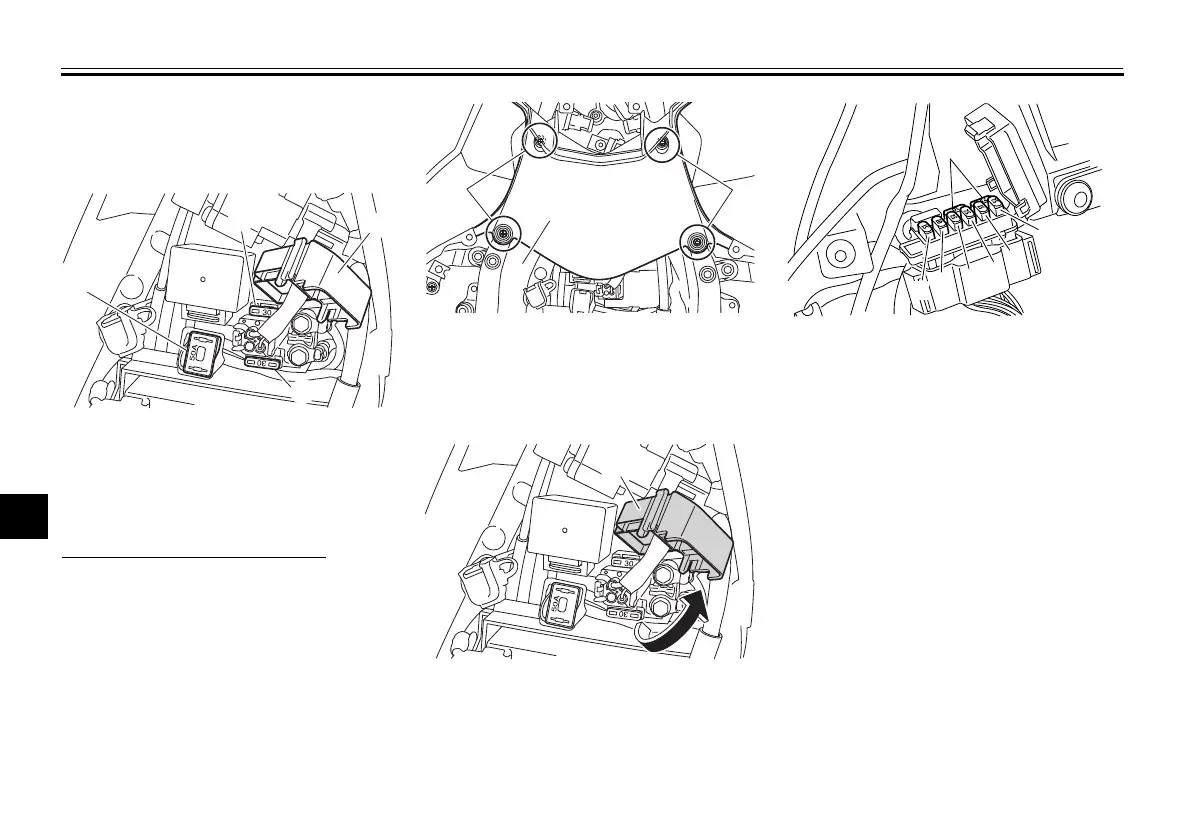

Replacing the fuses
The main fuse and ABS motor fuse are
located under the rider seat.
To access the ABS motor fuse
1. Remove the passenger seat and
rider seat. (See page 5-36.)
2. Remove the panel by removing
the screws.
3. Remove the starter relay cover by
pulling it upward.
The fuse boxes, which contain the fus-
es for the individual circuits, are located
under panel A. (See page 8-8.)
1. Main fuse
2. ABS motor fuse
3. Starter relay cover
4. ABS motor spare fuse
1
2
4
3
1. Screw
2. Panel
1. Starter relay cover
1
1
2
1
1. Hazard fuse
2. Fuel injection system fuse
3. Electronic throttle valve fuse
4. Backup fuse
5. Sub radiator fan motor fuse
6. Radiator fan motor fuse
7. Spare fuse
1
2
3
4
5
6
7
2CR-9-21.book 33 ページ ２０１５年９月２日 水曜日 午後２時２５分

Yamaha R1 Specifications

General

Bore x Stroke	79.0 mm x 50.9 mm
Compression Ratio	13.0:1
Front Tire	120/70ZR17
Wheelbase	55.3 in
Seat Height	33.7 in
Fuel Capacity	4.5 gal
Curb Weight	448 lb
Width	27.2 in
Height	45.3 in
Fuel Delivery	Fuel Injection
Transmission	6-speed
Front Suspension	43mm KYB inverted fork, fully adjustable
Rear Suspension	KYB single shock; fully adjustable
Front Brakes	Dual 320mm hydraulic disc; ABS
Rear Brakes	220mm disc; single-piston caliper; ABS
Torque	83 lb-ft
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve, inline 4-cylinder
