Yamaha R1 User Manual

Instrument and control functions
5-31
1
2
3
4
5
6
7
8
9
10
11
12
EAU67033

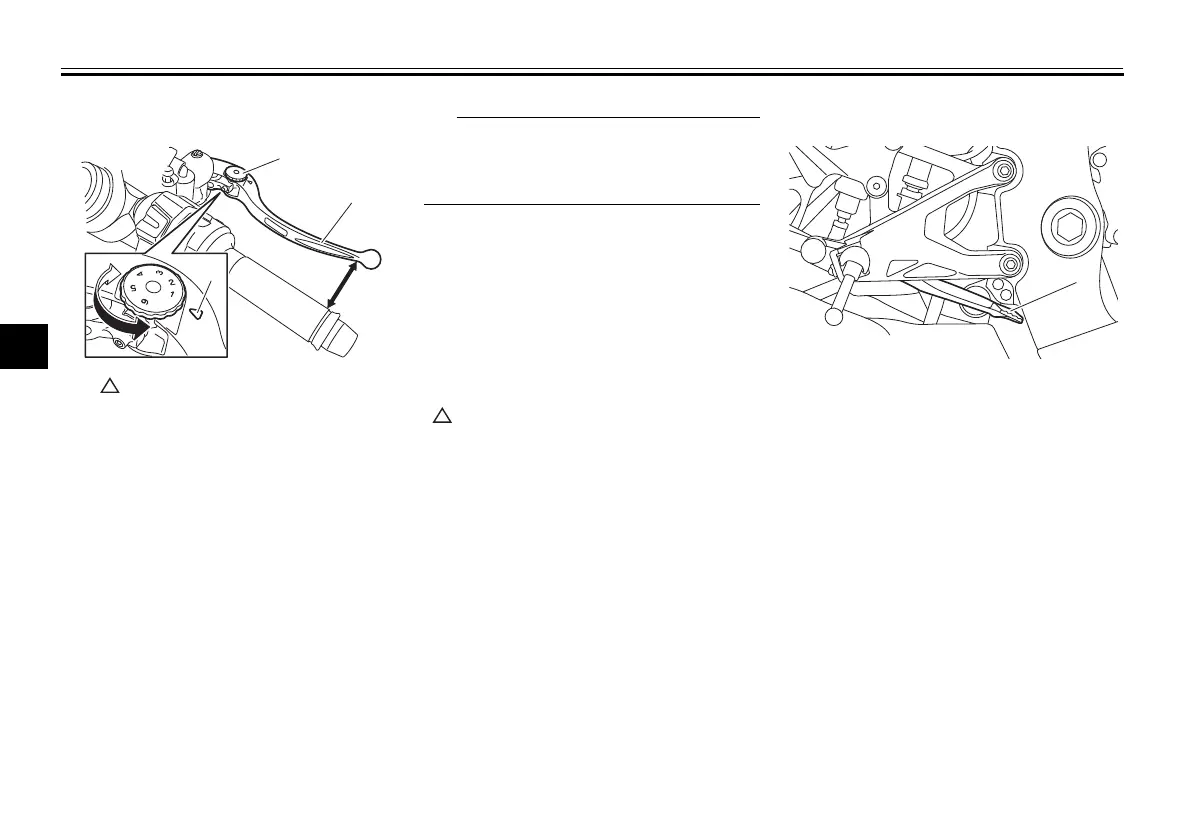

Brake lever
The brake lever is located on the right
side of the handlebar. To apply the front
brake, pull the lever toward the throttle
grip.
This model is equipped with a variable
unified brake system (UBS).
When pulling the brake lever, the front
brake and a portion of the rear brake
are applied. For full braking perfor-
mance, apply both the brake lever and
brake pedal simultaneously.
TIP
See Brake system for more informa-
tion on how the UBS and ABS systems
work.
The brake lever is equipped with a
brake lever position adjusting dial. To
adjust the distance between the brake
lever and the throttle grip, turn the ad-
justing dial while holding the lever
pushed away from the throttle grip.
Make sure that the appropriate setting
on the adjusting dial is aligned with the
“ ” mark on the brake lever.
EAU12944
Brake pedal
The brake pedal is located on the right
side of the motorcycle. To apply the
rear brake, press down on the brake
pedal.
1. “ ” mark
2. Brake lever position adjusting dial
3. Brake lever
4. Distance between brake lever and
handlebar grip
1
2
3
4
1. Brake pedal
1
2CR-9-21.book 31 ページ ２０１５年９月２日 水曜日 午後２時２５分

Yamaha R1 Specifications

General

Bore x Stroke	79.0 mm x 50.9 mm
Compression Ratio	13.0:1
Front Tire	120/70ZR17
Wheelbase	55.3 in
Seat Height	33.7 in
Fuel Capacity	4.5 gal
Curb Weight	448 lb
Width	27.2 in
Height	45.3 in
Fuel Delivery	Fuel Injection
Transmission	6-speed
Front Suspension	43mm KYB inverted fork, fully adjustable
Rear Suspension	KYB single shock; fully adjustable
Front Brakes	Dual 320mm hydraulic disc; ABS
Rear Brakes	220mm disc; single-piston caliper; ABS
Torque	83 lb-ft
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve, inline 4-cylinder
