Installing a Mini-YGDAI card
Before you install the card, you must check the Yamaha
Pro Audio global website to see whether your CS-R5
supports that card, and to verify the number of other
Yamaha cards or third-party cards that can be used in
conjunction with this card.
http://www.yamahaproaudio.com/
1. Make sure that the power is turned off.
Caution
Installing or removing a card while the power is on may
lead to component failure or electric shock.

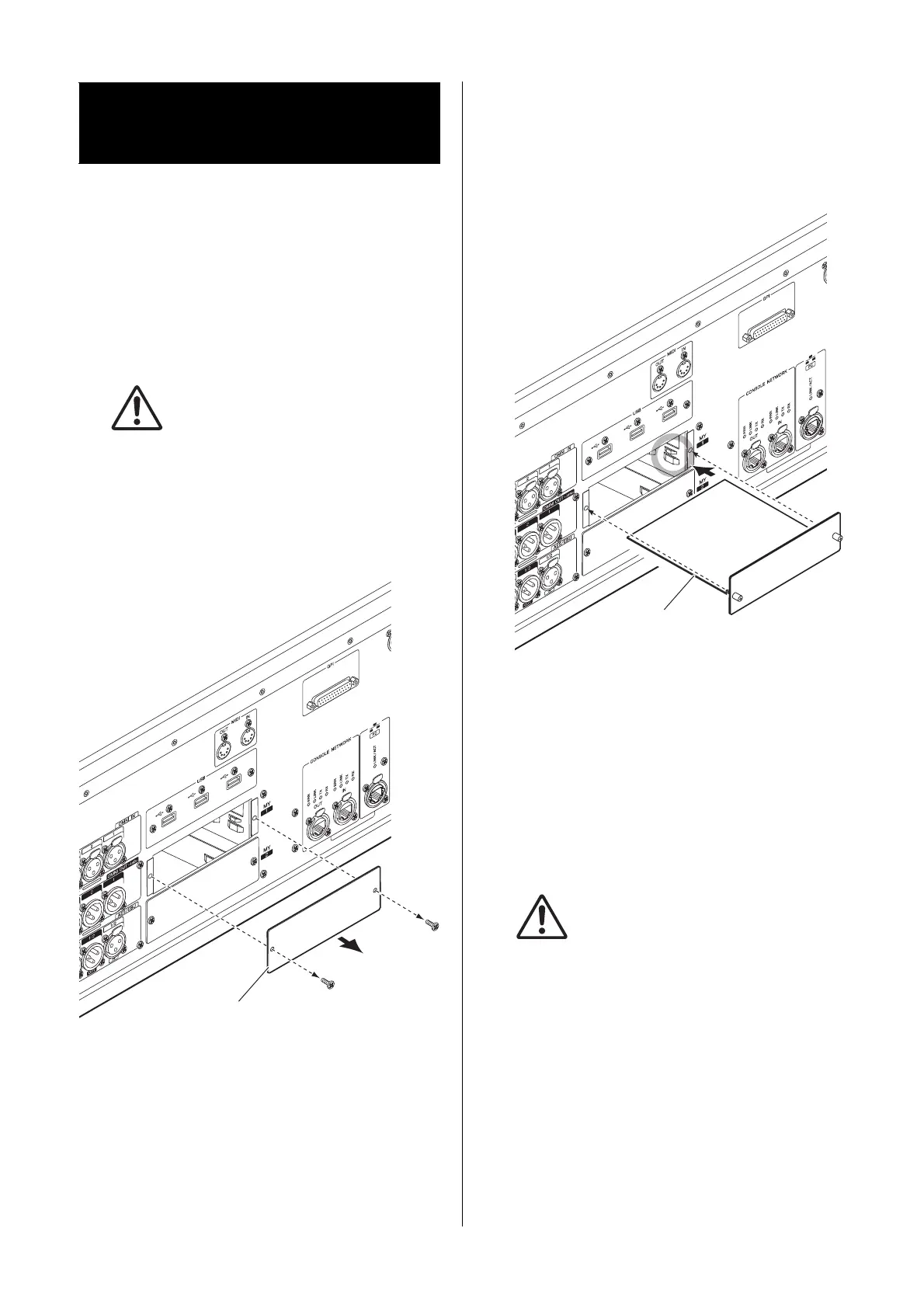

2. Loosen the screws that fasten the slot cover,
and remove the slot cover.
Keep the cover and fixing screws in a safe place for
future use.
3. Align both edges of the card with the guide
rails inside the slot, and then insert the card
into the slot.
Push the card all the way into the slot so that the
connector at the end of the card is correctly inserted
into the connector inside the slot.
4. Fasten the card using the screws attached to
the card.
If the card is not fastened securely, component failure
or malfunction may occur.
Removing the Mini-YGDAI
card
1. Make sure that the power is turned off.
Caution
Installing or removing a card while the power is on may
lead to component failure or electric shock.
2. Completely loosen the screws that hold the
card in place.
3. Pull the card toward you while holding the
screws on the card.
4. Replace the stored slot cover and affix it with
the screws.
