Yamaha RX-V681 Service Manual

15
RX-V681/RX-A760
RX-V681/RX-A760

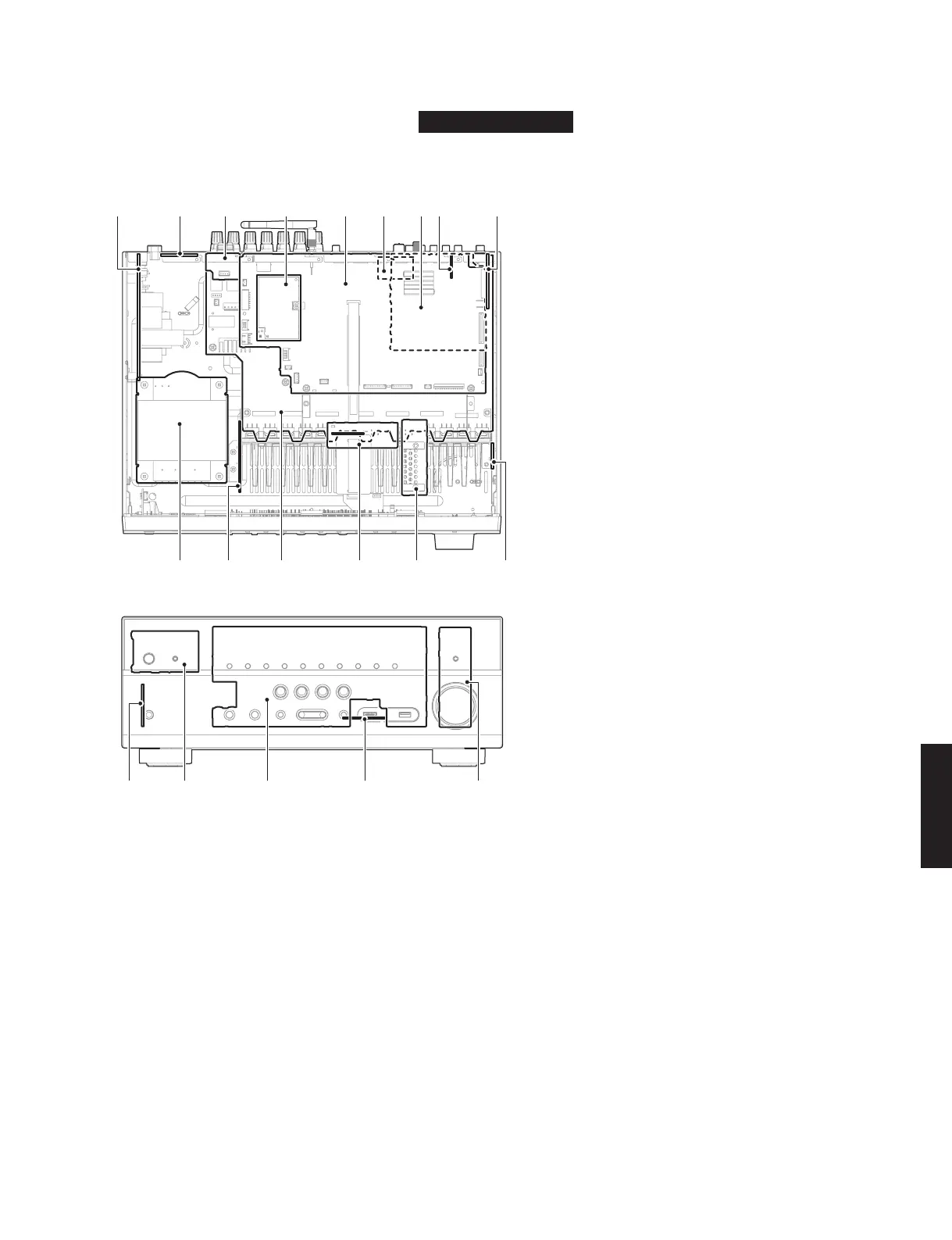

■ INTERNAL VIEW
a
OPERATION (3) P.C.B.
b
MAIN (2) P.C.B. (R, V, S models)
c
OPERATION (8) P.C.B.
d
Network Module
e
DIGITAL (1) P.C.B.
f
AM/FM TUNER
g
OPERATION (2) P.C.B.
h
OPERATION (9) P.C.B.
i
OPERATION (4) P.C.B.
j
MAIN (5) P.C.B.
k
MAIN (4) P.C.B.
l
MAIN (3) P.C.B.
m
MAIN (1) P.C.B.
n
MAIN (6) P.C.B.
o
POWER TRANSFORMER
p
OPERATION (7) P.C.B.
q
OPERATION (6) P.C.B.
r
OPERATION (1) P.C.B.
s
DIGITAL (2) P.C.B.
t
OPERATION (5) P.C.B.
RX-V681
Top view
Front view
2
j
tp
n klmo
r sq
1 8 93 4 5 6 7

Yamaha RX-V681 Specifications

General

Receiver type	Surround
Frequency range	20 - 20000 Hz
4Ω speaker support	Yes
Audio output channels	7.2 channels
Total Harmonic Distortion (THD)	0.06 %
Dynamic power per channel (4 Ohm)	190 W
Dynamic power per channel (8 Ohm)	125 W
Power output per channel (20-20KHz@8 Ohm)	150 W
HDMI in	6
Audio (L/R) in	5
Remote (IR) input	1
Composite video in	4
Component video (YPbPr/YCbCr) in	2
Audio (L/R) out	0
Headphone connectivity	3.5 mm
Product color	Silver
Audio decoders	DTS Neo:X, DTS-HD Master Audio, Dolby Digital Plus, Dolby Pro Logic IIx, Dolby TrueHD
Apple docking compatibility	-
Banana connector	14
Connectivity technology	Wired & Wireless
Speakers connectivity type	Banana connector/Binding posts
Supported radio bands	AM, FM
Optical drive included	No
Supported video modes	2160p
Power consumption (standby)	0.1 W

Weight and Dimensions

Depth	378 mm
Width	435 mm
Height	171 mm
Weight	10000 g
