CONTROLS AND FUNCTIONS

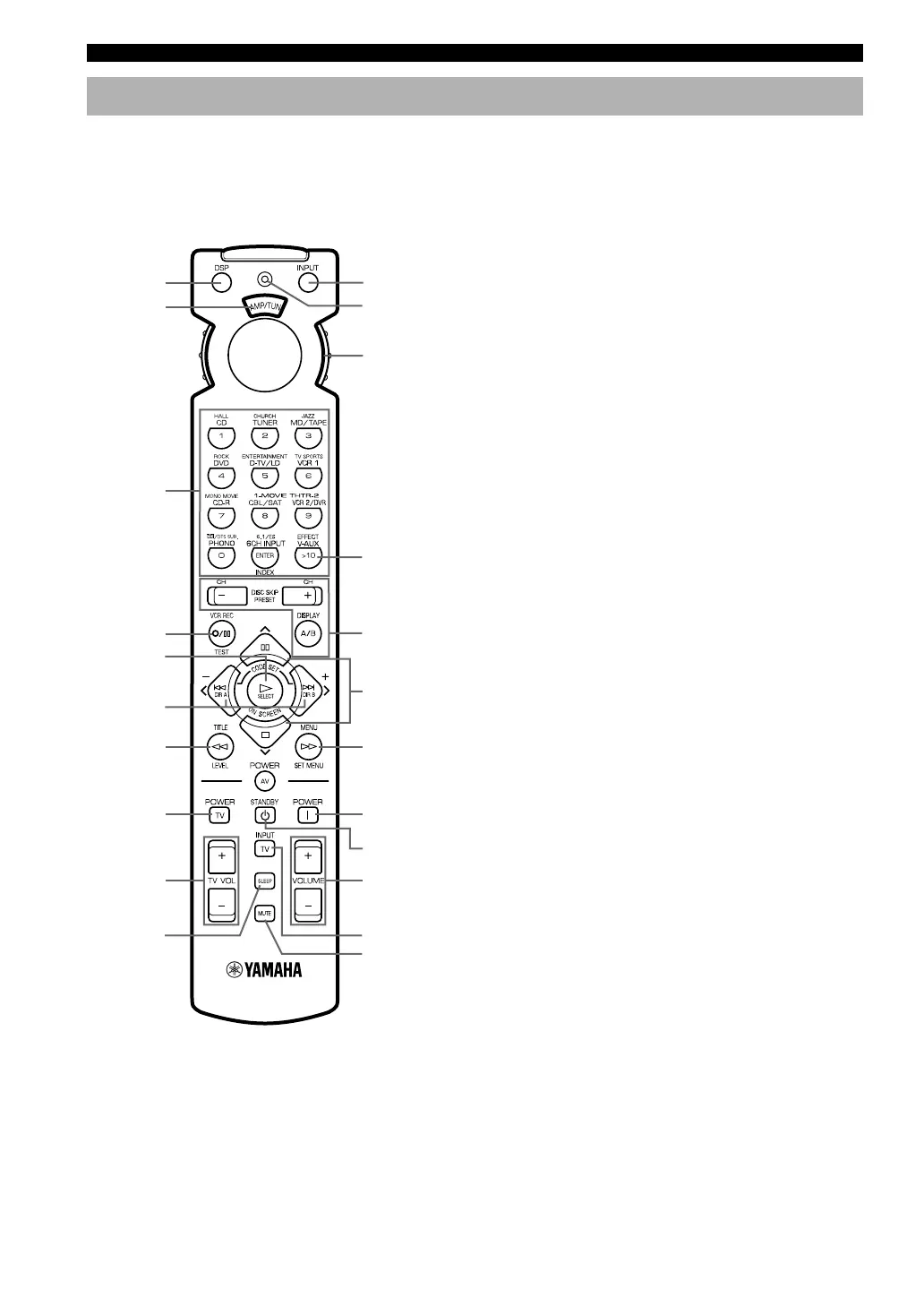

Remote Control
This section describes the basic operation of this unit with
the remote control. First, set the selector dial to the AMP/
TUN position. See “REMOTE CONTROL FEATURES”
on pages 46 to 53 for full details.
3 Numeric buttons (Input selector buttons)
These buttons select the input source.
See pages 7 and 8 for the numeric buttons.
4 TEST
Outputs the test tone.
5 ON SCREEN
Selects the on-screen display (OSD) mode for your video
monitor.
6 j / i
Adjust DSP program parameters and SET MENU items.
7 LEVEL
Selects the effect speaker channel (center, rear and
subwoofer) so you can adjust their output level
independently.
8 SLEEP
Sets the sleep timer.
9 INPUT
Switches the function of the numeric buttons to the input
selector (see page 7).
0 Indicator
Flashes while the remote control is sending signals.
q Selector dial
Turn this dial to select the position for the component to
be controlled. (The proper code must be set up for your
component. See “Setting the Manufacture Codes” on
page 51.) When the position is selected, the remote
control is set to that component operation mode.
w A/B/C/D/E, PRESET–/+
These buttons are used to select a preset station.
A/B/C/D/E: To select one of 5 preset station groups (A
to E)
PRESET –/+: To select a preset station number (1 to 8)
e u/d
Select DSP program parameters and SET MENU items.
r SET MENU
Enters the SET MENU.
t POWER
Turns on the power of this unit.
y STANDBY
Sets this unit in the standby mode.
Select the
AMP/TUN
position.
See
page 7.
A/B/C/D/E
TV INPUT
TV VOLUME
TV POWER
EFFECT
w
e
1
2
3
4
5
6
7
8
0
q
9
r
t
y
u
i
1 DSP
Switches the function of the numeric buttons to the DSP
program selector (see page 7).
2 Indicator window
Shows the name of components which can be controlled.
