Yamaha RX-V800 User Manual

19
English
INTRODUCTION
PREPARATION
BASIC
OPERAIONT
ADVANCED
OPERATION
ADDITIONAL
INFORMATION
APPENDIX
CONNECTIONS
MAIN A OR B: 4 MIN. /SPEAKER
A
+
B: 8 MIN. /SPEAKER
CENTER : 6 MIN. /SPEAKER
REAR : 6 MIN. /SPEAKER
MAIN A OR B: 8 MIN. /SPEAKER
A
+
B:
16 MIN. /SPEAKER
CENTER : 8 MIN. /SPEAKER
REAR : 8 MIN. /SPEAKER
IMPEDANCE SELECTOR
SET BEFORE POWER ON
SWITCHED
100W MAX. TOTAL
AC OUTLETS
VOLTAGE SELECTOR

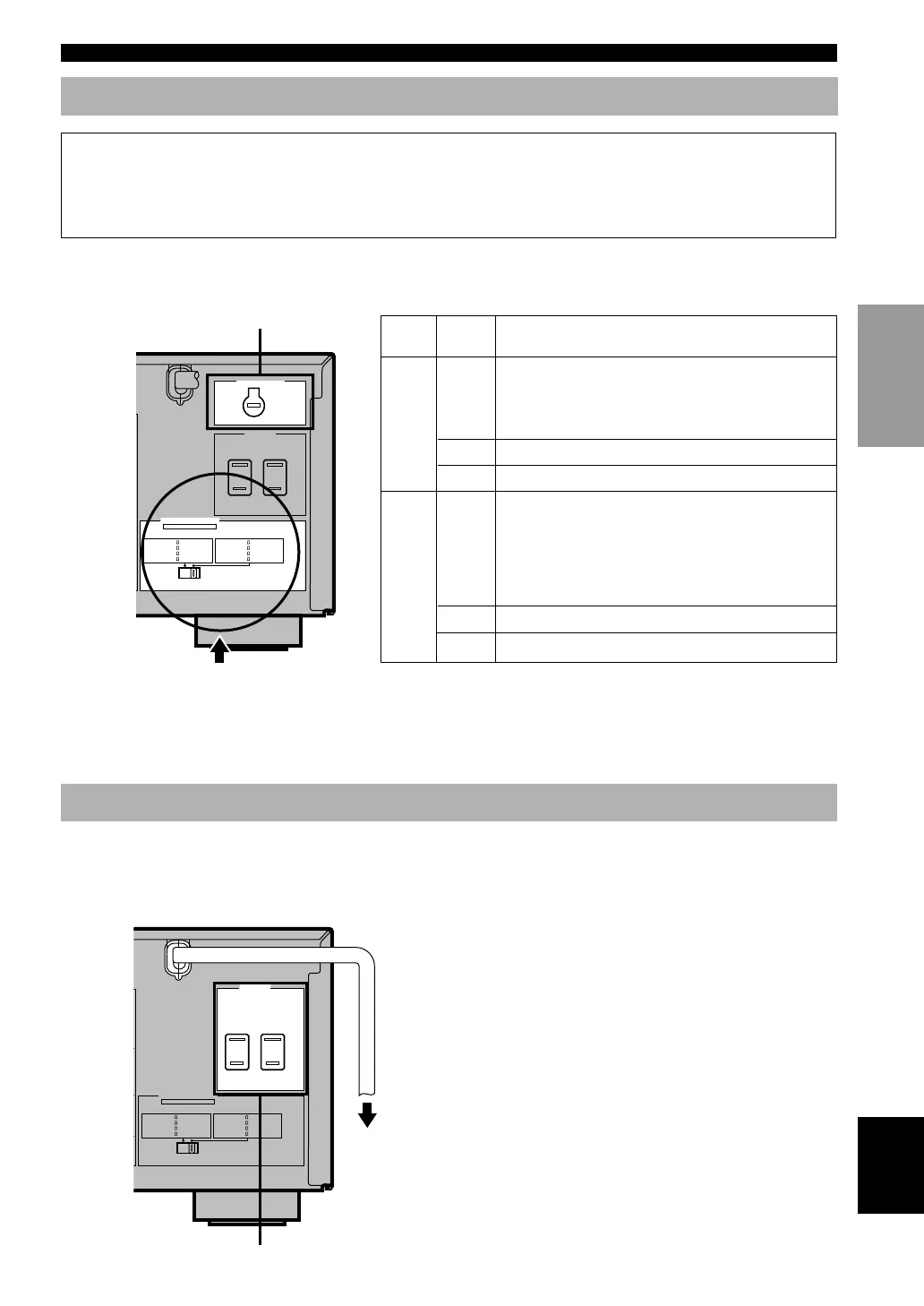

IMPEDANCE SELECTOR Switch
WARNING
Do not change the IMPEDANCE SELECTOR switch setting while the power of this unit is on, otherwise the unit
may be damaged.
If this unit fails to turn on when STANDBY/ON (or POWER) is pressed, the IMPEDANCE SELECTOR switch may
not be fully slid to either position. If so, slide the switch to either position fully when this unit is in the standby mode.
Select the left and right position according to the impedance of the speakers in your system. Be sure to move this switch
only when this unit is in the standby mode.
Switch
position
Speaker Impedance level
Main
If you use one set of main speakers, the impedance of
each speaker must be 4 Ω or higher.
If you use two sets of main speakers, the impedance of
each speaker must be 8 Ω or higher.
Center
The impedance must be 6 Ω or higher.
Rear The impedance of each speaker must be 6 Ω or higher.
Right
Main
If you use one set of main speakers, the impedance of
each speaker must be 8 Ω or higher.
If you use two sets of main speakers, the impedance of
each speaker must be 16 Ω or higher.
[Canada model only]
The impedance of each speaker must be 8 Ω or higher.
Center The impedance must be 8 Ω or higher.
Rear The impedance of each speaker must be 8 Ω or higher.
Left
Connecting the Power Supply Cords
After completing all connections, connect the AC power cord to an AC power outlet. Disconnect the AC power cord if
you will not use this unit for a long period of time.
■ AC OUTLET(S) (SWITCHED)
U.S.A., Canada, Singapore, China and
general models ............................................. 2 OUTLETS
Australia model .............................................. 1 OUTLET
Use these outlets to connect the power cords from your
components to this unit. The power to the AC
OUTLET(S) is controlled by this unit’s STANDBY/ON
(or POWER and STANDBY). These outlets will supply
power to any connected component whenever this unit is
turned on. The maximum power (total power
consumption of components) that can be connected to the
AC OUTLET(S) is 100 W.
MAIN A OR B: 4 MIN. /SPEAKER
A
+
B: 8 MIN. /SPEAKER
CENTER : 6 MIN. /SPEAKER
REAR : 6 MIN. /SPEAKER
MAIN A OR B: 8 MIN. /SPEAKER
A
+
B:
16 MIN. /SPEAKER
CENTER : 8 MIN. /SPEAKER
REAR : 8 MIN. /SPEAKER
IMPEDANCE SELECTOR
SET BEFORE POWER ON
SWITCHED
120V 60Hz
100W MAX. TOTAL
AC OUTLETS
SWITCHED
(U.S.A. model)
(General model)
IMPEDANCE SELECTOR
To AC outlet
■ VOLTAGE SELECTOR (China and general models only)
The VOLTAGE SELECTOR on the rear panel of this unit must be set for your local main voltage BEFORE plugging
into the AC main supply. Voltages are 110/120/220/240 V AC, 50/60 Hz.
VOLTAGE SELECTOR
