INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU11090
High beam indicator light “HIGH
BEAM”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11630
Speedometer unit
The speedometer unit is equipped with
a speedometer, an odometer and a
tripmeter. The speedometer shows
riding speed. The odometer shows the
total distance traveled. The tripmeter
shows the distance traveled since it
was last set to zero with the reset knob.
The tripmeter can be used to estimate
the distance that can be traveled with a
full tank of fuel. This information will en-
able you to plan future fuel stops.
EAU12343

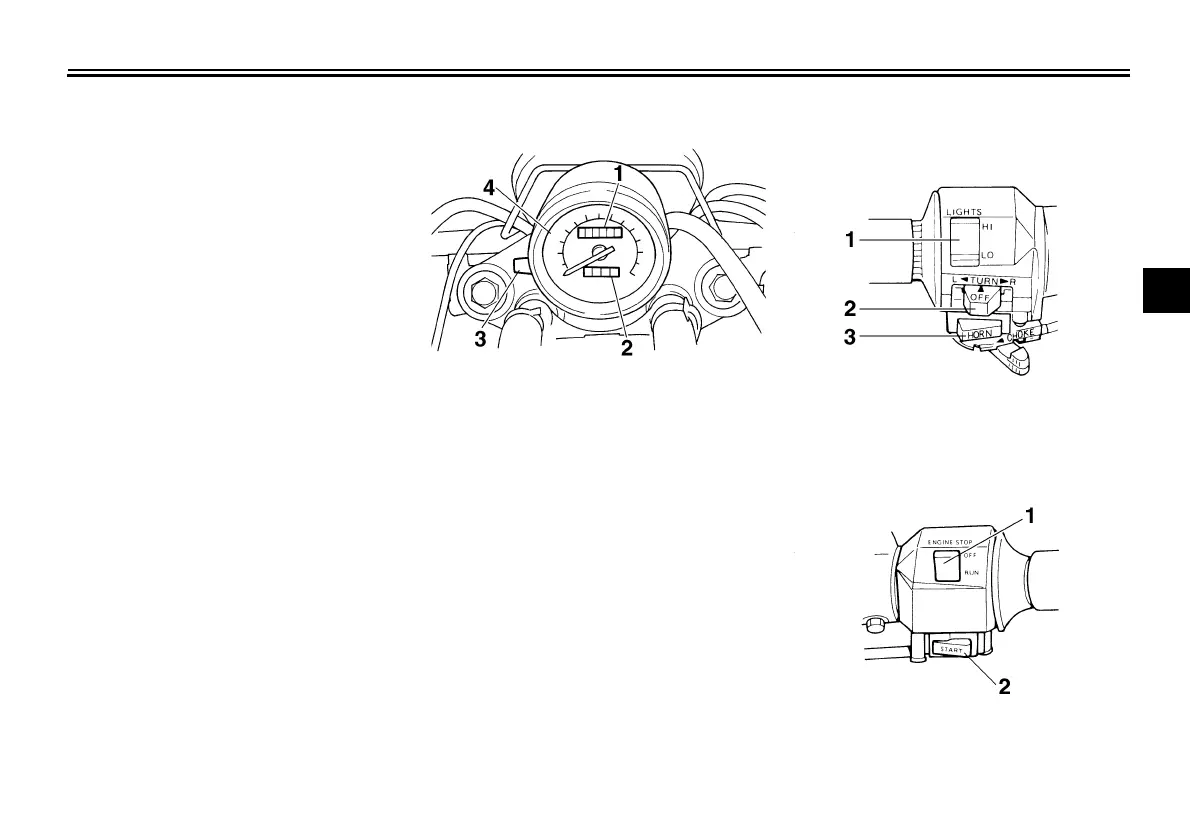

Handlebar switches
Left
Right
1. Odometer
2. Tripmeter
3. Tripmeter reset knob
4. Speedometer
1. Dimmer switch “LIGHTS”
2. Turn signal switch “TURN”
3. Horn switch “HORN”
1. Engine stop switch “ENGINE STOP”
2. Start switch “START”
