PERIODIC MAINTENANCE AND MINOR REPAIR
6-13
6
EAU32730
Cleaning the air filter element
The air filter element should be cleaned
at the intervals specified in the periodic
maintenance and lubrication chart.
Clean the air filter element more fre-
quently if you are riding in unusually
wet or dusty areas.

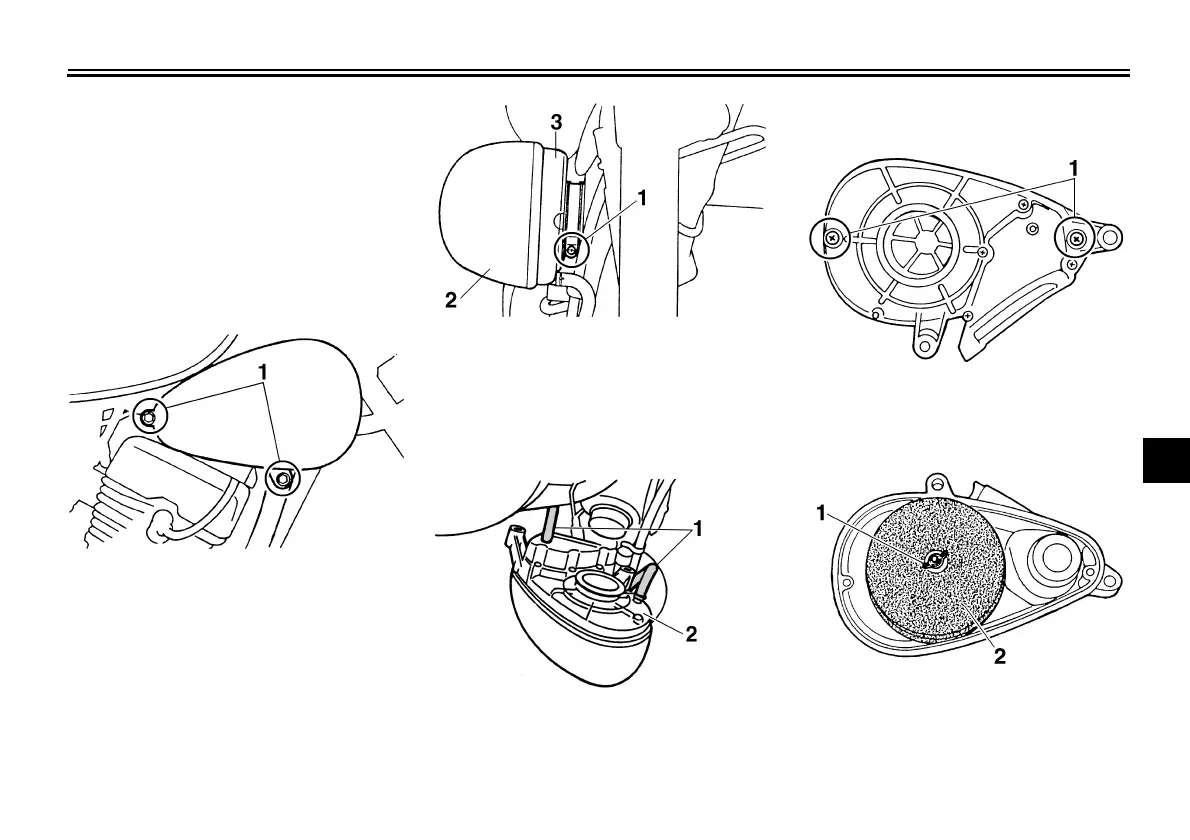

1. Remove the bolts and loosen the
air filter joint clamp screw.
2. Disconnect the hoses from the air
filter case, and then remove the air
filter case.
3. Remove the air filter case cover by
removing the screws.
4. Remove the air filter element by
removing the wing nut.
1. Bolt
1. Air filter joint clamp screw
2. Air filter case cover
3. Air filter case
1. Hose
2. Air filter case
1. Screw
1. Wing nut
2. Air filter element
