PERIODIC MAINTENANCE AND MINOR REPAIR
6-31
6
that the breather hose is properly
routed, in good condition, and not
obstructed.
CAUTION:
ECA10600
If the breather hose is positioned in
such a way that the frame is ex-
posed to electrolyte or gas expelled
from the battery, the frame could
suffer structural and external dam-
ages.
EAU23600
Replacing the fuses
The main fuse and the signaling sys-
tem fuse holders are located under the
rider seat. (See page 3-8.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
CAUTION:
ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly a
fire.
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.

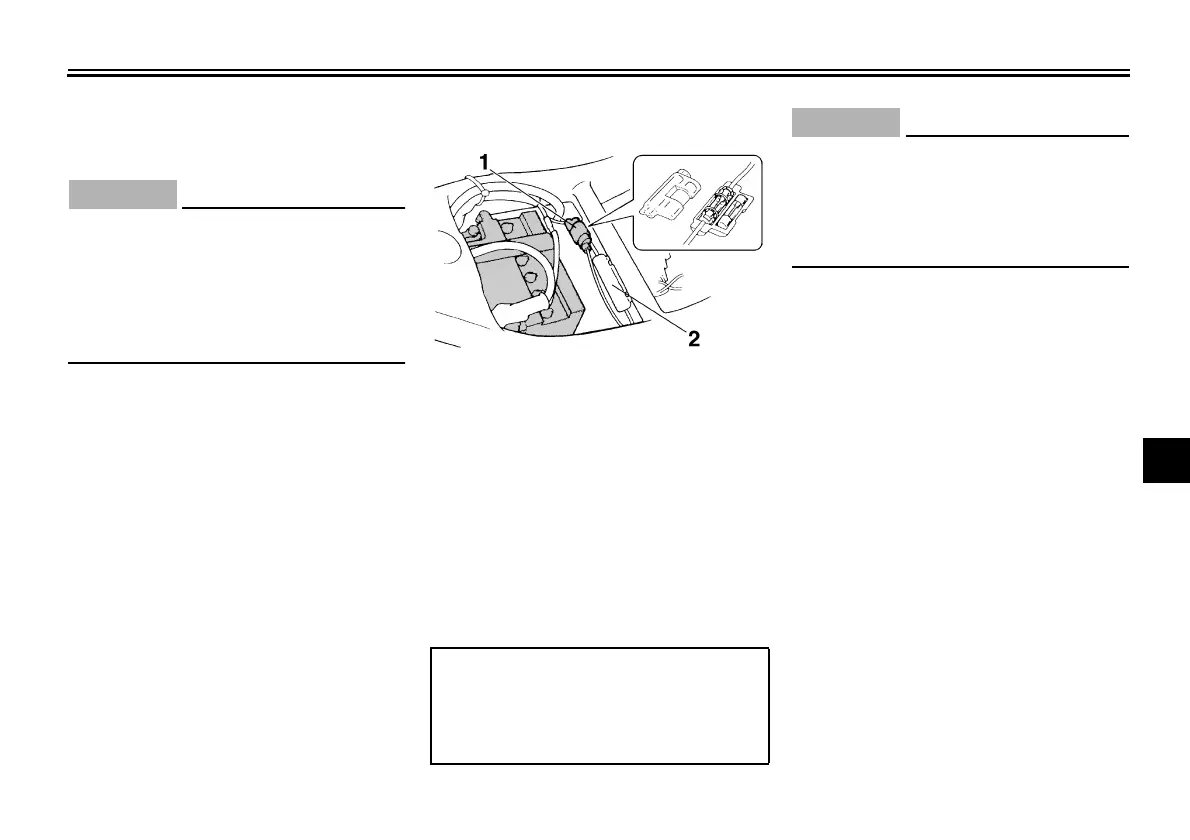

1. Main fuse
2. Signaling system fuse
Specified fuses:
Main fuse:
20.0 A
Signaling system fuse:
10.0 A
