PERIODIC MAINTENANCE AND MINOR REPAIR
6-18
6
any consequences caused by the
use of items which have not been
approved by Yamaha.
EAU22041
Adjusting the clutch lever free
play
The clutch lever free play should mea-
sure 10.0–15.0 mm (0.39–0.59 in) as
shown. Periodically check the clutch le-
ver free play and, if necessary, adjust it
as follows.
1. Loosen the locknut at the clutch le-
ver.
2. To increase the clutch lever free
play, turn the adjusting bolt in di-
rection (a). To decrease the clutch
lever free play, turn the adjusting
bolt in direction (b).
NOTE:
If the specified clutch lever free play
could be obtained as described above,
tighten the locknut and skip the rest of
the procedure, otherwise proceed as
follows.
3. Fully turn the adjusting bolt at the
clutch lever in direction (a) to loos-
en the clutch cable.
4. Loosen the locknut at the crank-
case.

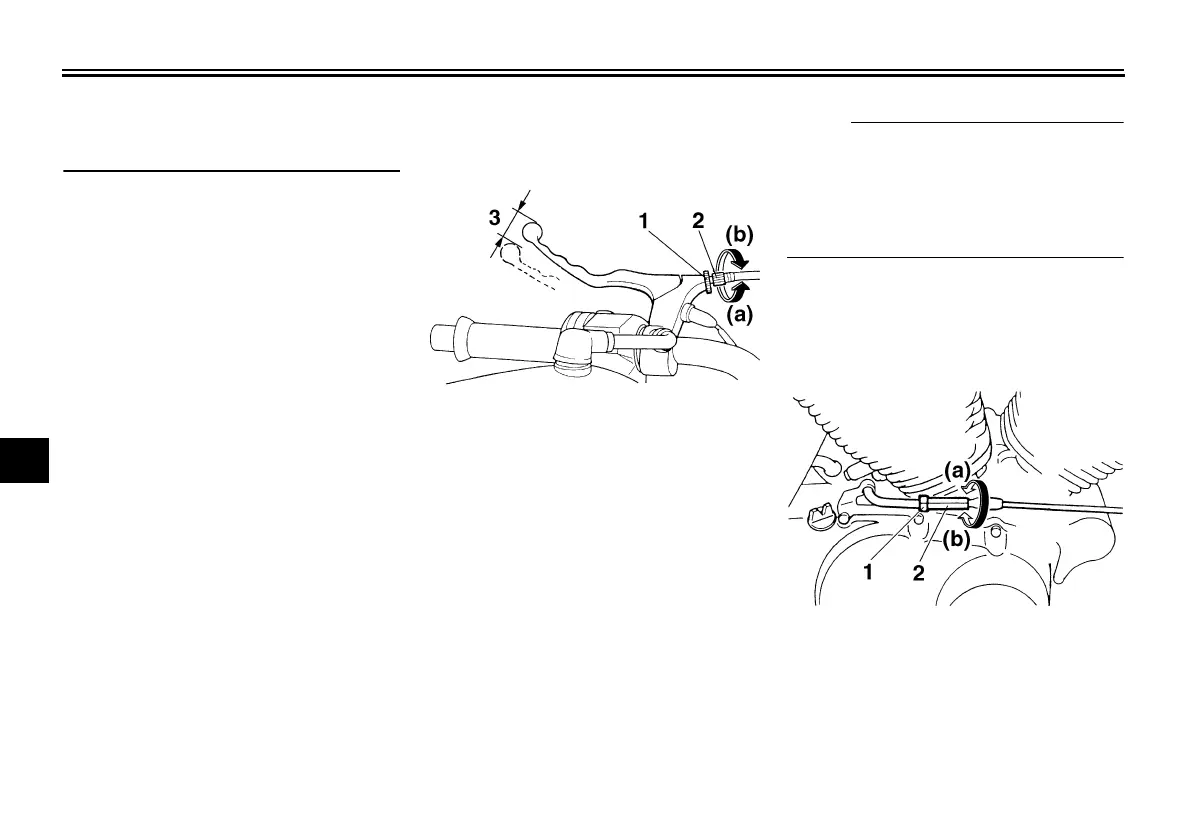

1. Locknut
2. Clutch lever free play adjusting bolt
3. Clutch lever free play
1. Locknut
2. Clutch lever free play adjusting nut (crank-
case)
U2UJ1DE0.book Page 18 Thursday, May 13, 2004 11:59 PM
