–5–

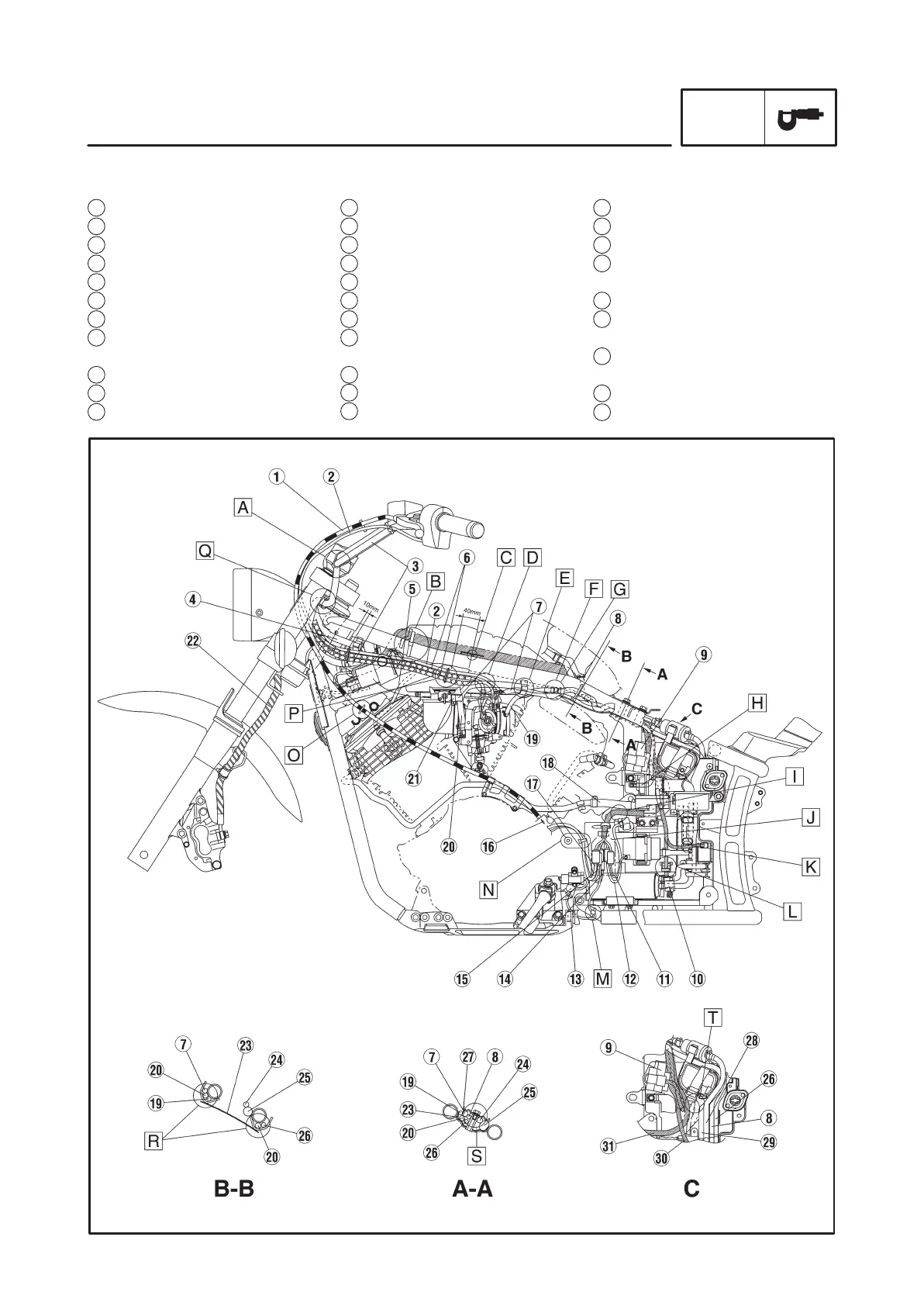

CABLE ROUTING
SPEC
1 Clutch cable
2 Starter cable
3 Handlebar switch lead (left)
4 Handlebar switch lead (right)
5 High tension code
6 Throttle cable
7 Fuel hose (fuel cock-filter)
8 Fuel breather hose (fuel tank-roll
over valve) (for CAL)
9 Fuse box
10 Alarm connector
11 Fuel pump lead
12 Speed sensor lead
13 Sidestand switch lead
14 Neutral switch lead
15 Pickup coil lead
16 To engine
17 A.C. magneto lead
18 Ventilation hose
19 Sensing hose (AIS-carburetor
joint)
20 Fuel hose (carburetor-fuel pump)
21 Clip
22 Brake hose
EB206000
CABLE ROUTING
23 Heat protector
24 Speed meter lead
25 Wireharness
26 Purge hose (carburetor-sole-
noid valve) (for CAL)
27 Fitting plate
28 Fuel hose (inlet) (fuel filter-fuel
pump)
29 Fuel hose (outlet) (carburetor-
fuel pump)
30 Alarm connector lead
31 Wireharness

Yamaha XVS1100 2001 Specifications

General

Year	2001
Manufacturer	Yamaha
Model	XVS1100
Category	Cruiser
Displacement	1063 cc
Bore x Stroke	95.0 mm x 75.0 mm
Compression Ratio	8.3:1
Fuel System	Carburetor
Starting System	Electric
Transmission	5-speed
Final Drive	Shaft
Front Suspension	Telescopic fork
Rear Suspension	Swingarm
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	130/90-16
Rear Tire	170/80-15
Engine Type	V-twin
Seat Height	710 mm
Fuel Capacity	17 liters
