Yamaha XVS1100 2001 - STEERING HEAD

–24–
Order Job name/Part name Q’ty Remarks
1
2
3
4
5
6
7
8

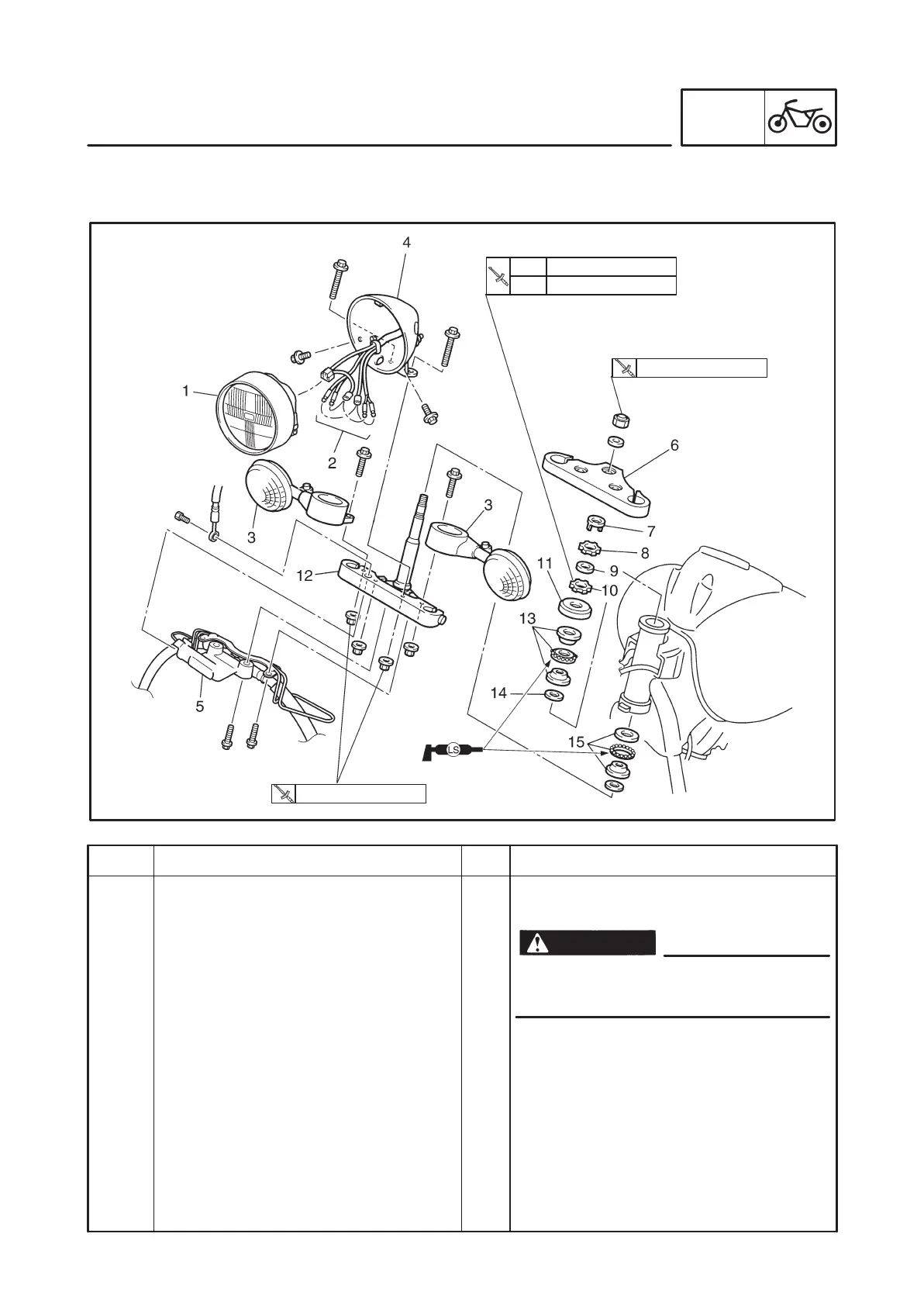

Removing the lower bracket
Front fork legs
Handlebar
Headlight lens unit
Leads (in the headlight body)
Front turn signal/position light (left/right)
Headlight body
Brake hose joint/holder
Upper bracket
Lock washer
Upper ring nut
1
–
1/1
1
1/1
1
1
1
Remove the parts in the order listed.
Stand the motorcycle on a level surface.
Securely support the motorcycle so
that there is no danger of it falling over.
Refer to “FRONT FORK”.
Refer to “HANDLEBAR”.
Disconnect
WARNING
1st
2nd
52 Nm (5.2 mkg)
18 Nm (1.8 mkg)
110 Nm (11.0 mkg)
7 Nm (0.7 mkg)
STEERING HEAD
CHAS
STEERING HEAD
