PERIODIC MAINTENANCE AND MINOR REPAIR
6-45
6
EC000102
CAUTION:
@
●
Always keep the battery
charged. Storing a discharged
battery can cause permanent
battery damage.
●
To charge a sealed-type (MF)
battery, a special (constant-
voltage) battery charger is re-
quired. Using a conventional
battery charger will damage the
battery. If you do not have ac-
cess to a sealed-type (MF) bat-
tery charger, have a Yamaha
dealer charge your battery.
@
EAU05007
Replacing the fuses
The main fuse is located under the rid-
er seat. (See page 3-16 for rider seat
removal and installation procedures.)
The fuse box, which contains the fuses
for the individual circuits, is located un-
der panel B. (See page 6-11 for panel
removal and installation procedures.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.

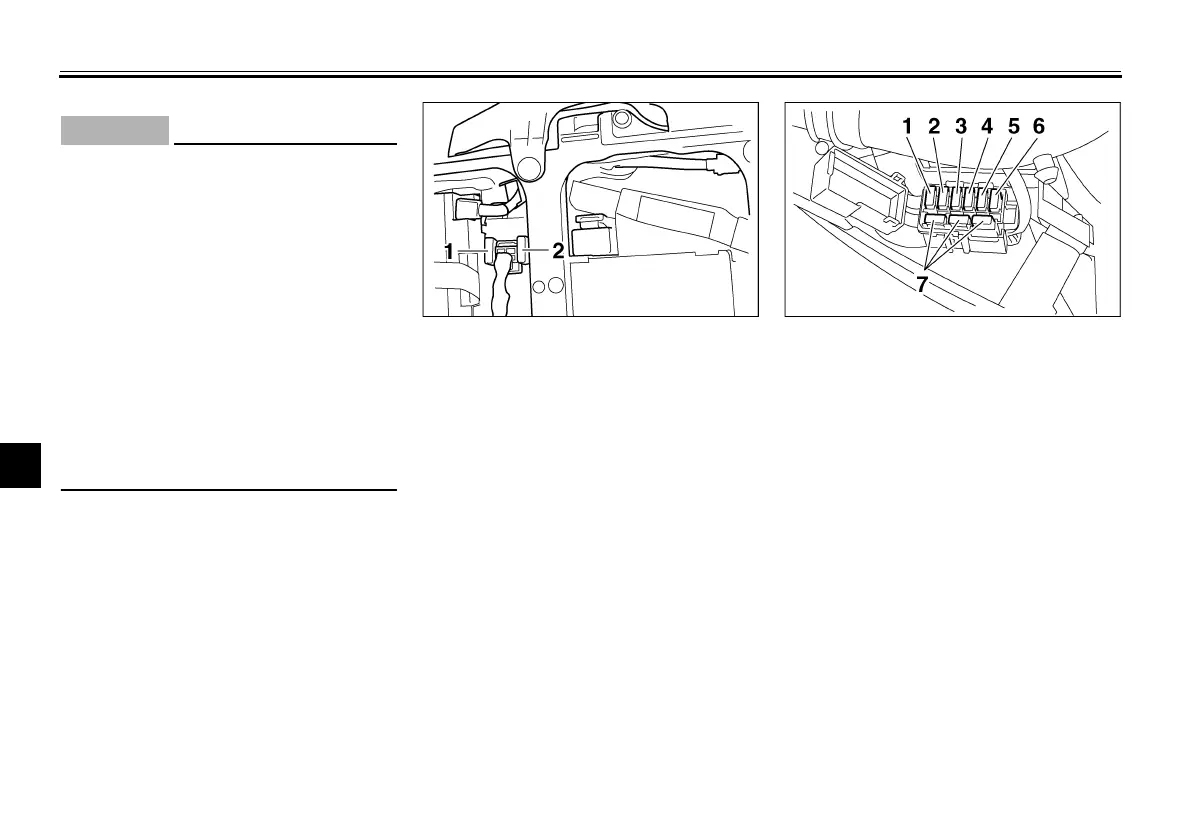

1. Spare main fuse
2. Main fuse
1. Headlight fuse
2. Radiator fan fuse
3. Ignition fuse
4. Signaling system fuse
5. Odometer and clock fuse (backup fuse)
6. Electronic fuel injection fuse
7. Spare fuse (× 3)
