To adjust the shift timing indicator light
brightness
1. Push the “RESET” button to select
the desired indicator light bright-
ness level.
2. Push the “SELECT” button to con-
firm the selected indicator light
brightness level. The multi-func-
tion display will return to the odom-
eter, tripmeter or clock mode.
EAU04969
Tachometer
The electric tachometer allows the rider
to monitor the engine speed and keep it
within the ideal power range.
When the key is turned to “ON”, the ta-
chometer needle will move to
18,500 r/min and back to zero r/min in
order to test the electrical circuit.
EC000003
CAUTION:
_
Do not operate the engine in the ta-
chometer red zone.
Red zone: 15,500 r/min and above
_
EAU00118
Handlebar switches
EAU03888
Dimmer switch “ / ”
Set this switch to “” for the high
beam and to “” for the low beam.

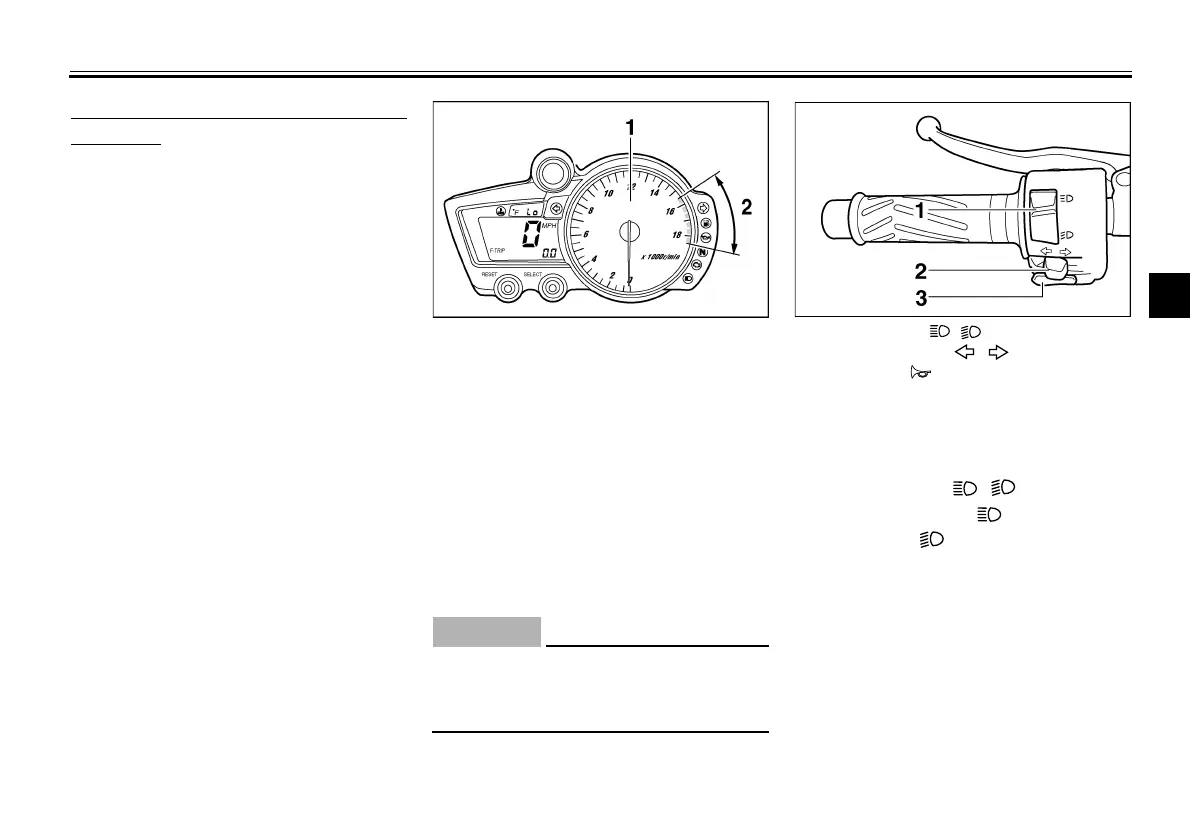

1. Tachometer
2. Tachometer red zone
1. Dimmer switch “ / ”
2. Turn signal switch “ / ”
3. Horn switch “”
