INSTRUMENT AND CONTROL FUNCTIONS
4-5
4
EAU42774
Engine trouble warning light “ ”
This warning light comes on if a prob-
lem is detected in the electrical circuit
monitoring the engine. If this occurs,
have a Yamaha dealer check the self-
diagnosis system. (See page 4-8 for an
explanation of the self-diagnosis de-
vice.)
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. The warning light should come
on for a few seconds, and then go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
EAU11574
Shift timing indicator light
This indicator light can be set to come
on and go off at the desired engine
speeds and is used to inform the rider
when it is time to shift to the next higher
gear.
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”. The indicator light should
come on for a few seconds, and then
go off.
If the indicator light does not come on
initially when the key is turned to “ON”,
or if the indicator light remains on, have
a Yamaha dealer check the electrical
circuit. (See page 4-9 for a detailed ex-
planation of the function of this indicator
light and on how to set it.)
EAU39256

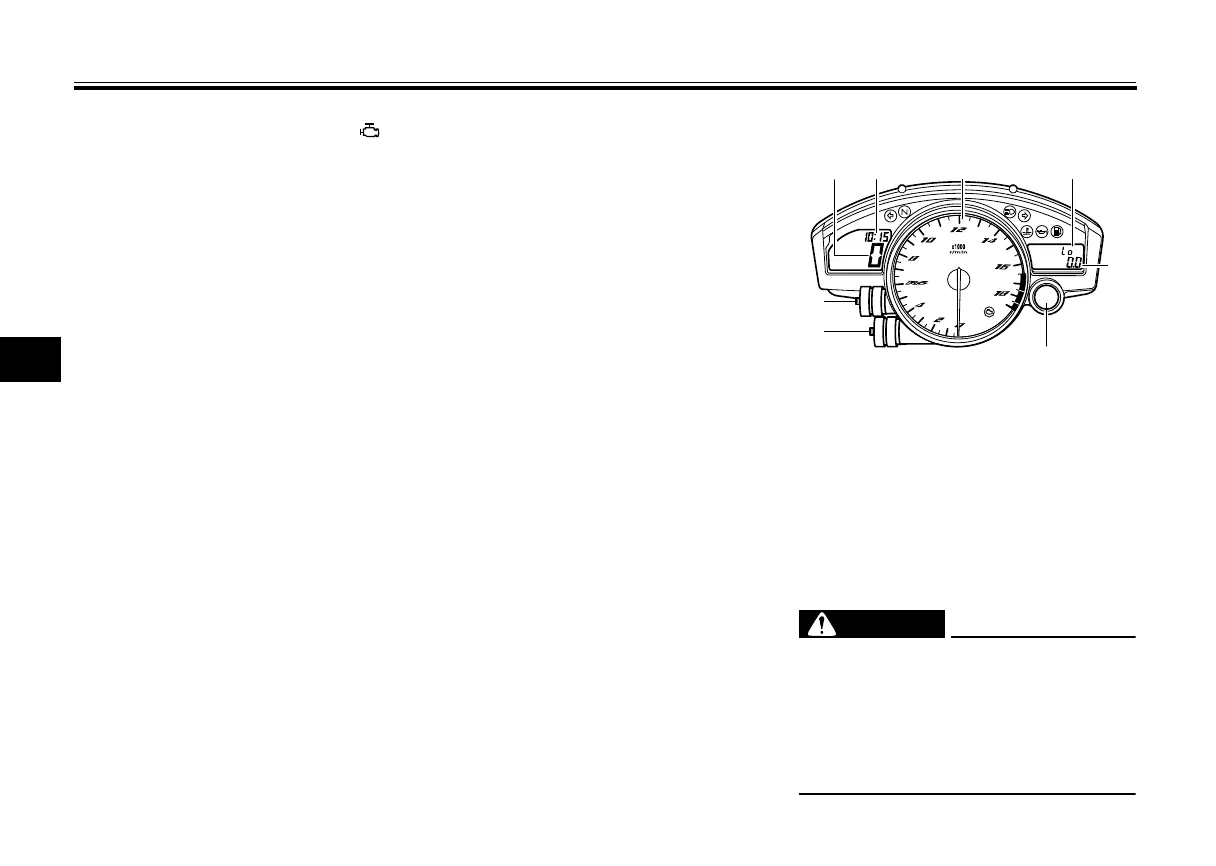

Multi-function meter unit
EWA12422
Be sure to stop the vehicle before
making any setting changes to the
multi-function meter unit. Changing
settings while riding can distract the
operator and increase the risk of an
accident.
1. Speedometer
2. Clock
3. Tachometer
4. Coolant temperature display/air intake tem-
perature display
5. Odometer/tripmeter/fuel reserve tripme-
ter/stopwatch
6. Shift timing indicator light
7. “RESET” button
8. “SELECT” button
TRIP A
˚F
MPH
SELECT
RESET
2143
5
8
7
6
U1JS11E0.book Page 5 Tuesday, August 2, 2011 3:03 PM
