INSTRUMENT AND CONTROL FUNCTIONS
4-17
4
Passenger seat
To remove the passenger seat
1. Insert the key into the seat lock,
and then turn it clockwise.
2. While holding the key in that posi-
tion, lift the front of the passenger
seat and pull it forward.
To install the passenger seat
1. Insert the projections on the pas-
senger seat into the seat holders
as shown, and then push the front
of the seat down to lock it in place.
2. Remove the key.
Make sure that the seats are properly
secured before riding.
EAU39073
Helmet holding cable
A helmet holding cable is provided in
the owner’s tool kit to secure two hel-
mets to the helmet cable holder
equipped on the bottom of the passen-
ger seat.
To secure a helmet with the helmet
holding cable
1. Remove the passenger seat. (See
page 4-16.)
2. Clip the middle snap hook of the
cable onto the cable holder.

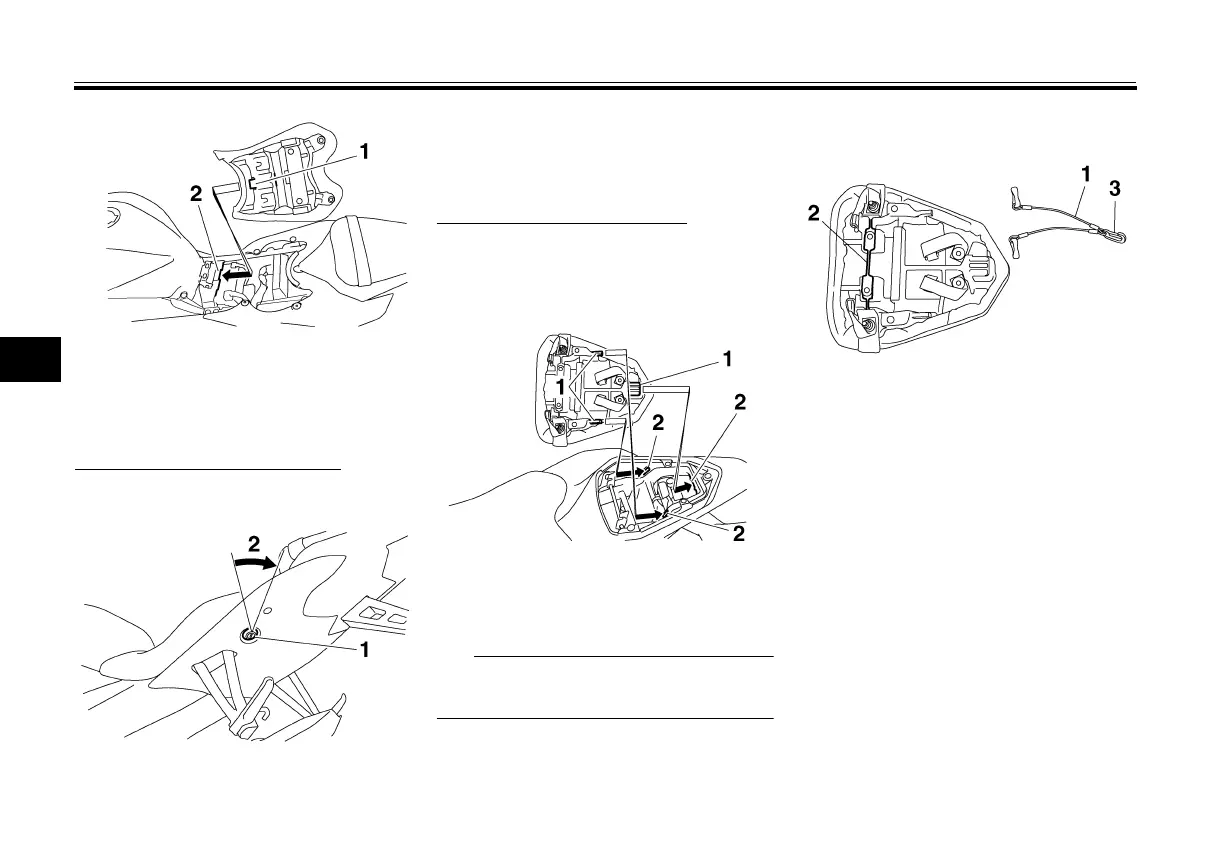

1. Projection
2. Seat holder
1. Seat lock
2. Unlock.
1. Projection
2. Seat holder
1. Helmet holding cable
2. Helmet cable holder
3. Middle snap hook
