PERIODIC MAINTENANCE AND ADJUSTMENT
7-9
7
EAU18712
Removing and installing cowl-
ings and panels

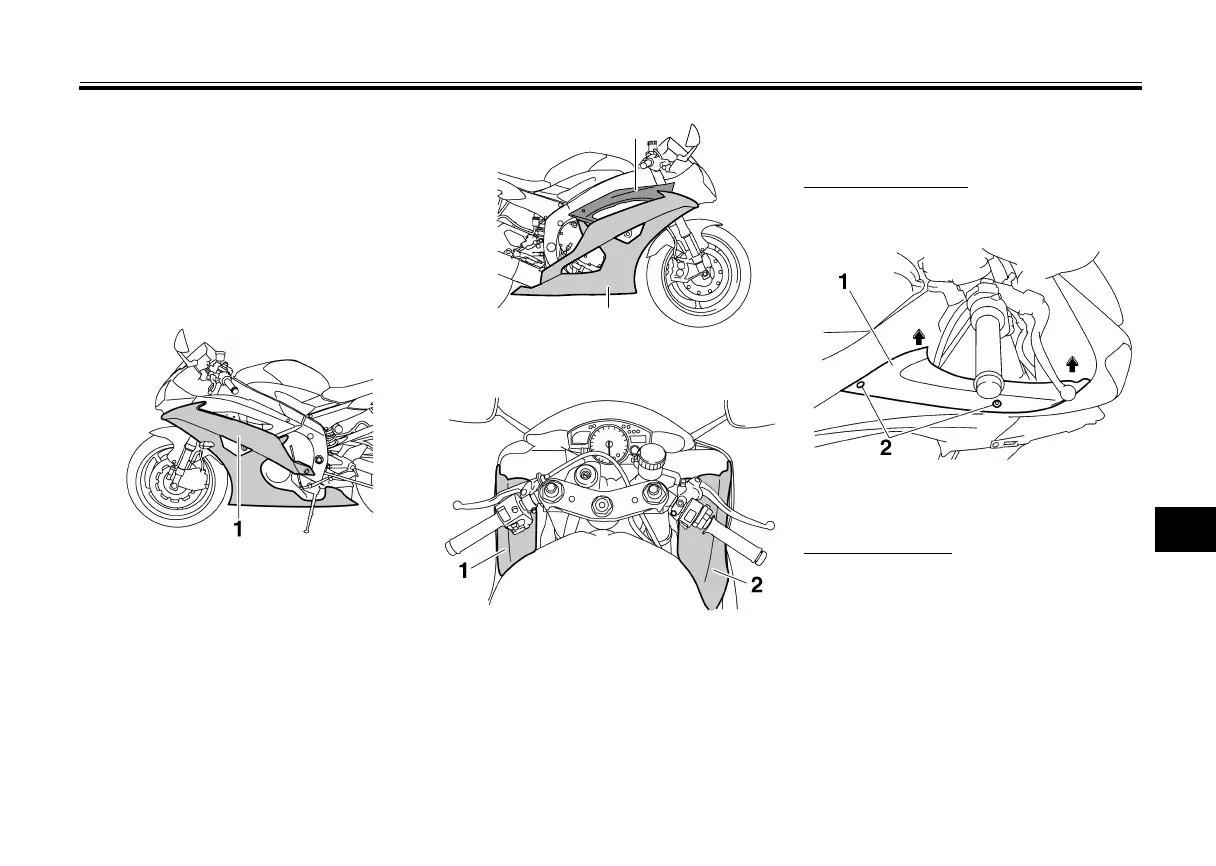

The cowlings and panels shown need
to be removed to perform some of the
maintenance jobs described in this
chapter. Refer to this section each time
a cowling or panel needs to be re-
moved and installed.
EAU39062
Panels A and B
To remove a panel
Remove the bolts, and then pull the
panel off as shown.
To install a panel
Place the panel in the original position,
and then install the bolts.
1. Cowling A
1. Cowling B
2. Cowling C
1. Panel A
2. Panel B
1. Panel B
2. Bolt
